欧拉路径 是图中的一条路径，每条边只访问一次。欧拉回路是在同一顶点上开始和结束的欧拉路径。
null
如果一个图有一个欧拉循环，那么它就是欧拉图。我们讨论过 无向图的欧拉回路 .在这篇文章中，对于有向图也讨论了同样的问题。

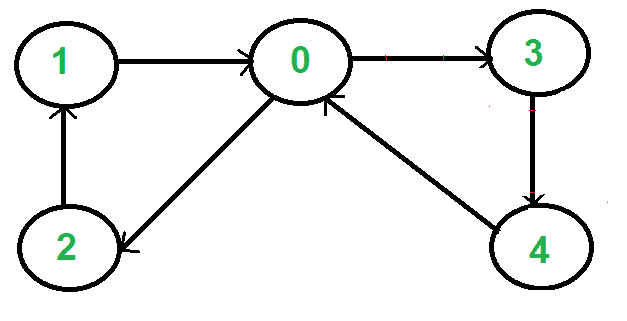

例如，下图中的欧拉循环为{1,0,3,4,0,2,1}
如何检查有向图是否是欧拉图？ 如果下列条件成立，则有向图具有欧拉循环（来源： 维基 ) 1） 所有非零度的顶点都属于一个 强连通分量 . 2） In degree等于每个顶点的out degree。
我们可以使用 Kosaraju基于DFS的简单算法 .
为了比较入度和出度，我们需要存储每个顶点的入度和出度。出度可以通过邻接列表的大小来获得。可以通过创建一个大小等于顶点数的数组来存储度。
以下是上述方法的实现。
C++
// A C++ program to check if a given directed graph is Eulerian or not #include<iostream> #include <list> #define CHARS 26 using namespace std; // A class that represents an undirected graph class Graph { int V; // No. of vertices list< int > *adj; // A dynamic array of adjacency lists int *in; public : // Constructor and destructor Graph( int V); ~Graph() { delete [] adj; delete [] in; } // function to add an edge to graph void addEdge( int v, int w) { adj[v].push_back(w); (in[w])++; } // Method to check if this graph is Eulerian or not bool isEulerianCycle(); // Method to check if all non-zero degree vertices are connected bool isSC(); // Function to do DFS starting from v. Used in isConnected(); void DFSUtil( int v, bool visited[]); Graph getTranspose(); }; Graph::Graph( int V) { this ->V = V; adj = new list< int >[V]; in = new int [V]; for ( int i = 0; i < V; i++) in[i] = 0; } /* This function returns true if the directed graph has a eulerian cycle, otherwise returns false */ bool Graph::isEulerianCycle() { // Check if all non-zero degree vertices are connected if (isSC() == false ) return false ; // Check if in degree and out degree of every vertex is same for ( int i = 0; i < V; i++) if (adj[i].size() != in[i]) return false ; return true ; } // A recursive function to do DFS starting from v void Graph::DFSUtil( int v, bool visited[]) { // Mark the current node as visited and print it visited[v] = true ; // Recur for all the vertices adjacent to this vertex list< int >::iterator i; for (i = adj[v].begin(); i != adj[v].end(); ++i) if (!visited[*i]) DFSUtil(*i, visited); } // Function that returns reverse (or transpose) of this graph // This function is needed in isSC() Graph Graph::getTranspose() { Graph g(V); for ( int v = 0; v < V; v++) { // Recur for all the vertices adjacent to this vertex list< int >::iterator i; for (i = adj[v].begin(); i != adj[v].end(); ++i) { g.adj[*i].push_back(v); (g.in[v])++; } } return g; } // This function returns true if all non-zero degree vertices of // graph are strongly connected (Please refer bool Graph::isSC() { // Mark all the vertices as not visited (For first DFS) bool visited[V]; for ( int i = 0; i < V; i++) visited[i] = false ; // Find the first vertex with non-zero degree int n; for (n = 0; n < V; n++) if (adj[n].size() > 0) break ; // Do DFS traversal starting from first non zero degrees vertex. DFSUtil(n, visited); // If DFS traversal doesn't visit all vertices, then return false. for ( int i = 0; i < V; i++) if (adj[i].size() > 0 && visited[i] == false ) return false ; // Create a reversed graph Graph gr = getTranspose(); // Mark all the vertices as not visited (For second DFS) for ( int i = 0; i < V; i++) visited[i] = false ; // Do DFS for reversed graph starting from first vertex. // Starting Vertex must be same starting point of first DFS gr.DFSUtil(n, visited); // If all vertices are not visited in second DFS, then // return false for ( int i = 0; i < V; i++) if (adj[i].size() > 0 && visited[i] == false ) return false ; return true ; } // Driver program to test above functions int main() { // Create a graph given in the above diagram Graph g(5); g.addEdge(1, 0); g.addEdge(0, 2); g.addEdge(2, 1); g.addEdge(0, 3); g.addEdge(3, 4); g.addEdge(4, 0); if (g.isEulerianCycle()) cout << "Given directed graph is eulerian n" ; else cout << "Given directed graph is NOT eulerian n" ; return 0; } |
JAVA
// A Java program to check if a given directed graph is Eulerian or not // A class that represents an undirected graph import java.io.*; import java.util.*; import java.util.LinkedList; // This class represents a directed graph using adjacency list class Graph { private int V; // No. of vertices private LinkedList<Integer> adj[]; //Adjacency List private int in[]; //maintaining in degree //Constructor Graph( int v) { V = v; adj = new LinkedList[v]; in = new int [V]; for ( int i= 0 ; i<v; ++i) { adj[i] = new LinkedList(); in[i] = 0 ; } } //Function to add an edge into the graph void addEdge( int v, int w) { adj[v].add(w); in[w]++; } // A recursive function to print DFS starting from v void DFSUtil( int v,Boolean visited[]) { // Mark the current node as visited visited[v] = true ; int n; // Recur for all the vertices adjacent to this vertex Iterator<Integer> i =adj[v].iterator(); while (i.hasNext()) { n = i.next(); if (!visited[n]) DFSUtil(n,visited); } } // Function that returns reverse (or transpose) of this graph Graph getTranspose() { Graph g = new Graph(V); for ( int v = 0 ; v < V; v++) { // Recur for all the vertices adjacent to this vertex Iterator<Integer> i = adj[v].listIterator(); while (i.hasNext()) { g.adj[i.next()].add(v); (g.in[v])++; } } return g; } // The main function that returns true if graph is strongly // connected Boolean isSC() { // Step 1: Mark all the vertices as not visited (For // first DFS) Boolean visited[] = new Boolean[V]; for ( int i = 0 ; i < V; i++) visited[i] = false ; // Step 2: Do DFS traversal starting from the first vertex. DFSUtil( 0 , visited); // If DFS traversal doesn't visit all vertices, then return false. for ( int i = 0 ; i < V; i++) if (visited[i] == false ) return false ; // Step 3: Create a reversed graph Graph gr = getTranspose(); // Step 4: Mark all the vertices as not visited (For second DFS) for ( int i = 0 ; i < V; i++) visited[i] = false ; // Step 5: Do DFS for reversed graph starting from first vertex. // Starting Vertex must be same starting point of first DFS gr.DFSUtil( 0 , visited); // If all vertices are not visited in second DFS, then // return false for ( int i = 0 ; i < V; i++) if (visited[i] == false ) return false ; return true ; } /* This function returns true if the directed graph has a eulerian cycle, otherwise returns false */ Boolean isEulerianCycle() { // Check if all non-zero degree vertices are connected if (isSC() == false ) return false ; // Check if in degree and out degree of every vertex is same for ( int i = 0 ; i < V; i++) if (adj[i].size() != in[i]) return false ; return true ; } public static void main (String[] args) throws java.lang.Exception { Graph g = new Graph( 5 ); g.addEdge( 1 , 0 ); g.addEdge( 0 , 2 ); g.addEdge( 2 , 1 ); g.addEdge( 0 , 3 ); g.addEdge( 3 , 4 ); g.addEdge( 4 , 0 ); if (g.isEulerianCycle()) System.out.println( "Given directed graph is eulerian " ); else System.out.println( "Given directed graph is NOT eulerian " ); } } //This code is contributed by Aakash Hasija |
Python3
# A Python3 program to check if a given # directed graph is Eulerian or not from collections import defaultdict class Graph(): def __init__( self , vertices): self .V = vertices self .graph = defaultdict( list ) self .IN = [ 0 ] * vertices def addEdge( self , v, u): self .graph[v].append(u) self .IN[u] + = 1 def DFSUtil( self , v, visited): visited[v] = True for node in self .graph[v]: if visited[node] = = False : self .DFSUtil(node, visited) def getTranspose( self ): gr = Graph( self .V) for node in range ( self .V): for child in self .graph[node]: gr.addEdge(child, node) return gr def isSC( self ): visited = [ False ] * self .V v = 0 for v in range ( self .V): if len ( self .graph[v]) > 0 : break self .DFSUtil(v, visited) # If DFS traversal doesn't visit all # vertices, then return false. for i in range ( self .V): if visited[i] = = False : return False gr = self .getTranspose() visited = [ False ] * self .V gr.DFSUtil(v, visited) for i in range ( self .V): if visited[i] = = False : return False return True def isEulerianCycle( self ): # Check if all non-zero degree vertices # are connected if self .isSC() = = False : return False # Check if in degree and out degree of # every vertex is same for v in range ( self .V): if len ( self .graph[v]) ! = self .IN[v]: return False return True g = Graph( 5 ); g.addEdge( 1 , 0 ); g.addEdge( 0 , 2 ); g.addEdge( 2 , 1 ); g.addEdge( 0 , 3 ); g.addEdge( 3 , 4 ); g.addEdge( 4 , 0 ); if g.isEulerianCycle(): print ( "Given directed graph is eulerian" ); else : print ( "Given directed graph is NOT eulerian" ); # This code is contributed by Divyanshu Mehta |
C#
// A C# program to check if a given // directed graph is Eulerian or not // A class that represents an // undirected graph using System; using System.Collections.Generic; // This class represents a directed // graph using adjacency list class Graph{ // No. of vertices public int V; // Adjacency List public List< int > []adj; // Maintaining in degree public int []init; // Constructor Graph( int v) { V = v; adj = new List< int >[v]; init = new int [V]; for ( int i = 0; i < v; ++i) { adj[i] = new List< int >(); init[i] = 0; } } // Function to add an edge into the graph void addEdge( int v, int w) { adj[v].Add(w); init[w]++; } // A recursive function to print DFS // starting from v void DFSUtil( int v, Boolean []visited) { // Mark the current node as visited visited[v] = true ; // Recur for all the vertices // adjacent to this vertex foreach ( int i in adj[v]) { if (!visited[i]) DFSUtil(i, visited); } } // Function that returns reverse // (or transpose) of this graph Graph getTranspose() { Graph g = new Graph(V); for ( int v = 0; v < V; v++) { // Recur for all the vertices // adjacent to this vertex foreach ( int i in adj[v]) { g.adj[i].Add(v); (g.init[v])++; } } return g; } // The main function that returns // true if graph is strongly connected Boolean isSC() { // Step 1: Mark all the vertices // as not visited (For first DFS) Boolean []visited = new Boolean[V]; for ( int i = 0; i < V; i++) visited[i] = false ; // Step 2: Do DFS traversal starting // from the first vertex. DFSUtil(0, visited); // If DFS traversal doesn't visit // all vertices, then return false. for ( int i = 0; i < V; i++) if (visited[i] == false ) return false ; // Step 3: Create a reversed graph Graph gr = getTranspose(); // Step 4: Mark all the vertices as // not visited (For second DFS) for ( int i = 0; i < V; i++) visited[i] = false ; // Step 5: Do DFS for reversed graph // starting from first vertex. // Staring Vertex must be same // starting point of first DFS gr.DFSUtil(0, visited); // If all vertices are not visited // in second DFS, then return false for ( int i = 0; i < V; i++) if (visited[i] == false ) return false ; return true ; } // This function returns true if the // directed graph has a eulerian // cycle, otherwise returns false Boolean isEulerianCycle() { // Check if all non-zero degree // vertices are connected if (isSC() == false ) return false ; // Check if in degree and out // degree of every vertex is same for ( int i = 0; i < V; i++) if (adj[i].Count != init[i]) return false ; return true ; } // Driver code public static void Main(String[] args) { Graph g = new Graph(5); g.addEdge(1, 0); g.addEdge(0, 2); g.addEdge(2, 1); g.addEdge(0, 3); g.addEdge(3, 4); g.addEdge(4, 0); if (g.isEulerianCycle()) Console.WriteLine( "Given directed " + "graph is eulerian " ); else Console.WriteLine( "Given directed " + "graph is NOT eulerian " ); } } // This code is contributed by Princi Singh |
Javascript
<script> // A Javascript program to check if a given directed graph is Eulerian or not // This class represents a directed graph using adjacency // list representation class Graph { // Constructor constructor(v) { this .V = v; this .adj = new Array(v); this . in = new Array(v); for (let i=0; i<v; ++i) { this .adj[i] = []; this . in [i]=0; } } //Function to add an edge into the graph addEdge(v,w) { this .adj[v].push(w); this . in [w]++; } // A recursive function to print DFS starting from v DFSUtil(v,visited) { // Mark the current node as visited visited[v] = true ; let n; // Recur for all the vertices adjacent to this vertex for (let i of this .adj[v]) { n = i; if (!visited[n]) this .DFSUtil(n,visited); } } // Function that returns reverse (or transpose) of this graph getTranspose() { let g = new Graph( this .V); for (let v = 0; v < this .V; v++) { // Recur for all the vertices adjacent to this vertex for (let i of this .adj[v]) { g.adj[i].push(v); (g. in [v])++; } } return g; } // The main function that returns true if graph is strongly // connected isSC() { // Step 1: Mark all the vertices as not visited (For // first DFS) let visited = new Array( this .V); for (let i = 0; i < this .V; i++) visited[i] = false ; // Step 2: Do DFS traversal starting from the first vertex. this .DFSUtil(0, visited); // If DFS traversal doesn't visit all vertices, then return false. for (let i = 0; i < this .V; i++) if (visited[i] == false ) return false ; // Step 3: Create a reversed graph let gr = this .getTranspose(); // Step 4: Mark all the vertices as not visited (For second DFS) for (let i = 0; i < this .V; i++) visited[i] = false ; // Step 5: Do DFS for reversed graph starting from first vertex. // Starting Vertex must be same starting point of first DFS gr.DFSUtil(0, visited); // If all vertices are not visited in second DFS, then // return false for (let i = 0; i < this .V; i++) if (visited[i] == false ) return false ; return true ; } /* This function returns true if the directed graph has a eulerian cycle, otherwise returns false */ isEulerianCycle() { // Check if all non-zero degree vertices are connected if ( this .isSC() == false ) return false ; // Check if in degree and out degree of every vertex is same for (let i = 0; i < this .V; i++) if ( this .adj[i].length != this . in [i]) return false ; return true ; } } let g = new Graph(5); g.addEdge(1, 0); g.addEdge(0, 2); g.addEdge(2, 1); g.addEdge(0, 3); g.addEdge(3, 4); g.addEdge(4, 0); if (g.isEulerianCycle()) document.write( "Given directed graph is eulerian " ); else document.write( "Given directed graph is NOT eulerian " ); // This code is contributed by avanitrachhadiya2155 </script> |
输出：
Given directed graph is eulerian
上述实现的时间复杂度为O（V+E） Kosaraju算法 需要O（V+E）时间。跑步后 Kosaraju算法 我们遍历所有顶点，比较入度和出度，这需要O（V）时间。
请参见下面的应用程序。 找出给定的字符串数组是否可以链接成一个圆 .
如果您发现任何不正确的地方，或者您想分享有关上述主题的更多信息，请写下评论。
