A. 双连通元件 是最大的 双连接 子图 . 双连通图 已经讨论过了 在这里 .在本文中，我们将了解如何找到 双连通元件 在一个使用约翰·霍普克罗夫特和罗伯特·塔扬算法的图中。
null

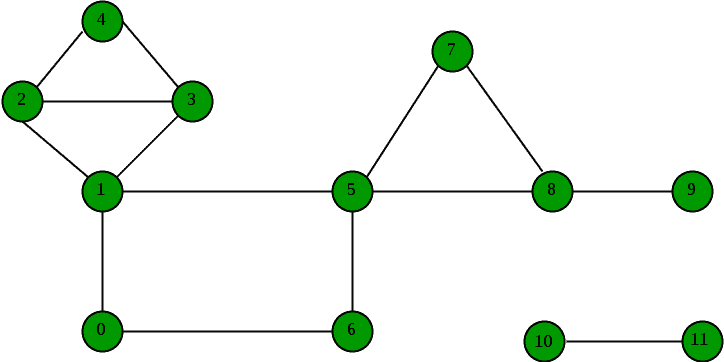

在上图中，以下是双连接组件：
- 4–2 3–4 3–1 2–3 1–2
- 8–9
- 8–5 7–8 5–7
- 6–0 5–6 1–5 0–1
- 10–11
算法基于中讨论的Disc和低值 强连通分量 文章 其想法是将访问的边存储在堆栈中，而DFS则存储在图形上，并继续查找 关节点 （上图中突出显示）。一旦 关节点 如果找到u，则访问所有边，而从节点u开始的DFS将形成一条边 双连通元件 。当DFS完成一次 连通元件 ，堆栈中的所有边将形成一个双连接组件。 如果没有 关节点 在图中，那么图是双连通的，所以会有一个双连通的组件，即图本身。
C++
// A C++ program to find biconnected components in a given undirected graph #include <iostream> #include <list> #include <stack> #define NIL -1 using namespace std; int count = 0; class Edge { public : int u; int v; Edge( int u, int v); }; Edge::Edge( int u, int v) { this ->u = u; this ->v = v; } // A class that represents an directed graph class Graph { int V; // No. of vertices int E; // No. of edges list< int >* adj; // A dynamic array of adjacency lists // A Recursive DFS based function used by BCC() void BCCUtil( int u, int disc[], int low[], list<Edge>* st, int parent[]); public : Graph( int V); // Constructor void addEdge( int v, int w); // function to add an edge to graph void BCC(); // prints strongly connected components }; Graph::Graph( int V) { this ->V = V; this ->E = 0; adj = new list< int >[V]; } void Graph::addEdge( int v, int w) { adj[v].push_back(w); E++; } // A recursive function that finds and prints strongly connected // components using DFS traversal // u --> The vertex to be visited next // disc[] --> Stores discovery times of visited vertices // low[] -- >> earliest visited vertex (the vertex with minimum // discovery time) that can be reached from subtree // rooted with current vertex // *st -- >> To store visited edges void Graph::BCCUtil( int u, int disc[], int low[], list<Edge>* st, int parent[]) { // A static variable is used for simplicity, we can avoid use // of static variable by passing a pointer. static int time = 0; // Initialize discovery time and low value disc[u] = low[u] = ++ time ; int children = 0; // Go through all vertices adjacent to this list< int >::iterator i; for (i = adj[u].begin(); i != adj[u].end(); ++i) { int v = *i; // v is current adjacent of 'u' // If v is not visited yet, then recur for it if (disc[v] == -1) { children++; parent[v] = u; // store the edge in stack st->push_back(Edge(u, v)); BCCUtil(v, disc, low, st, parent); // Check if the subtree rooted with 'v' has a // connection to one of the ancestors of 'u' // Case 1 -- per Strongly Connected Components Article low[u] = min(low[u], low[v]); // If u is an articulation point, // pop all edges from stack till u -- v if ((disc[u] == 1 && children > 1) || (disc[u] > 1 && low[v] >= disc[u])) { while (st->back().u != u || st->back().v != v) { cout << st->back().u << "--" << st->back().v << " " ; st->pop_back(); } cout << st->back().u << "--" << st->back().v; st->pop_back(); cout << endl; count++; } } // Update low value of 'u' only of 'v' is still in stack // (i.e. it's a back edge, not cross edge). // Case 2 -- per Strongly Connected Components Article else if (v != parent[u]) { low[u] = min(low[u], disc[v]); if (disc[v] < disc[u]) { st->push_back(Edge(u, v)); } } } } // The function to do DFS traversal. It uses BCCUtil() void Graph::BCC() { int * disc = new int [V]; int * low = new int [V]; int * parent = new int [V]; list<Edge>* st = new list<Edge>[E]; // Initialize disc and low, and parent arrays for ( int i = 0; i < V; i++) { disc[i] = NIL; low[i] = NIL; parent[i] = NIL; } for ( int i = 0; i < V; i++) { if (disc[i] == NIL) BCCUtil(i, disc, low, st, parent); int j = 0; // If stack is not empty, pop all edges from stack while (st->size() > 0) { j = 1; cout << st->back().u << "--" << st->back().v << " " ; st->pop_back(); } if (j == 1) { cout << endl; count++; } } } // Driver program to test above function int main() { Graph g(12); g.addEdge(0, 1); g.addEdge(1, 0); g.addEdge(1, 2); g.addEdge(2, 1); g.addEdge(1, 3); g.addEdge(3, 1); g.addEdge(2, 3); g.addEdge(3, 2); g.addEdge(2, 4); g.addEdge(4, 2); g.addEdge(3, 4); g.addEdge(4, 3); g.addEdge(1, 5); g.addEdge(5, 1); g.addEdge(0, 6); g.addEdge(6, 0); g.addEdge(5, 6); g.addEdge(6, 5); g.addEdge(5, 7); g.addEdge(7, 5); g.addEdge(5, 8); g.addEdge(8, 5); g.addEdge(7, 8); g.addEdge(8, 7); g.addEdge(8, 9); g.addEdge(9, 8); g.addEdge(10, 11); g.addEdge(11, 10); g.BCC(); cout << "Above are " << count << " biconnected components in graph" ; return 0; } |
JAVA
// A Java program to find biconnected components in a given // undirected graph import java.io.*; import java.util.*; // This class represents a directed graph using adjacency // list representation class Graph { private int V, E; // No. of vertices & Edges respectively private LinkedList<Integer> adj[]; // Adjacency List // Count is number of biconnected components. time is // used to find discovery times static int count = 0 , time = 0 ; class Edge { int u; int v; Edge( int u, int v) { this .u = u; this .v = v; } }; // Constructor Graph( int v) { V = v; E = 0 ; adj = new LinkedList[v]; for ( int i = 0 ; i < v; ++i) adj[i] = new LinkedList(); } // Function to add an edge into the graph void addEdge( int v, int w) { adj[v].add(w); E++; } // A recursive function that finds and prints strongly connected // components using DFS traversal // u --> The vertex to be visited next // disc[] --> Stores discovery times of visited vertices // low[] -- >> earliest visited vertex (the vertex with minimum // discovery time) that can be reached from subtree // rooted with current vertex // *st -- >> To store visited edges void BCCUtil( int u, int disc[], int low[], LinkedList<Edge> st, int parent[]) { // Initialize discovery time and low value disc[u] = low[u] = ++time; int children = 0 ; // Go through all vertices adjacent to this Iterator<Integer> it = adj[u].iterator(); while (it.hasNext()) { int v = it.next(); // v is current adjacent of 'u' // If v is not visited yet, then recur for it if (disc[v] == - 1 ) { children++; parent[v] = u; // store the edge in stack st.add( new Edge(u, v)); BCCUtil(v, disc, low, st, parent); // Check if the subtree rooted with 'v' has a // connection to one of the ancestors of 'u' // Case 1 -- per Strongly Connected Components Article if (low[u] > low[v]) low[u] = low[v]; // If u is an articulation point, // pop all edges from stack till u -- v if ((disc[u] == 1 && children > 1 ) || (disc[u] > 1 && low[v] >= disc[u])) { while (st.getLast().u != u || st.getLast().v != v) { System.out.print(st.getLast().u + "--" + st.getLast().v + " " ); st.removeLast(); } System.out.println(st.getLast().u + "--" + st.getLast().v + " " ); st.removeLast(); count++; } } // Update low value of 'u' only if 'v' is still in stack // (i.e. it's a back edge, not cross edge). // Case 2 -- per Strongly Connected Components Article else if (v != parent[u] && disc[v] < disc[u] ) { if (low[u] > disc[v]) low[u] = disc[v]; st.add( new Edge(u, v)); } } } // The function to do DFS traversal. It uses BCCUtil() void BCC() { int disc[] = new int [V]; int low[] = new int [V]; int parent[] = new int [V]; LinkedList<Edge> st = new LinkedList<Edge>(); // Initialize disc and low, and parent arrays for ( int i = 0 ; i < V; i++) { disc[i] = - 1 ; low[i] = - 1 ; parent[i] = - 1 ; } for ( int i = 0 ; i < V; i++) { if (disc[i] == - 1 ) BCCUtil(i, disc, low, st, parent); int j = 0 ; // If stack is not empty, pop all edges from stack while (st.size() > 0 ) { j = 1 ; System.out.print(st.getLast().u + "--" + st.getLast().v + " " ); st.removeLast(); } if (j == 1 ) { System.out.println(); count++; } } } public static void main(String args[]) { Graph g = new Graph( 12 ); g.addEdge( 0 , 1 ); g.addEdge( 1 , 0 ); g.addEdge( 1 , 2 ); g.addEdge( 2 , 1 ); g.addEdge( 1 , 3 ); g.addEdge( 3 , 1 ); g.addEdge( 2 , 3 ); g.addEdge( 3 , 2 ); g.addEdge( 2 , 4 ); g.addEdge( 4 , 2 ); g.addEdge( 3 , 4 ); g.addEdge( 4 , 3 ); g.addEdge( 1 , 5 ); g.addEdge( 5 , 1 ); g.addEdge( 0 , 6 ); g.addEdge( 6 , 0 ); g.addEdge( 5 , 6 ); g.addEdge( 6 , 5 ); g.addEdge( 5 , 7 ); g.addEdge( 7 , 5 ); g.addEdge( 5 , 8 ); g.addEdge( 8 , 5 ); g.addEdge( 7 , 8 ); g.addEdge( 8 , 7 ); g.addEdge( 8 , 9 ); g.addEdge( 9 , 8 ); g.addEdge( 10 , 11 ); g.addEdge( 11 , 10 ); g.BCC(); System.out.println( "Above are " + g.count + " biconnected components in graph" ); } } // This code is contributed by Aakash Hasija |
Python3
# Python program to find biconnected components in a given # undirected graph # Complexity : O(V + E) from collections import defaultdict # This class represents an directed graph # using adjacency list representation class Graph: def __init__( self , vertices): # No. of vertices self .V = vertices # default dictionary to store graph self .graph = defaultdict( list ) # time is used to find discovery times self .Time = 0 # Count is number of biconnected components self .count = 0 # function to add an edge to graph def addEdge( self , u, v): self .graph[u].append(v) self .graph[v].append(u) '''A recursive function that finds and prints strongly connected components using DFS traversal u --> The vertex to be visited next disc[] --> Stores discovery times of visited vertices low[] -- >> earliest visited vertex (the vertex with minimum discovery time) that can be reached from subtree rooted with current vertex st -- >> To store visited edges''' def BCCUtil( self , u, parent, low, disc, st): # Count of children in current node children = 0 # Initialize discovery time and low value disc[u] = self .Time low[u] = self .Time self .Time + = 1 # Recur for all the vertices adjacent to this vertex for v in self .graph[u]: # If v is not visited yet, then make it a child of u # in DFS tree and recur for it if disc[v] = = - 1 : parent[v] = u children + = 1 st.append((u, v)) # store the edge in stack self .BCCUtil(v, parent, low, disc, st) # Check if the subtree rooted with v has a connection to # one of the ancestors of u # Case 1 -- per Strongly Connected Components Article low[u] = min (low[u], low[v]) # If u is an articulation point, pop # all edges from stack till (u, v) if parent[u] = = - 1 and children > 1 or parent[u] ! = - 1 and low[v] > = disc[u]: self .count + = 1 # increment count w = - 1 while w ! = (u, v): w = st.pop() print (w,end = " " ) print () elif v ! = parent[u] and low[u] > disc[v]: '''Update low value of 'u' only of 'v' is still in stack (i.e. it's a back edge, not cross edge). Case 2 -- per Strongly Connected Components Article''' low[u] = min (low [u], disc[v]) st.append((u, v)) # The function to do DFS traversal. # It uses recursive BCCUtil() def BCC( self ): # Initialize disc and low, and parent arrays disc = [ - 1 ] * ( self .V) low = [ - 1 ] * ( self .V) parent = [ - 1 ] * ( self .V) st = [] # Call the recursive helper function to # find articulation points # in DFS tree rooted with vertex 'i' for i in range ( self .V): if disc[i] = = - 1 : self .BCCUtil(i, parent, low, disc, st) # If stack is not empty, pop all edges from stack if st: self .count = self .count + 1 while st: w = st.pop() print (w,end = " " ) print () # Create a graph given in the above diagram g = Graph( 12 ) g.addEdge( 0 , 1 ) g.addEdge( 1 , 2 ) g.addEdge( 1 , 3 ) g.addEdge( 2 , 3 ) g.addEdge( 2 , 4 ) g.addEdge( 3 , 4 ) g.addEdge( 1 , 5 ) g.addEdge( 0 , 6 ) g.addEdge( 5 , 6 ) g.addEdge( 5 , 7 ) g.addEdge( 5 , 8 ) g.addEdge( 7 , 8 ) g.addEdge( 8 , 9 ) g.addEdge( 10 , 11 ) g.BCC(); print ( "Above are % d biconnected components in graph" % (g.count)); # This code is contributed by Neelam Yadav |
C#
// A C# program to find biconnected components in a given // undirected graph using System; using System.Collections.Generic; // This class represents a directed graph using adjacency // list representation public class Graph { private int V, E; // No. of vertices & Edges respectively private List< int > []adj; // Adjacency List // Count is number of biconnected components. time is // used to find discovery times int count = 0, time = 0; class Edge { public int u; public int v; public Edge( int u, int v) { this .u = u; this .v = v; } }; // Constructor public Graph( int v) { V = v; E = 0; adj = new List< int >[v]; for ( int i = 0; i < v; ++i) adj[i] = new List< int >(); } // Function to add an edge into the graph void addEdge( int v, int w) { adj[v].Add(w); E++; } // A recursive function that finds and prints strongly connected // components using DFS traversal // u --> The vertex to be visited next // disc[] --> Stores discovery times of visited vertices // low[] -- >> earliest visited vertex (the vertex with minimum // discovery time) that can be reached from subtree // rooted with current vertex // *st -- >> To store visited edges void BCCUtil( int u, int []disc, int []low, List<Edge> st, int []parent) { // Initialize discovery time and low value disc[u] = low[u] = ++time; int children = 0; // Go through all vertices adjacent to this foreach ( int it in adj[u]) { int v = it; // v is current adjacent of 'u' // If v is not visited yet, then recur for it if (disc[v] == -1) { children++; parent[v] = u; // store the edge in stack st.Add( new Edge(u, v)); BCCUtil(v, disc, low, st, parent); // Check if the subtree rooted with 'v' has a // connection to one of the ancestors of 'u' // Case 1 -- per Strongly Connected Components Article if (low[u] > low[v]) low[u] = low[v]; // If u is an articulation point, // pop all edges from stack till u -- v if ((disc[u] == 1 && children > 1) || (disc[u] > 1 && low[v] >= disc[u])) { while (st[st.Count-1].u != u || st[st.Count-1].v != v) { Console.Write(st[st.Count - 1].u + "--" + st[st.Count - 1].v + " " ); st.RemoveAt(st.Count - 1); } Console.WriteLine(st[st.Count - 1].u + "--" + st[st.Count - 1].v + " " ); st.RemoveAt(st.Count - 1); count++; } } // Update low value of 'u' only if 'v' is still in stack // (i.e. it's a back edge, not cross edge). // Case 2 -- per Strongly Connected Components Article else if (v != parent[u] && disc[v] < disc[u] ) { if (low[u] > disc[v]) low[u] = disc[v]; st.Add( new Edge(u, v)); } } } // The function to do DFS traversal. It uses BCCUtil() void BCC() { int []disc = new int [V]; int []low = new int [V]; int []parent = new int [V]; List<Edge> st = new List<Edge>(); // Initialize disc and low, and parent arrays for ( int i = 0; i < V; i++) { disc[i] = -1; low[i] = -1; parent[i] = -1; } for ( int i = 0; i < V; i++) { if (disc[i] == -1) BCCUtil(i, disc, low, st, parent); int j = 0; // If stack is not empty, pop all edges from stack while (st.Count > 0) { j = 1; Console.Write(st[st.Count - 1].u + "--" + st[st.Count - 1].v + " " ); st.RemoveAt(st.Count - 1); } if (j == 1) { Console.WriteLine(); count++; } } } // Driver code public static void Main(String []args) { Graph g = new Graph(12); g.addEdge(0, 1); g.addEdge(1, 0); g.addEdge(1, 2); g.addEdge(2, 1); g.addEdge(1, 3); g.addEdge(3, 1); g.addEdge(2, 3); g.addEdge(3, 2); g.addEdge(2, 4); g.addEdge(4, 2); g.addEdge(3, 4); g.addEdge(4, 3); g.addEdge(1, 5); g.addEdge(5, 1); g.addEdge(0, 6); g.addEdge(6, 0); g.addEdge(5, 6); g.addEdge(6, 5); g.addEdge(5, 7); g.addEdge(7, 5); g.addEdge(5, 8); g.addEdge(8, 5); g.addEdge(7, 8); g.addEdge(8, 7); g.addEdge(8, 9); g.addEdge(9, 8); g.addEdge(10, 11); g.addEdge(11, 10); g.BCC(); Console.WriteLine( "Above are " + g.count + " biconnected components in graph" ); } } // This code is contributed by PrinciRaj1992 |
Javascript
<script> // A Javascript program to find biconnected components in a given // undirected graph class Edge { constructor(u,v) { this .u = u; this .v = v; } } // This class represents a directed graph using adjacency // list representation class Graph { // Constructor constructor(v) { this .count=0; this .time = 0; this .V = v; this .E = 0; this .adj = new Array(v); for (let i = 0; i < v; ++i) this .adj[i] = []; } // Function to add an edge into the graph addEdge(v,w) { this .adj[v].push(w); this .E++; } // A recursive function that finds and prints strongly connected // components using DFS traversal // u --> The vertex to be visited next // disc[] --> Stores discovery times of visited vertices // low[] -- >> earliest visited vertex (the vertex with minimum // discovery time) that can be reached from subtree // rooted with current vertex // *st -- >> To store visited edges BCCUtil(u,disc,low,st,parent) { // Initialize discovery time and low value disc[u] = low[u] = ++ this .time; let children = 0; // Go through all vertices adjacent to this for (let it of this .adj[u].values()) { let v = it; // v is current adjacent of 'u' // If v is not visited yet, then recur for it if (disc[v] == -1) { children++; parent[v] = u; // store the edge in stack st.push( new Edge(u, v)); this .BCCUtil(v, disc, low, st, parent); // Check if the subtree rooted with 'v' has a // connection to one of the ancestors of 'u' // Case 1 -- per Strongly Connected Components Article if (low[u] > low[v]) low[u] = low[v]; // If u is an articulation point, // pop all edges from stack till u -- v if ((disc[u] == 1 && children > 1) || (disc[u] > 1 && low[v] >= disc[u])) { while (st[st.length-1].u != u || st[st.length-1].v != v) { document.write(st[st.length-1].u + "--" + st[st.length-1].v + " " ); st.pop(); } document.write(st[st.length-1].u + "--" + st[st.length-1].v + " <br>" ); st.pop(); this .count++; } } // Update low value of 'u' only if 'v' is still in stack // (i.e. it's a back edge, not cross edge). // Case 2 -- per Strongly Connected Components Article else if (v != parent[u] && disc[v] < disc[u] ) { if (low[u] > disc[v]) low[u] = disc[v]; st.push( new Edge(u, v)); } } } // The function to do DFS traversal. It uses BCCUtil() BCC() { let disc = new Array( this .V); let low = new Array( this .V); let parent = new Array( this .V); let st = []; // Initialize disc and low, and parent arrays for (let i = 0; i < this .V; i++) { disc[i] = -1; low[i] = -1; parent[i] = -1; } for (let i = 0; i < this .V; i++) { if (disc[i] == -1) this .BCCUtil(i, disc, low, st, parent); let j = 0; // If stack is not empty, pop all edges from stack while (st.length > 0) { j = 1; document.write(st[st.length-1].u + "--" + st[st.length-1].v + " " ); st.pop(); } if (j == 1) { document.write( "<br>" ); this .count++; } } } } let g = new Graph(12); g.addEdge(0, 1); g.addEdge(1, 0); g.addEdge(1, 2); g.addEdge(2, 1); g.addEdge(1, 3); g.addEdge(3, 1); g.addEdge(2, 3); g.addEdge(3, 2); g.addEdge(2, 4); g.addEdge(4, 2); g.addEdge(3, 4); g.addEdge(4, 3); g.addEdge(1, 5); g.addEdge(5, 1); g.addEdge(0, 6); g.addEdge(6, 0); g.addEdge(5, 6); g.addEdge(6, 5); g.addEdge(5, 7); g.addEdge(7, 5); g.addEdge(5, 8); g.addEdge(8, 5); g.addEdge(7, 8); g.addEdge(8, 7); g.addEdge(8, 9); g.addEdge(9, 8); g.addEdge(10, 11); g.addEdge(11, 10); g.BCC(); document.write( "Above are " + g.count + " biconnected components in graph" ); // This code is contributed by avanitrachhadiya2155 </script> |
输出：
4--2 3--4 3--1 2--3 1--28--98--5 7--8 5--76--0 5--6 1--5 0--1 10--11Above are 5 biconnected components in graph
本文由 导演 。如果您发现任何不正确的地方，或者您想分享有关上述主题的更多信息，请发表评论
