给定两棵二叉树。任务是编写一个程序来检查这两棵树的结构是否相同。
null
![图片[1]-检查两棵树的结构是否相同-yiteyi-C++库](https://www.yiteyi.com/wp-content/uploads/geeks/geeks_trees-having-similar-structure-1.jpg)

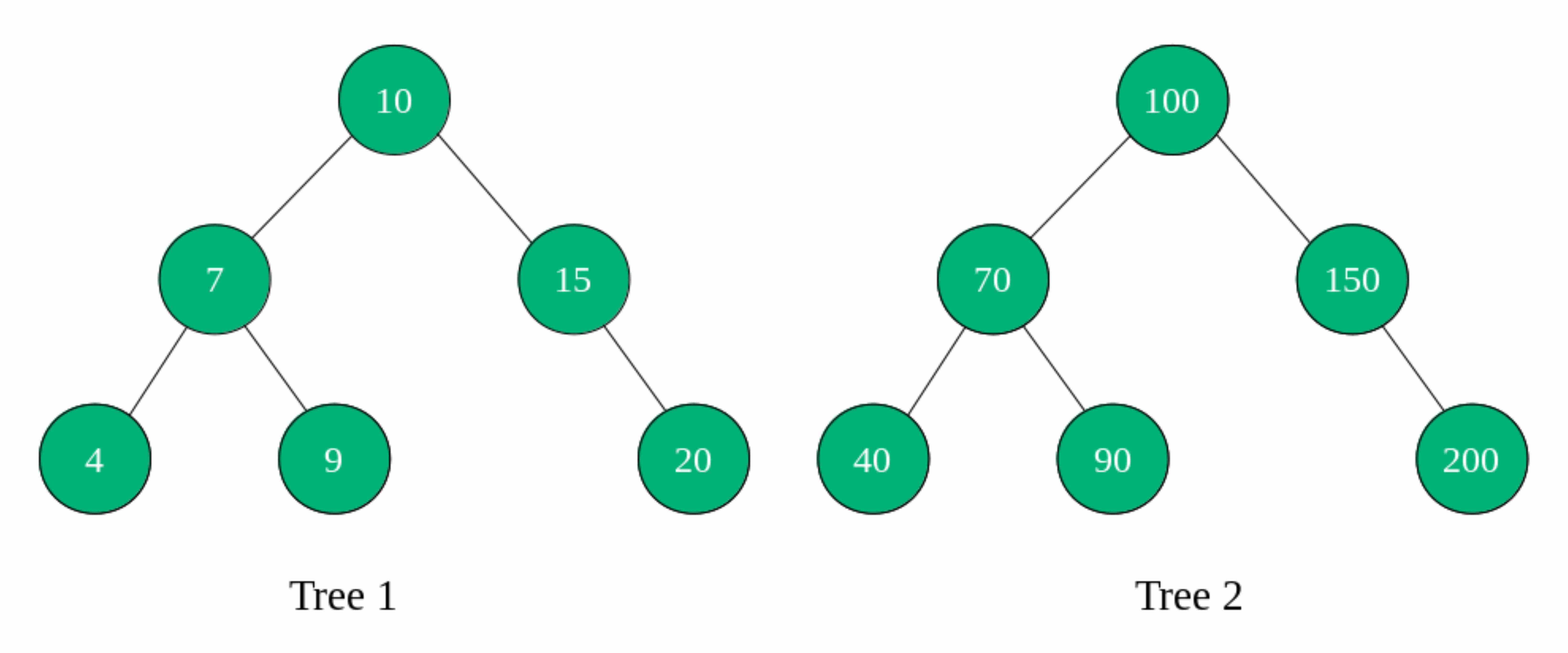

在上图中，树1和树2的结构相同。也就是说，它们具有相同的结构。 笔记 例句这个问题不同于 检查两棵树是否相同 在这里，我们只需要比较两棵树的结构，而不需要比较它们节点上的值。
其思想是沿着相同的路径同时遍历两棵树，并不断检查这两棵树是否存在节点。 算法 :
- 如果两棵树都是空的，则返回1。
- 否则，如果两棵树都不是空的：
- 递归检查左子树，即调用isSameStructure（tree1->left_子树，tree2->left_子树）
- 递归检查右子树，即调用isSameStructure（树1->右子树，树2->右子树）
- 如果在上述两个步骤中返回的值为真，则返回1。
- 否则返回0（一个为空，另一个不为空）。
下面是上述算法的实现：
C++
// C++ program to check if two trees have // same structure #include <iostream> using namespace std; // A binary tree node has data, pointer to left child // and a pointer to right child struct Node { int data; struct Node* left; struct Node* right; }; // Helper function that allocates a new node with the // given data and NULL left and right pointers. Node* newNode( int data) { Node* node = new Node; node->data = data; node->left = NULL; node->right = NULL; return (node); } // Function to check if two trees have same // structure int isSameStructure(Node* a, Node* b) { // 1. both empty if (a==NULL && b==NULL) return 1; // 2. both non-empty -> compare them if (a!=NULL && b!=NULL) { return ( isSameStructure(a->left, b->left) && isSameStructure(a->right, b->right) ); } // 3. one empty, one not -> false return 0; } // Driver code int main() { Node *root1 = newNode(10); Node *root2 = newNode(100); root1->left = newNode(7); root1->right = newNode(15); root1->left->left = newNode(4); root1->left->right = newNode(9); root1->right->right = newNode(20); root2->left = newNode(70); root2->right = newNode(150); root2->left->left = newNode(40); root2->left->right = newNode(90); root2->right->right = newNode(200); if (isSameStructure(root1, root2)) printf ( "Both trees have same structure" ); else printf ( "Trees do not have same structure" ); return 0; } |
JAVA
// Java program to check if two trees have // same structure class GFG { // A binary tree node has data, // pointer to left child and // a pointer to right child static class Node { int data; Node left; Node right; }; // Helper function that allocates a new node // with the given data and null left // and right pointers. static Node newNode( int data) { Node node = new Node(); node.data = data; node.left = null ; node.right = null ; return (node); } // Function to check if two trees // have same structure static boolean isSameStructure(Node a, Node b) { // 1. both empty if (a == null && b == null ) return true ; // 2. both non-empty . compare them if (a != null && b != null ) { return ( isSameStructure(a.left, b.left) && isSameStructure(a.right, b.right) ); } // 3. one empty, one not . false return false ; } // Driver code public static void main(String args[]) { Node root1 = newNode( 10 ); Node root2 = newNode( 100 ); root1.left = newNode( 7 ); root1.right = newNode( 15 ); root1.left.left = newNode( 4 ); root1.left.right = newNode( 9 ); root1.right.right = newNode( 20 ); root2.left = newNode( 70 ); root2.right = newNode( 150 ); root2.left.left = newNode( 40 ); root2.left.right = newNode( 90 ); root2.right.right = newNode( 200 ); if (isSameStructure(root1, root2)) System.out.printf( "Both trees have same structure" ); else System.out.printf( "Trees do not have same structure" ); } } // This code is contributed by Arnab Kundu |
Python3
# Python3 program to check if two trees have # same structure # A binary tree node has data, pointer to left child # and a pointer to right child class Node: def __init__( self , data): self .left = None self .right = None self .data = data # Helper function that allocates a new node with the # given data and None left and right pointers. def newNode(data): node = Node(data) return node # Function to check if two trees have same # structure def isSameStructure(a, b): # 1. both empty if (a = = None and b = = None ): return 1 ; # 2. both non-empty . compare them if (a ! = None and b ! = None ): return ( isSameStructure(a.left, b.left) and isSameStructure(a.right, b.right)) # 3. one empty, one not . false return 0 ; # Driver code if __name__ = = '__main__' : root1 = newNode( 10 ); root2 = newNode( 100 ); root1.left = newNode( 7 ); root1.right = newNode( 15 ); root1.left.left = newNode( 4 ); root1.left.right = newNode( 9 ); root1.right.right = newNode( 20 ); root2.left = newNode( 70 ); root2.right = newNode( 150 ); root2.left.left = newNode( 40 ); root2.left.right = newNode( 90 ); root2.right.right = newNode( 200 ); if (isSameStructure(root1, root2)): print ( "Both trees have same structure" ); else : print ( "Trees do not have same structure" ); # This code is contributed by rutvik_56 |
C#
// C# program to check if two trees // have same structure using System; class GFG { // A binary tree node has data, // pointer to left child and // a pointer to right child public class Node { public int data; public Node left; public Node right; }; // Helper function that allocates a new node // with the given data and null left // and right pointers. static Node newNode( int data) { Node node = new Node(); node.data = data; node.left = null ; node.right = null ; return (node); } // Function to check if two trees // have same structure static Boolean isSameStructure(Node a, Node b) { // 1. both empty if (a == null && b == null ) return true ; // 2. both non-empty . compare them if (a != null && b != null ) { return ( isSameStructure(a.left, b.left) && isSameStructure(a.right, b.right) ); } // 3. one empty, one not . false return false ; } // Driver code public static void Main(String []args) { Node root1 = newNode(10); Node root2 = newNode(100); root1.left = newNode(7); root1.right = newNode(15); root1.left.left = newNode(4); root1.left.right = newNode(9); root1.right.right = newNode(20); root2.left = newNode(70); root2.right = newNode(150); root2.left.left = newNode(40); root2.left.right = newNode(90); root2.right.right = newNode(200); if (isSameStructure(root1, root2)) Console.Write( "Both trees have " + "same structure" ); else Console.Write( "Trees do not have" + " same structure" ); } } // This code is contributed by Rajput-Ji |
Javascript
<script> // JavaScript program to check if two trees // have same structure // A binary tree node has data, // pointer to left child and // a pointer to right child class Node { constructor() { this .data = 0; this .left = null ; this .right = null ; } }; // Helper function that allocates a new node // with the given data and null left // and right pointers. function newNode(data) { var node = new Node(); node.data = data; node.left = null ; node.right = null ; return node; } // Function to check if two trees // have same structure function isSameStructure(a, b) { // 1. both empty if (a == null && b == null ) return true ; // 2. both non-empty . compare them if (a != null && b != null ) { return isSameStructure(a.left, b.left) && isSameStructure(a.right, b.right) ; } // 3. one empty, one not . false return false ; } // Driver code var root1 = newNode(10); var root2 = newNode(100); root1.left = newNode(7); root1.right = newNode(15); root1.left.left = newNode(4); root1.left.right = newNode(9); root1.right.right = newNode(20); root2.left = newNode(70); root2.right = newNode(150); root2.left.left = newNode(40); root2.left.right = newNode(90); root2.right.right = newNode(200); if (isSameStructure(root1, root2)) document.write( "Both trees have " + "same structure" ); else document.write( "Trees do not have" + " same structure" ); </script> |
输出：
Both trees have same structure
