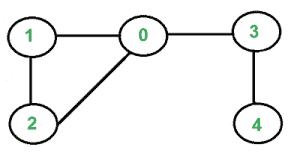

给定一个无向图，如何检查图中是否有循环？例如，下图有一个循环1-0-2-1。
null
我们讨论过 循环检测 这个 有向图 .我们还讨论了 无向图中循环检测的联合查找算法。 联合查找算法的时间复杂度为O（ELogV）。像有向图一样，我们可以使用 DFS 在O（V+E）时间内检测无向图中的一个循环。我们讨论过 基于DFS的循环检测解决方案 一 无向图 . 在本文中 BFS 讨论了基于该方法的解决方案。我们对给定的图进行BFS遍历。对于每个被访问的顶点“v”，如果有一个相邻的“u”，使得u已经被访问，并且u不是v的父节点，那么图中就有一个循环。如果我们找不到任何顶点的邻接点，我们就说没有循环。 我们使用父数组来跟踪顶点的父顶点，这样我们就不会将访问的父节点视为一个循环。
C++
// C++ program to detect cycle // in an undirected graph // using BFS. #include <bits/stdc++.h> using namespace std; void addEdge(vector< int > adj[], int u, int v) { adj[u].push_back(v); adj[v].push_back(u); } bool isCyclicConntected(vector< int > adj[], int s, int V, vector< bool >& visited) { // Set parent vertex for every vertex as -1. vector< int > parent(V, -1); // Create a queue for BFS queue< int > q; // Mark the current node as // visited and enqueue it visited[s] = true ; q.push(s); while (!q.empty()) { // Dequeue a vertex from queue and print it int u = q.front(); q.pop(); // Get all adjacent vertices of the dequeued // vertex u. If a adjacent has not been visited, // then mark it visited and enqueue it. We also // mark parent so that parent is not considered // for cycle. for ( auto v : adj[u]) { if (!visited[v]) { visited[v] = true ; q.push(v); parent[v] = u; } else if (parent[u] != v) return true ; } } return false ; } bool isCyclicDisconntected(vector< int > adj[], int V) { // Mark all the vertices as not visited vector< bool > visited(V, false ); for ( int i = 0; i < V; i++) if (!visited[i] && isCyclicConntected(adj, i, V, visited)) return true ; return false ; } // Driver program to test methods of graph class int main() { int V = 4; vector< int > adj[V]; addEdge(adj, 0, 1); addEdge(adj, 1, 2); addEdge(adj, 2, 0); addEdge(adj, 2, 3); if (isCyclicDisconntected(adj, V)) cout << "Yes" ; else cout << "No" ; return 0; } |
JAVA
// Java program to detect cycle in // an undirected graph using BFS. import java.util.ArrayList; import java.util.Arrays; import java.util.LinkedList; import java.util.Queue; class cycle { public static void main(String arg[]) { int V = 4 ; @SuppressWarnings ( "unchecked" ) ArrayList <Integer> adj[] = new ArrayList[V]; for ( int i = 0 ; i < 4 ; i++) adj[i] = new ArrayList<Integer>(); addEdge(adj, 0 , 1 ); addEdge(adj, 1 , 2 ); addEdge(adj, 2 , 0 ); addEdge(adj, 2 , 3 ); if (isCyclicDisconntected(adj, V)) System.out.println( "Yes" ); else System.out.println( "No" ); } static void addEdge(ArrayList<Integer> adj[], int u, int v) { adj[u].add(v); adj[v].add(u); } static boolean isCyclicConntected( ArrayList<Integer> adj[], int s, int V, boolean visited[]) { // Set parent vertex for every vertex as -1. int parent[] = new int [V]; Arrays.fill(parent, - 1 ); // Create a queue for BFS Queue<Integer> q = new LinkedList<>(); // Mark the current node as // visited and enqueue it visited[s] = true ; q.add(s); while (!q.isEmpty()) { // Dequeue a vertex from // queue and print it int u = q.poll(); // Get all adjacent vertices // of the dequeued vertex u. // If a adjacent has not been // visited, then mark it visited // and enqueue it. We also mark parent // so that parent is not considered // for cycle. for ( int i = 0 ; i < adj[u].size(); i++) { int v = adj[u].get(i); if (!visited[v]) { visited[v] = true ; q.add(v); parent[v] = u; } else if (parent[u] != v) return true ; } } return false ; } static boolean isCyclicDisconntected( ArrayList<Integer> adj[], int V) { // Mark all the vertices as not visited boolean visited[] = new boolean [V]; Arrays.fill(visited, false ); for ( int i = 0 ; i < V; i++) if (!visited[i] && isCyclicConntected(adj, i, V, visited)) return true ; return false ; } } // This code is contributed by mayukh Sengupta |
Python3
# Python3 program to detect cycle in # an undirected graph using BFS. from collections import deque def addEdge(adj: list , u, v): adj[u].append(v) adj[v].append(u) def isCyclicConnected(adj: list , s, V, visited: list ): # Set parent vertex for every vertex as -1. parent = [ - 1 ] * V # Create a queue for BFS q = deque() # Mark the current node as # visited and enqueue it visited[s] = True q.append(s) while q ! = []: # Dequeue a vertex from queue and print it u = q.pop() # Get all adjacent vertices of the dequeued # vertex u. If a adjacent has not been visited, # then mark it visited and enqueue it. We also # mark parent so that parent is not considered # for cycle. for v in adj[u]: if not visited[v]: visited[v] = True q.append(v) parent[v] = u elif parent[u] ! = v: return True return False def isCyclicDisconnected(adj: list , V): # Mark all the vertices as not visited visited = [ False ] * V for i in range (V): if not visited[i] and isCyclicConnected(adj, i, V, visited): return True return False # Driver Code if __name__ = = "__main__" : V = 4 adj = [[] for i in range (V)] addEdge(adj, 0 , 1 ) addEdge(adj, 1 , 2 ) addEdge(adj, 2 , 0 ) addEdge(adj, 2 , 3 ) if isCyclicDisconnected(adj, V): print ( "Yes" ) else : print ( "No" ) # This code is contributed by # sanjeev2552 |
C#
// A C# program to detect cycle in // an undirected graph using BFS. using System; using System.Collections.Generic; class GFG { public static void Main(String []arg) { int V = 4; List< int > []adj = new List< int >[V]; for ( int i = 0; i < 4; i++) { adj[i] = new List< int >(); } addEdge(adj, 0, 1); addEdge(adj, 1, 2); addEdge(adj, 2, 0); addEdge(adj, 2, 3); if (isCyclicDisconntected(adj, V)) { Console.WriteLine( "Yes" ); } else { Console.WriteLine( "No" ); } } static void addEdge(List< int > []adj, int u, int v) { adj[u].Add(v); adj[v].Add(u); } static bool isCyclicConntected(List< int > []adj, int s, int V, bool []visited) { // Set parent vertex for every vertex as -1. int []parent = new int [V]; for ( int i = 0; i < V; i++) parent[i] = -1; // Create a queue for BFS Queue< int > q = new Queue< int >(); // Mark the current node as // visited and enqueue it visited[s] = true ; q.Enqueue(s); while (q.Count != 0) { // Dequeue a vertex from // queue and print it int u = q.Dequeue(); // Get all adjacent vertices // of the dequeued vertex u. // If a adjacent has not been // visited, then mark it visited // and enqueue it. We also mark parent // so that parent is not considered // for cycle. for ( int i = 0; i < adj[u].Count; i++) { int v = adj[u][i]; if (!visited[v]) { visited[v] = true ; q.Enqueue(v); parent[v] = u; } else if (parent[u] != v) { return true ; } } } return false ; } static bool isCyclicDisconntected(List< int > []adj, int V) { // Mark all the vertices as not visited bool []visited = new bool [V]; for ( int i = 0; i < V; i++) { if (!visited[i] && isCyclicConntected(adj, i, V, visited)) { return true ; } } return false ; } } // This code is contributed by PrinciRaj1992 |
Javascript
<script> // A JavaScript program to detect cycle in // an undirected graph using BFS. var V = 4; var adj = Array.from(Array(V), ()=>Array()); addEdge(adj, 0, 1); addEdge(adj, 1, 2); addEdge(adj, 2, 0); addEdge(adj, 2, 3); if (isCyclicDisconntected(adj, V)) { document.write( "Yes" ); } else { document.write( "No" ); } function addEdge(adj, u, v) { adj[u].push(v); adj[v].push(u); } function isCyclicConntected(adj, s, V, visited) { // Set parent vertex for every vertex as -1. var parent = Array(V).fill(-1); // Create a queue for BFS var q = []; // Mark the current node as // visited and enqueue it visited[s] = true ; q.push(s); while (q.length != 0) { // Dequeue a vertex from // queue and print it var u = q.shift(); // Get all adjacent vertices // of the dequeued vertex u. // If a adjacent has not been // visited, then mark it visited // and enqueue it. We also mark parent // so that parent is not considered // for cycle. for ( var i = 0; i < adj[u].length; i++) { var v = adj[u][i]; if (!visited[v]) { visited[v] = true ; q.push(v); parent[v] = u; } else if (parent[u] != v) { return true ; } } } return false ; } function isCyclicDisconntected(adj, V) { // Mark all the vertices as not visited var visited = Array(V).fill( false ); for ( var i = 0; i < V; i++) { if (!visited[i] && isCyclicConntected(adj, i, V, visited)) { return true ; } } return false ; } </script> |
输出：
Yes
时间复杂性： 该程序对图进行简单的BFS遍历，并使用邻接列表表示图。所以时间复杂度是O（V+E）
