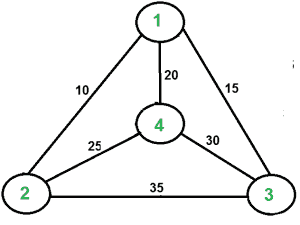

旅行推销员问题（TSP）： 给定一组城市和每对城市之间的距离，问题是找到一条可能的最短路线，该路线只访问每个城市一次，然后返回起点。 请注意 哈密顿循环 还有TSP。哈密顿循环问题是要找出是否存在一个旅游团，每个城市只访问一次。这里我们知道哈密顿圈的存在（因为图是完整的），事实上，很多这样的圈都存在，问题是找到一个最小权哈密顿圈。 例如，考虑右边图中所示的图表。图中的TSP旅行是1-2-4-3-1。旅行的费用是10+25+30+15，也就是80。 该问题是一个著名的NP难问题。这个问题没有多项式时间的已知解决方案。
null
![图片[1]-旅行商问题（TSP）的实现-yiteyi-C++库](https://www.yiteyi.com/wp-content/uploads/geeks/geeks_Euler12-300x225.png)
例如：
Output of Given Graph:minimum weight Hamiltonian Cycle :10 + 25 + 30 + 15 := 80
本文将讨论一个简单解决方案的实现。
- 以城市1为出发点和落脚点。由于路径是循环的，我们可以考虑任何点作为起点。
- 生成所有（n-1）！城市的排列。
- 计算每个排列的成本，并跟踪最小成本排列。
- 以最低成本返回排列。
下面是上述想法的实施
C++
// CPP program to implement traveling salesman // problem using naive approach. #include <bits/stdc++.h> using namespace std; #define V 4 // implementation of traveling Salesman Problem int travllingSalesmanProblem( int graph[][V], int s) { // store all vertex apart from source vertex vector< int > vertex; for ( int i = 0; i < V; i++) if (i != s) vertex.push_back(i); // store minimum weight Hamiltonian Cycle. int min_path = INT_MAX; do { // store current Path weight(cost) int current_pathweight = 0; // compute current path weight int k = s; for ( int i = 0; i < vertex.size(); i++) { current_pathweight += graph[k][vertex[i]]; k = vertex[i]; } current_pathweight += graph[k][s]; // update minimum min_path = min(min_path, current_pathweight); } while ( next_permutation(vertex.begin(), vertex.end())); return min_path; } // Driver Code int main() { // matrix representation of graph int graph[][V] = { { 0, 10, 15, 20 }, { 10, 0, 35, 25 }, { 15, 35, 0, 30 }, { 20, 25, 30, 0 } }; int s = 0; cout << travllingSalesmanProblem(graph, s) << endl; return 0; } |
JAVA
// Java program to implement // traveling salesman problem // using naive approach. import java.util.*; class GFG{ static int V = 4 ; // implementation of traveling // Salesman Problem static int travllingSalesmanProblem( int graph[][], int s) { // store all vertex apart // from source vertex ArrayList<Integer> vertex = new ArrayList<Integer>(); for ( int i = 0 ; i < V; i++) if (i != s) vertex.add(i); // store minimum weight // Hamiltonian Cycle. int min_path = Integer.MAX_VALUE; do { // store current Path weight(cost) int current_pathweight = 0 ; // compute current path weight int k = s; for ( int i = 0 ; i < vertex.size(); i++) { current_pathweight += graph[k][vertex.get(i)]; k = vertex.get(i); } current_pathweight += graph[k][s]; // update minimum min_path = Math.min(min_path, current_pathweight); } while (findNextPermutation(vertex)); return min_path; } // Function to swap the data // present in the left and right indices public static ArrayList<Integer> swap( ArrayList<Integer> data, int left, int right) { // Swap the data int temp = data.get(left); data.set(left, data.get(right)); data.set(right, temp); // Return the updated array return data; } // Function to reverse the sub-array // starting from left to the right // both inclusive public static ArrayList<Integer> reverse( ArrayList<Integer> data, int left, int right) { // Reverse the sub-array while (left < right) { int temp = data.get(left); data.set(left++, data.get(right)); data.set(right--, temp); } // Return the updated array return data; } // Function to find the next permutation // of the given integer array public static boolean findNextPermutation( ArrayList<Integer> data) { // If the given dataset is empty // or contains only one element // next_permutation is not possible if (data.size() <= 1 ) return false ; int last = data.size() - 2 ; // find the longest non-increasing // suffix and find the pivot while (last >= 0 ) { if (data.get(last) < data.get(last + 1 )) { break ; } last--; } // If there is no increasing pair // there is no higher order permutation if (last < 0 ) return false ; int nextGreater = data.size() - 1 ; // Find the rightmost successor // to the pivot for ( int i = data.size() - 1 ; i > last; i--) { if (data.get(i) > data.get(last)) { nextGreater = i; break ; } } // Swap the successor and // the pivot data = swap(data, nextGreater, last); // Reverse the suffix data = reverse(data, last + 1 , data.size() - 1 ); // Return true as the // next_permutation is done return true ; } // Driver Code public static void main(String args[]) { // matrix representation of graph int graph[][] = {{ 0 , 10 , 15 , 20 }, { 10 , 0 , 35 , 25 }, { 15 , 35 , 0 , 30 }, { 20 , 25 , 30 , 0 }}; int s = 0 ; System.out.println( travllingSalesmanProblem(graph, s)); } } // This code is contributed by adityapande88 |
Python3
# Python3 program to implement traveling salesman # problem using naive approach. from sys import maxsize from itertools import permutations V = 4 # implementation of traveling Salesman Problem def travellingSalesmanProblem(graph, s): # store all vertex apart from source vertex vertex = [] for i in range (V): if i ! = s: vertex.append(i) # store minimum weight Hamiltonian Cycle min_path = maxsize next_permutation = permutations(vertex) for i in next_permutation: # store current Path weight(cost) current_pathweight = 0 # compute current path weight k = s for j in i: current_pathweight + = graph[k][j] k = j current_pathweight + = graph[k][s] # update minimum min_path = min (min_path, current_pathweight) return min_path # Driver Code if __name__ = = "__main__" : # matrix representation of graph graph = [[ 0 , 10 , 15 , 20 ], [ 10 , 0 , 35 , 25 ], [ 15 , 35 , 0 , 30 ], [ 20 , 25 , 30 , 0 ]] s = 0 print (travellingSalesmanProblem(graph, s)) |
输出
80
