用弗洛伊德·沃沙尔探测负循环-yiteyi-C++库

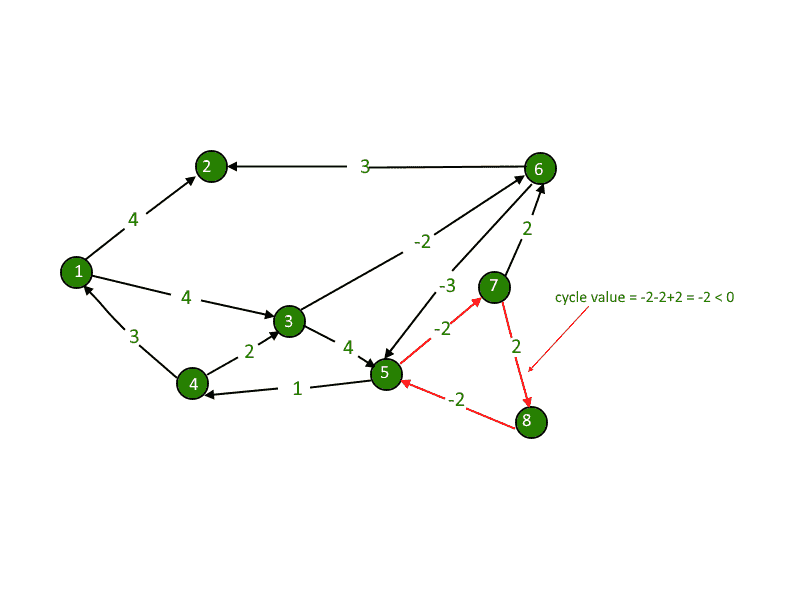

我们得到了一个有向图。我们需要计算图是否有负循环。负周期是指周期的总和为负的周期。

null

negative_cycle

负权存在于图的各种应用中。例如，如果我们沿着这条路走，我们可能会获得一些优势，而不是为一条路支付成本。例如：

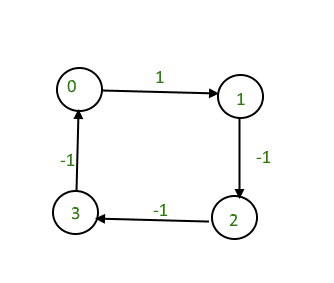

Input : 4 4
        0 1 1
        1 2 -1
        2 3 -1
        3 0 -1

Output : Yes
The graph contains a negative cycle.

Detecting negative cycle using Floyd Warshall

推荐：请尝试你的方法 {IDE} 首先，在进入解决方案之前。

我们讨论过贝尔曼-福特算法基于此问题的解决方案。在这篇帖子里，弗洛伊德·沃沙尔算法讨论了一种既适用于连通图，又适用于非连通图的基解。任何节点与自身的距离始终为零。但在某些情况下，就像在这个例子中，当我们从4到1进一步移动时，距离变成了-2，也就是说，1到1的距离变成了-2。这是我们的目标，我们只需检查节点与自身的距离，如果结果为负，我们将检测所需的负循环。

C++

                         // C++ Program to check if there is a negative weight
                         // cycle using Floyd Warshall Algorithm
                         #include<bits/stdc++.h>
                         using                                     namespace                                     std;

                         // Number of vertices in the graph
                         #define V 4

                         /* Define Infinite as a large enough value. This
                                                 value will be used for vertices not connected
                                                 to each other */
                         #define INF 99999

                         // A function to print the solution matrix
                         void                                     printSolution(                                     int                                     dist[][V]);

                         // Returns true if graph has negative weight cycle
                         // else false.
                         bool                                     negCyclefloydWarshall(                                     int                                     graph[][V])
                         {
                                                 /* dist[][] will be the output matrix that will
                                                 finally have the shortest
                                                 distances between every pair of vertices */
                                                 int                                     dist[V][V], i, j, k;

                                                 /* Initialize the solution matrix same as input
                                                 graph matrix. Or we can say the initial values
                                                 of shortest distances are based on shortest
                                                 paths considering no intermediate vertex. */
                                                 for                                     (i = 0; i < V; i++)
                                                 for                                     (j = 0; j < V; j++)
                                                 dist[i][j] = graph[i][j];

                                                 /* Add all vertices one by one to the set of
                                                 intermediate vertices.
                                                 ---> Before start of a iteration, we have shortest
                                                 distances between all pairs of vertices such
                                                 that the shortest distances consider only the
                                                 vertices in set {0, 1, 2, .. k-1} as intermediate
                                                 vertices.
                                                 ----> After the end of a iteration, vertex no. k is
                                                 added to the set of intermediate vertices and
                                                 the set becomes {0, 1, 2, .. k} */
                                                 for                                     (k = 0; k < V; k++)
                                                 {
                                                 // Pick all vertices as source one by one
                                                 for                                     (i = 0; i < V; i++)
                                                 {
                                                 // Pick all vertices as destination for the
                                                 // above picked source
                                                 for                                     (j = 0; j < V; j++)
                                                 {
                                                 // If vertex k is on the shortest path from
                                                 // i to j, then update the value of dist[i][j]
                                                 if                                     (dist[i][k] + dist[k][j] < dist[i][j])
                                                 dist[i][j] = dist[i][k] + dist[k][j];
                                                 }
                                                 }
                                                 }

                                                 // If distance of any vertex from itself
                                                 // becomes negative, then there is a negative
                                                 // weight cycle.
                                                 for                                     (                                     int                                     i = 0; i < V; i++)
                                                 if                                     (dist[i][i] < 0)
                                                 return                                     true                                     ;
                                                 return                                     false                                     ;
                         }

                                                 // driver program
                         int                                     main()
                         {
                                                 /* Let us create the following weighted graph
                                                 1
                                                 (0)----------->(1)
                                                 /|             |
                                                 |              |
                                                 -1 |              | -1
                                                 |             |/
                                                 (3)<-----------(2)
                                                 -1       */

                                                 int                                     graph[V][V] = { {0   , 1   , INF , INF},
                                                 {INF , 0   , -1  , INF},
                                                 {INF , INF , 0   ,  -1},
                                                 {-1  , INF , INF ,   0}};

                                                 if                                     (negCyclefloydWarshall(graph))
                                                 cout <<                                     "Yes"                                     ;
                                                 else
                                                 cout <<                                     "No"                                     ;
                                                 return                                     0;
                         }

JAVA

                         // Java Program to check if there is a negative weight
                         // cycle using Floyd Warshall Algorithm
                         class                                     GFG
                         {

                                                 // Number of vertices in the graph
                                                 static                                     final                                     int                                     V =                                     4                                     ;

                                                 /* Define Infinite as a large enough value. This
                                                 value will be used for vertices not connected
                                                 to each other */
                                                 static                                     final                                     int                                     INF =                                     99999                                     ;

                                                 // Returns true if graph has negative weight cycle
                                                 // else false.
                                                 static                                     boolean                                     negCyclefloydWarshall(                                     int                                     graph[][])
                                                 {

                                                 /* dist[][] will be the output matrix that will
                                                 finally have the shortest
                                                 distances between every pair of vertices */
                                                 int                                     dist[][] =                                     new                                     int                                     [V][V], i, j, k;

                                                 /* Initialize the solution matrix same as input
                                                 graph matrix. Or we can say the initial values
                                                 of shortest distances are based on shortest
                                                 paths considering no intermediate vertex. */
                                                 for                                     (i =                                     0                                     ; i < V; i++)
                                                 for                                     (j =                                     0                                     ; j < V; j++)
                                                 dist[i][j] = graph[i][j];

                                                 /* Add all vertices one by one to the set of
                                                 intermediate vertices.
                                                 ---> Before start of a iteration, we have shortest
                                                 distances between all pairs of vertices such
                                                 that the shortest distances consider only the
                                                 vertices in set {0, 1, 2, .. k-1} as intermediate
                                                 vertices.
                                                 ----> After the end of a iteration, vertex no. k is
                                                 added to the set of intermediate vertices and
                                                 the set becomes {0, 1, 2, .. k} */
                                                 for                                     (k =                                     0                                     ; k < V; k++)
                                                 {

                                                 // Pick all vertices as source one by one
                                                 for                                     (i =                                     0                                     ; i < V; i++)
                                                 {

                                                 // Pick all vertices as destination for the
                                                 // above picked source
                                                 for                                     (j =                                     0                                     ; j < V; j++)
                                                 {

                                                 // If vertex k is on the shortest path from
                                                 // i to j, then update the value of dist[i][j]
                                                 if                                     (dist[i][k] + dist[k][j] < dist[i][j])
                                                 dist[i][j] = dist[i][k] + dist[k][j];
                                                 }
                                                 }
                                                 }

                                                 // If distance of any vertex from itself
                                                 // becomes negative, then there is a negative
                                                 // weight cycle.
                                                 for                                     (i =                                     0                                     ; i < V; i++)
                                                 if                                     (dist[i][i] <                                     0                                     )
                                                 return                                     true                                     ;

                                                 return                                     false                                     ;
                                                 }

                                                 // Driver code
                                                 public                                     static                                     void                                     main (String[] args)
                                                 {

                                                 /* Let us create the following weighted graph
                                                 1
                                                 (0)----------->(1)
                                                 /|               |
                                                 |               |
                                                 -1 |               | -1
                                                 |                |/
                                                 (3)<-----------(2)
                                                 -1     */

                                                 int                                     graph[][] = { {                                     0                                     ,                                     1                                     , INF, INF},
                                                 {INF,                                     0                                     , -                                     1                                     , INF},
                                                 {INF, INF,                                     0                                     , -                                     1                                     },
                                                 {-                                     1                                     , INF, INF,                                     0                                     }};

                                                 if                                     (negCyclefloydWarshall(graph))
                                                 System.out.print(                                     "Yes"                                     );
                                                 else
                                                 System.out.print(                                     "No"                                     );
                                                 }
                         }

                         // This code is contributed by Anant Agarwal.

Python3

                         # Python Program to check
                         # if there is a
                         # negative weight
                         # cycle using Floyd
                         # Warshall Algorithm


                         # Number of vertices
                         # in the graph
                         V                                     =                                     4

                         # Define Infinite as a
                         # large enough value. This
                         # value will be used
                         #for vertices not connected
                         # to each other
                         INF                                     =                                     99999

                         # Returns true if graph has
                         # negative weight cycle
                         # else false.
                         def                                     negCyclefloydWarshall(graph):

                                                 # dist[][] will be the
                                                 # output matrix that will
                                                 # finally have the shortest
                                                 # distances between every
                                                 # pair of vertices
                                                 dist                                     =                                     [[                                     0                                     for                                     i                                     in                                     range                                     (V                                     +                                     1                                     )]                                     for                                     j                                     in                                     range                                     (V                                     +                                     1                                     )]

                                                 # Initialize the solution
                                                 # matrix same as input
                                                 # graph matrix. Or we can
                                                 # say the initial values
                                                 # of shortest distances
                                                 # are based on shortest
                                                 # paths considering no
                                                 # intermediate vertex.
                                                 for                                     i                                     in                                     range                                     (V):
                                                 for                                     j                                     in                                     range                                     (V):
                                                 dist[i][j]                                     =                                     graph[i][j]

                                                 ''' Add all vertices one
                                                 by one to the set of
                                                 intermediate vertices.
                                                 ---> Before start of a iteration,
                                                 we have shortest
                                                 distances between all pairs
                                                 of vertices such
                                                 that the shortest distances
                                                 consider only the
                                                 vertices in set {0, 1, 2, .. k-1}
                                                 as intermediate vertices.
                                                 ----> After the end of a iteration,
                                                 vertex no. k is
                                                 added to the set of
                                                 intermediate vertices and
                                                 the set becomes {0, 1, 2, .. k} '''
                                                 for                                     k                                     in                                     range                                     (V):

                                                 # Pick all vertices
                                                 # as source one by one
                                                 for                                     i                                     in                                     range                                     (V):

                                                 # Pick all vertices as
                                                 # destination for the
                                                 # above picked source
                                                 for                                     j                                     in                                     range                                     (V):

                                                 # If vertex k is on
                                                 # the shortest path from
                                                 # i to j, then update
                                                 # the value of dist[i][j]
                                                 if                                     (dist[i][k]                                     +                                     dist[k][j] < dist[i][j]):
                                                 dist[i][j]                                     =                                     dist[i][k]                                     +                                     dist[k][j]

                                                 # If distance of any
                                                 # vertex from itself
                                                 # becomes negative, then
                                                 # there is a negative
                                                 # weight cycle.
                                                 for                                     i                                     in                                     range                                     (V):
                                                 if                                     (dist[i][i] <                                     0                                     ):
                                                 return                                     True

                                                 return                                     False


                         # Driver code


                         ''' Let us create the
                                                 following weighted graph
                                                 1
                                                 (0)----------->(1)
                                                 /|               |
                                                 |               |
                                                 -1 |               | -1
                                                 |                |/
                                                 (3)<-----------(2)
                                                 -1     '''

                         graph                                     =                                     [ [                                     0                                     ,                                     1                                     , INF, INF],
                                                 [INF,                                     0                                     ,                                     -                                     1                                     , INF],
                                                 [INF, INF,                                     0                                     ,                                     -                                     1                                     ],
                                                 [                                     -                                     1                                     , INF, INF,                                     0                                     ]]

                         if                                     (negCyclefloydWarshall(graph)):
                                                 print                                     (                                     "Yes"                                     )
                         else                                     :
                                                 print                                     (                                     "No"                                     )

                         # This code is contributed
                         # by Anant Agarwal.

C#

                         // C# Program to check if there
                         // is a negative weight cycle
                         // using Floyd Warshall Algorithm

                         using                                     System;

                         namespace                                     Cycle
                         {
                         public                                     class                                     GFG
                         {


                                                 // Number of vertices in the graph
                                                 static                                     int                                     V = 4;

                                                 /* Define Infinite as a large enough value. This
                                                 value will be used for vertices not connected
                                                 to each other */
                                                 static                                     int                                     INF = 99999;

                                                 // Returns true if graph has negative weight cycle
                                                 // else false.
                                                 static                                     bool                                     negCyclefloydWarshall(                                     int                                     [,]graph)
                                                 {

                                                 /* dist[][] will be the output matrix that will
                                                 finally have the shortest
                                                 distances between every pair of vertices */
                                                 int                                     [,]dist =                                     new                                     int                                     [V,V];
                                                 int                                     i, j, k;

                                                 /* Initialize the solution matrix same as input
                                                 graph matrix. Or we can say the initial values
                                                 of shortest distances are based on shortest
                                                 paths considering no intermediate vertex. */
                                                 for                                     (i = 0; i < V; i++)
                                                 for                                     (j = 0; j < V; j++)
                                                 dist[i,j] = graph[i,j];

                                                 /* Add all vertices one by one to the set of
                                                 intermediate vertices.
                                                 ---> Before start of a iteration, we have shortest
                                                 distances between all pairs of vertices such
                                                 that the shortest distances consider only the
                                                 vertices in set {0, 1, 2, .. k-1} as intermediate
                                                 vertices.
                                                 ----> After the end of a iteration, vertex no. k is
                                                 added to the set of intermediate vertices and
                                                 the set becomes {0, 1, 2, .. k} */
                                                 for                                     (k = 0; k < V; k++)
                                                 {

                                                 // Pick all vertices as source one by one
                                                 for                                     (i = 0; i < V; i++)
                                                 {

                                                 // Pick all vertices as destination for the
                                                 // above picked source
                                                 for                                     (j = 0; j < V; j++)
                                                 {

                                                 // If vertex k is on the shortest path from
                                                 // i to j, then update the value of dist[i][j]
                                                 if                                     (dist[i,k] + dist[k,j] < dist[i,j])
                                                 dist[i,j] = dist[i,k] + dist[k,j];
                                                 }
                                                 }
                                                 }

                                                 // If distance of any vertex from itself
                                                 // becomes negative, then there is a negative
                                                 // weight cycle.
                                                 for                                     (i = 0; i < V; i++)
                                                 if                                     (dist[i,i] < 0)
                                                 return                                     true                                     ;

                                                 return                                     false                                     ;
                                                 }

                                                 // Driver code
                                                 public                                     static                                     void                                     Main()
                                                 {

                                                 /* Let us create the following weighted graph
                                                 1
                                                 (0)----------->(1)
                                                 /|             |
                                                 |             |
                                                 -1 |             | -1
                                                 |             |/
                                                 (3)<-----------(2)
                                                 -1     */

                                                 int                                     [,]graph = { {0, 1, INF, INF},
                                                 {INF, 0, -1, INF},
                                                 {INF, INF, 0, -1},
                                                 {-1, INF, INF, 0}};

                                                 if                                     (negCyclefloydWarshall(graph))
                                                 Console.Write(                                     "Yes"                                     );
                                                 else
                                                 Console.Write(                                     "No"                                     );
                                                 }
                         }
                         }

                         // This code is contributed by Sam007.

Javascript

                         <script>

                         // JavaScript Program to check if there
                         // is a negative weight cycle
                         // using Floyd Warshall Algorithm
                         // Number of vertices in the graph
                         var                                     V = 4;

                         /* Define Infinite as a large enough value. This
                         value will be used for vertices not connected
                         to each other */
                         var                                     INF = 99999;

                         // Returns true if graph has negative weight cycle
                         // else false.
                         function                                     negCyclefloydWarshall(graph)
                         {

                                                 /* dist[][] will be the output matrix that will
                                                 finally have the shortest
                                                 distances between every pair of vertices */
                                                 var                                     dist = Array.from(Array(V), ()=>Array(V));
                                                 var                                     i, j, k;

                                                 /* Initialize the solution matrix same as input
                                                 graph matrix. Or we can say the initial values
                                                 of shortest distances are based on shortest
                                                 paths considering no intermediate vertex. */
                                                 for                                     (i = 0; i < V; i++)
                                                 for                                     (j = 0; j < V; j++)
                                                 dist[i][j] = graph[i][j];

                                                 /* Add all vertices one by one to the set of
                                                 intermediate vertices.
                                                 ---> Before start of a iteration, we have shortest
                                                 distances between all pairs of vertices such
                                                 that the shortest distances consider only the
                                                 vertices in set {0, 1, 2, .. k-1} as intermediate
                                                 vertices.
                                                 ----> After the end of a iteration, vertex no. k is
                                                 added to the set of intermediate vertices and
                                                 the set becomes {0, 1, 2, .. k} */
                                                 for                                     (k = 0; k < V; k++)
                                                 {

                                                 // Pick all vertices as source one by one
                                                 for                                     (i = 0; i < V; i++)
                                                 {

                                                 // Pick all vertices as destination for the
                                                 // above picked source
                                                 for                                     (j = 0; j < V; j++)
                                                 {

                                                 // If vertex k is on the shortest path from
                                                 // i to j, then update the value of dist[i][j]
                                                 if                                     (dist[i][k] + dist[k][j] < dist[i][j])
                                                 dist[i][j] = dist[i][k] + dist[k][j];
                                                 }
                                                 }
                                                 }

                                                 // If distance of any vertex from itself
                                                 // becomes negative, then there is a negative
                                                 // weight cycle.
                                                 for                                     (i = 0; i < V; i++)
                                                 if                                     (dist[i][i] < 0)
                                                 return                                     true                                     ;
                                                 return                                     false                                     ;
                         }

                         // Driver code

                         /* Let us create the following weighted graph
                                                 1
                                                 (0)----------->(1)
                                                 /|             |
                                                 |             |
                         -1 |             | -1
                                                 |             |/
                                                 (3)<-----------(2)
                                                 -1     */

                         var                                     graph = [ [0, 1, INF, INF],
                                                 [INF, 0, -1, INF],
                                                 [INF, INF, 0, -1],
                                                 [-1, INF, INF, 0]];

                         if                                     (negCyclefloydWarshall(graph))
                                                 document.write(                                     "Yes"                                     );
                         else
                                                 document.write(                                     "No"                                     );


                         </script>

输出：

Yes

本文由 希瓦尼·米塔尔 .如果你喜欢GeekSforgek，并想贡献自己的力量，你也可以使用写极客。组织或者把你的文章寄去评论-team@geeksforgeeks.org.看到你的文章出现在Geeksforgeks主页上，并帮助其他极客。如果您发现任何不正确的地方，或者您想分享有关上述主题的更多信息，请写下评论。

文章版权归作者所有，未经允许请勿转载。

THE END

技术文章
