这个 中点 圆绘制算法是一种用于确定栅格化圆所需点的算法。
null
我们使用 中点 计算圆中所有周长点的算法 第一卦限 然后把它们和其他八分之一的镜像点一起打印出来。这将起作用，因为一个圆围绕其中心对称。
该算法与 中点线生成算法 这里，只有边界条件不同。
对于任何给定的像素（x，y），下一个要绘制的像素是 （x，y+1） 或 （x-1，y+1） 。这可以通过以下步骤来决定。
- 找到中点 P 两个可能的像素，即（x-0.5，y+1）
- 如果 P 在圆周长内或圆周长上，我们绘制像素（x，y+1），否则如果它在外，我们绘制像素（x-1，y+1）
边界条件： 中点是否位于圆内或圆外，可通过以下公式确定：-
给定一个以（0,0）为中心、半径r和点p（x，y）的圆 F（p）=x 2. +y 2. –r 2. 如果F（p）<0，则点位于圆内 F（p）=0，点在周长上 F（p）>0，点在圆外
在我们的程序中，我们用p来表示F（p）。p的值是在两个竞争像素的中点计算的，即（x-0.5，y+1）。每个像素都用下标k来描述。
P K =（X） K — 0.5) 2. +（y） K + 1) 2. –r 2. 现在 十、 k+1 =x K 或者x k-1 Y k+1 =y K +1 ∴ P k+1 =（x） k+1 – 0.5) 2. +（y） k+1 +1) 2. –r 2. =（x） k+1 – 0.5) 2. +[（y） K +1) + 1] 2. –r 2. =（x） k+1 – 0.5) 2. +（y） K +1) 2. +2（y） K +1）+1-r 2. =（x） k+1 – 0.5) 2. +[–（x） K – 0.5) 2. +（十） K – 0.5) 2. ]+（y） K + 1) 2. –r 2. +（y） K + 1) + 1 =P K +（十） k+1 – 0.5) 2. –（x） K – 0.5) 2. +2（y） K + 1) + 1 =P K +（十） 2. k+1 –x2 K ) 2. +（十） k+1 –x K ) 2. +2（y） K + 1) + 1 =P K +2（y） K +1） +1，当P K <=0，即中点在圆内 （十） k+1 =x K ) P K +2（y） K +1） -2（x） K -1）+1，当P K >0，即中点在圆外（x k+1 =x K -1)
要绘制的第一个点是x轴上的（r，0）。P的初始值计算如下：-
P1=（r–0.5） 2. + (0+1) 2. –r 2. =1.25–r =1-r（四舍五入时）
例如：

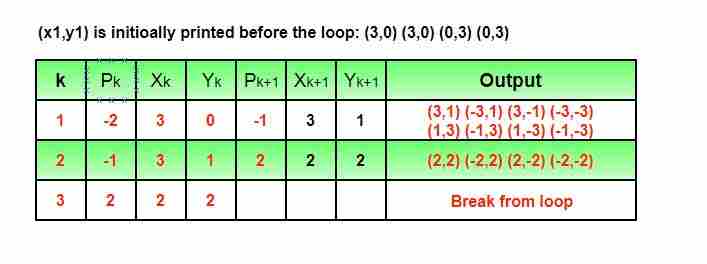

Input : Centre -> (0, 0), Radius -> 3Output : (3, 0) (3, 0) (0, 3) (0, 3) (3, 1) (-3, 1) (3, -1) (-3, -1) (1, 3) (-1, 3) (1, -3) (-1, -3) (2, 2) (-2, 2) (2, -2) (-2, -2)
Input : Centre -> (4, 4), Radius -> 2Output : (6, 4) (6, 4) (4, 6) (4, 6) (6, 5) (2, 5) (6, 3) (2, 3) (5, 6) (3, 6) (5, 2) (3, 2)
CPP
// C++ program for implementing // Mid-Point Circle Drawing Algorithm #include<iostream> using namespace std; // Implementing Mid-Point Circle Drawing Algorithm void midPointCircleDraw( int x_centre, int y_centre, int r) { int x = r, y = 0; // Printing the initial point on the axes // after translation cout << "(" << x + x_centre << ", " << y + y_centre << ") " ; // When radius is zero only a single // point will be printed if (r > 0) { cout << "(" << x + x_centre << ", " << -y + y_centre << ") " ; cout << "(" << y + x_centre << ", " << x + y_centre << ") " ; cout << "(" << -y + x_centre << ", " << x + y_centre << ")" ; } // Initialising the value of P int P = 1 - r; while (x > y) { y++; // Mid-point is inside or on the perimeter if (P <= 0) P = P + 2*y + 1; // Mid-point is outside the perimeter else { x--; P = P + 2*y - 2*x + 1; } // All the perimeter points have already been printed if (x < y) break ; // Printing the generated point and its reflection // in the other octants after translation cout << "(" << x + x_centre << ", " << y + y_centre << ") " ; cout << "(" << -x + x_centre << ", " << y + y_centre << ") " ; cout << "(" << x + x_centre << ", " << -y + y_centre << ") " ; cout << "(" << -x + x_centre << ", " << -y + y_centre << ")" ; // If the generated point is on the line x = y then // the perimeter points have already been printed if (x != y) { cout << "(" << y + x_centre << ", " << x + y_centre << ") " ; cout << "(" << -y + x_centre << ", " << x + y_centre << ") " ; cout << "(" << y + x_centre << ", " << -x + y_centre << ") " ; cout << "(" << -y + x_centre << ", " << -x + y_centre << ")" ; } } } // Driver code int main() { // To draw a circle of radius 3 centered at (0, 0) midPointCircleDraw(0, 0, 3); return 0; } |
C
// C program for implementing // Mid-Point Circle Drawing Algorithm #include<stdio.h> // Implementing Mid-Point Circle Drawing Algorithm void midPointCircleDraw( int x_centre, int y_centre, int r) { int x = r, y = 0; // Printing the initial point on the axes // after translation printf ( "(%d, %d) " , x + x_centre, y + y_centre); // When radius is zero only a single // point will be printed if (r > 0) { printf ( "(%d, %d) " , x + x_centre, -y + y_centre); printf ( "(%d, %d) " , y + x_centre, x + y_centre); printf ( "(%d, %d)" , -y + x_centre, x + y_centre); } // Initialising the value of P int P = 1 - r; while (x > y) { y++; // Mid-point is inside or on the perimeter if (P <= 0) P = P + 2*y + 1; // Mid-point is outside the perimeter else { x--; P = P + 2*y - 2*x + 1; } // All the perimeter points have already been printed if (x < y) break ; // Printing the generated point and its reflection // in the other octants after translation printf ( "(%d, %d) " , x + x_centre, y + y_centre); printf ( "(%d, %d) " , -x + x_centre, y + y_centre); printf ( "(%d, %d) " , x + x_centre, -y + y_centre); printf ( "(%d, %d)" , -x + x_centre, -y + y_centre); // If the generated point is on the line x = y then // the perimeter points have already been printed if (x != y) { printf ( "(%d, %d) " , y + x_centre, x + y_centre); printf ( "(%d, %d) " , -y + x_centre, x + y_centre); printf ( "(%d, %d) " , y + x_centre, -x + y_centre); printf ( "(%d, %d)" , -y + x_centre, -x + y_centre); } } } // Driver code int main() { // To draw a circle of radius 3 centered at (0, 0) midPointCircleDraw(0, 0, 3); return 0; } |
JAVA
// Java program for implementing // Mid-Point Circle Drawing Algorithm class GFG { // Implementing Mid-Point Circle // Drawing Algorithm static void midPointCircleDraw( int x_centre, int y_centre, int r) { int x = r, y = 0 ; // Printing the initial point // on the axes after translation System.out.print( "(" + (x + x_centre) + ", " + (y + y_centre) + ")" ); // When radius is zero only a single // point will be printed if (r > 0 ) { System.out.print( "(" + (x + x_centre) + ", " + (-y + y_centre) + ")" ); System.out.print( "(" + (y + x_centre) + ", " + (x + y_centre) + ")" ); System.out.println( "(" + (-y + x_centre) + ", " + (x + y_centre) + ")" ); } // Initialising the value of P int P = 1 - r; while (x > y) { y++; // Mid-point is inside or on the perimeter if (P <= 0 ) P = P + 2 * y + 1 ; // Mid-point is outside the perimeter else { x--; P = P + 2 * y - 2 * x + 1 ; } // All the perimeter points have already // been printed if (x < y) break ; // Printing the generated point and its // reflection in the other octants after // translation System.out.print( "(" + (x + x_centre) + ", " + (y + y_centre) + ")" ); System.out.print( "(" + (-x + x_centre) + ", " + (y + y_centre) + ")" ); System.out.print( "(" + (x + x_centre) + ", " + (-y + y_centre) + ")" ); System.out.println( "(" + (-x + x_centre) + ", " + (-y + y_centre) + ")" ); // If the generated point is on the // line x = y then the perimeter points // have already been printed if (x != y) { System.out.print( "(" + (y + x_centre) + ", " + (x + y_centre) + ")" ); System.out.print( "(" + (-y + x_centre) + ", " + (x + y_centre) + ")" ); System.out.print( "(" + (y + x_centre) + ", " + (-x + y_centre) + ")" ); System.out.println( "(" + (-y + x_centre) + ", " + (-x + y_centre) + ")" ); } } } // Driver code public static void main(String[] args) { // To draw a circle of radius // 3 centered at (0, 0) midPointCircleDraw( 0 , 0 , 3 ); } } // This code is contributed by Anant Agarwal. |
Python3
# Python3 program for implementing # Mid-Point Circle Drawing Algorithm def midPointCircleDraw(x_centre, y_centre, r): x = r y = 0 # Printing the initial point the # axes after translation print ( "(" , x + x_centre, ", " , y + y_centre, ")" , sep = " ", end = " ") # When radius is zero only a single # point be printed if (r > 0 ) : print ( "(" , x + x_centre, ", " , - y + y_centre, ")" , sep = " ", end = " ") print ( "(" , y + x_centre, ", " , x + y_centre, ")" , sep = " ", end = " ") print ( "(" , - y + x_centre, ", " , x + y_centre, ")" , sep = "") # Initialising the value of P P = 1 - r while x > y: y + = 1 # Mid-point inside or on the perimeter if P < = 0 : P = P + 2 * y + 1 # Mid-point outside the perimeter else : x - = 1 P = P + 2 * y - 2 * x + 1 # All the perimeter points have # already been printed if (x < y): break # Printing the generated point its reflection # in the other octants after translation print ( "(" , x + x_centre, ", " , y + y_centre, ")" , sep = " ", end = " ") print ( "(" , - x + x_centre, ", " , y + y_centre, ")" , sep = " ", end = " ") print ( "(" , x + x_centre, ", " , - y + y_centre, ")" , sep = " ", end = " ") print ( "(" , - x + x_centre, ", " , - y + y_centre, ")" , sep = "") # If the generated point on the line x = y then # the perimeter points have already been printed if x ! = y: print ( "(" , y + x_centre, ", " , x + y_centre, ")" , sep = " ", end = " ") print ( "(" , - y + x_centre, ", " , x + y_centre, ")" , sep = " ", end = " ") print ( "(" , y + x_centre, ", " , - x + y_centre, ")" , sep = " ", end = " ") print ( "(" , - y + x_centre, ", " , - x + y_centre, ")" , sep = "") # Driver Code if __name__ = = '__main__' : # To draw a circle of radius 3 # centered at (0, 0) midPointCircleDraw( 0 , 0 , 3 ) # Contributed by: SHUBHAMSINGH10 # Improved by: siddharthx_07 |
C#
// C# program for implementing Mid-Point // Circle Drawing Algorithm using System; class GFG { // Implementing Mid-Point Circle // Drawing Algorithm static void midPointCircleDraw( int x_centre, int y_centre, int r) { int x = r, y = 0; // Printing the initial point on the // axes after translation Console.Write( "(" + (x + x_centre) + ", " + (y + y_centre) + ")" ); // When radius is zero only a single // point will be printed if (r > 0) { Console.Write( "(" + (x + x_centre) + ", " + (-y + y_centre) + ")" ); Console.Write( "(" + (y + x_centre) + ", " + (x + y_centre) + ")" ); Console.WriteLine( "(" + (-y + x_centre) + ", " + (x + y_centre) + ")" ); } // Initialising the value of P int P = 1 - r; while (x > y) { y++; // Mid-point is inside or on the perimeter if (P <= 0) P = P + 2 * y + 1; // Mid-point is outside the perimeter else { x--; P = P + 2 * y - 2 * x + 1; } // All the perimeter points have already // been printed if (x < y) break ; // Printing the generated point and its // reflection in the other octants after // translation Console.Write( "(" + (x + x_centre) + ", " + (y + y_centre) + ")" ); Console.Write( "(" + (-x + x_centre) + ", " + (y + y_centre) + ")" ); Console.Write( "(" + (x + x_centre) + ", " + (-y + y_centre) + ")" ); Console.WriteLine( "(" + (-x + x_centre) + ", " + (-y + y_centre) + ")" ); // If the generated point is on the // line x = y then the perimeter points // have already been printed if (x != y) { Console.Write( "(" + (y + x_centre) + ", " + (x + y_centre) + ")" ); Console.Write( "(" + (-y + x_centre) + ", " + (x + y_centre) + ")" ); Console.Write( "(" + (y + x_centre) + ", " + (-x + y_centre) + ")" ); Console.WriteLine( "(" + (-y + x_centre) + ", " + (-x + y_centre) + ")" ); } } } // Driver code public static void Main() { // To draw a circle of radius // 3 centered at (0, 0) midPointCircleDraw(0, 0, 3); } } // This code is contributed by nitin mittal. |
PHP
<?php // PHP program for implementing // Mid-Point Circle Drawing Algorithm // Implementing Mid-Point // Circle Drawing Algorithm function midPointCircleDraw( $x_centre , $y_centre , $r ) { $x = $r ; $y = 0; // Printing the initial // point on the axes // after translation echo "(" , $x + $x_centre , "," , $y + $y_centre , ")" ; // When radius is zero only a single // point will be printed if ( $r > 0) { echo "(" , $x + $x_centre , "," , - $y + $y_centre , ")" ; echo "(" , $y + $x_centre , "," , $x + $y_centre , ")" ; echo "(" ,- $y + $x_centre , "," , $x + $y_centre , ")" , "" ; } // Initializing the value of P $P = 1 - $r ; while ( $x > $y ) { $y ++; // Mid-point is inside // or on the perimeter if ( $P <= 0) $P = $P + 2 * $y + 1; // Mid-point is outside // the perimeter else { $x --; $P = $P + 2 * $y - 2 * $x + 1; } // All the perimeter points // have already been printed if ( $x < $y ) break ; // Printing the generated // point and its reflection // in the other octants // after translation echo "(" , $x + $x_centre , "," , $y + $y_centre , ")" ; echo "(" ,- $x + $x_centre , "," , $y + $y_centre , ")" ; echo "(" , $x + $x_centre , "," , - $y + $y_centre , ")" ; echo "(" ,- $x + $x_centre , "," , - $y + $y_centre , ")" , "" ; // If the generated point is // on the line x = y then // the perimeter points have // already been printed if ( $x != $y ) { echo "(" , $y + $x_centre , "," , $x + $y_centre , ")" ; echo "(" ,- $y + $x_centre , "," , $x + $y_centre , ")" ; echo "(" , $y + $x_centre , "," , - $x + $y_centre , ")" ; echo "(" ,- $y + $x_centre , "," , - $x + $y_centre , ")" , "" ; } } } // Driver code // To draw a circle of radius // 3 centered at (0, 0) midPointCircleDraw(0, 0, 3); // This code is contributed by nitin mittal. ?> |
Javascript
<script> // javascript program for implementing // Mid-Point Circle Drawing Algorithm // Implementing Mid-Point Circle // Drawing Algorithm function midPointCircleDraw(x_centre , y_centre , r) { var x = r, y = 0; // Printing the initial point // on the axes after translation document.write( "(" + (x + x_centre) + ", " + (y + y_centre) + ")" ); // When radius is zero only a single // point will be printed if (r > 0) { document.write( "(" + (x + x_centre) + ", " + (-y + y_centre) + ")" ); document.write( "(" + (y + x_centre) + ", " + (x + y_centre) + ")" ); document.write( "(" + (-y + x_centre) + ", " + (x + y_centre) + ")<br/>" ); } // Initialising the value of P var P = 1 - r; while (x > y) { y++; // Mid-point is inside or on the perimeter if (P <= 0) P = P + 2 * y + 1; // Mid-point is outside the perimeter else { x--; P = P + 2 * y - 2 * x + 1; } // All the perimeter points have already // been printed if (x < y) break ; // Printing the generated point and its // reflection in the other octants after // translation document.write( "(" + (x + x_centre) + ", " + (y + y_centre) + ")" ); document.write( "(" + (-x + x_centre) + ", " + (y + y_centre) + ")" ); document.write( "(" + (x + x_centre) + ", " + (-y + y_centre) + ")" ); document.write( "(" + (-x + x_centre) + ", " + (-y + y_centre) + ")<br/>" ); // If the generated point is on the // line x = y then the perimeter points // have already been printed if (x != y) { document.write( "(" + (y + x_centre) + ", " + (x + y_centre) + ")" ); document.write( "(" + (-y + x_centre) + ", " + (x + y_centre) + ")" ); document.write( "(" + (y + x_centre) + ", " + (-x + y_centre) + ")" ); document.write( "(" + (-y + x_centre) + ", " + (-x + y_centre) + ")<br/>" ); } } } // Driver code // To draw a circle of radius // 3 centered at (0, 0) midPointCircleDraw(0, 0, 3); // This code is contributed by umadevi9616 </script> |
输出：
(3, 0) (3, 0) (0, 3) (0, 3)(3, 1) (-3, 1) (3, -1) (-3, -1)(1, 3) (-1, 3) (1, -3) (-1, -3)(2, 2) (-2, 2) (2, -2) (-2, -2)
时间复杂性： O（x–y） 辅助空间： O（1） 参考资料： 中点圆算法 图像参考： 圆的八分之一 , 光栅化圆 ，其他图片是由极客为本文创作的 谢谢 图希娜·辛格 为了改进这篇文章。 本文由 纳巴内特·罗伊 .如果你喜欢GeekSforgek，并想贡献自己的力量，你也可以使用 写极客。组织 或者把你的文章寄去评论-team@geeksforgeeks.org.看到你的文章出现在Geeksforgeks主页上，并帮助其他极客。 如果您发现任何不正确的地方，或者您想分享有关上述主题的更多信息，请写下评论。
