给定一个无向无权图。我们的任务是找到它所形成的所有循环长度的乘积。 例1：
null
![图片[1]-无向图中所有圈长的乘积-yiteyi-C++库](https://www.yiteyi.com/wp-content/uploads/geeks/geeks_rajjj.png)

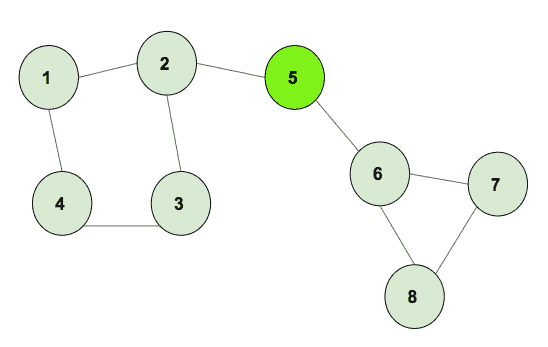

上图有两个长度分别为4和3的循环，循环长度的乘积为12。
例2：
![图片[2]-无向图中所有圈长的乘积-yiteyi-C++库](https://media.geeksforgeeks.org/wp-content/uploads/3gfg.png)
上图有两个长度分别为4和3的循环，循环长度的乘积为12。
方法： 使用 图着色法 ，用唯一的数字标记不同循环的所有顶点。一旦图形遍历完成，将所有类似的标记数字推送到邻接列表，并相应地打印邻接列表。下面给出了算法：
- 将边插入邻接列表。
- 调用DFS函数，该函数使用着色方法标记顶点。
- 只要存在部分访问的顶点，回溯到当前顶点，并用循环编号标记所有顶点。标记完所有顶点后，增加循环数。
- Dfs完成后，对边进行迭代，并将相同标记编号的边推送到另一个邻接列表中。
- 在另一个邻接列表中迭代，并使用map和cycle number保持循环中顶点数的计数
- 对循环数进行迭代，并将长度相乘，得到最终结果。
以下是上述方法的实施情况：
C++
// C++ program to find the // product of lengths of cycle #include <bits/stdc++.h> using namespace std; const int N = 100000; // variables to be used // in both functions vector< int > graph[N]; // Function to mark the vertex with // different colors for different cycles void dfs_cycle( int u, int p, int color[], int mark[], int par[], int & cyclenumber) { // already (completely) visited vertex. if (color[u] == 2) { return ; } // seen vertex, but was not completely // visited -> cycle detected. // backtrack based on parents to find // the complete cycle. if (color[u] == 1) { cyclenumber++; int cur = p; mark[cur] = cyclenumber; // backtrack the vertex which are // in the current cycle thats found while (cur != u) { cur = par[cur]; mark[cur] = cyclenumber; } return ; } par[u] = p; // partially visited. color[u] = 1; // simple dfs on graph for ( int v : graph[u]) { // if it has not been visited previously if (v == par[u]) { continue ; } dfs_cycle(v, u, color, mark, par, cyclenumber); } // completely visited. color[u] = 2; } // add the edges to the graph void addEdge( int u, int v) { graph[u].push_back(v); graph[v].push_back(u); } // Function to print the cycles int productLength( int edges, int mark[], int & cyclenumber) { unordered_map< int , int > mp; // push the edges that into the // cycle adjacency list for ( int i = 1; i <= edges; i++) { if (mark[i] != 0) mp[mark[i]]++; } int cnt = 1; // product all the length of cycles for ( int i = 1; i <= cyclenumber; i++) { cnt = cnt * mp[i]; } if (cyclenumber == 0) cnt = 0; return cnt; } // Driver Code int main() { // add edges addEdge(1, 2); addEdge(2, 3); addEdge(3, 4); addEdge(4, 6); addEdge(4, 7); addEdge(5, 6); addEdge(3, 5); addEdge(7, 8); addEdge(6, 10); addEdge(5, 9); addEdge(10, 11); addEdge(11, 12); addEdge(11, 13); addEdge(12, 13); // arrays required to color the // graph, store the parent of node int color[N]; int par[N]; // mark with unique numbers int mark[N]; // store the numbers of cycle int cyclenumber = 0; int edges = 13; // call DFS to mark the cycles dfs_cycle(1, 0, color, mark, par, cyclenumber); // function to print the cycles cout << productLength(edges, mark, cyclenumber); return 0; } |
JAVA
// Java program to find the // product of lengths of cycle import java.io.*; import java.util.*; class GFG { static int N = 100000 ; static int cyclenumber; // variables to be used // in both functions //@SuppressWarnings("unchecked") static Vector<Integer>[] graph = new Vector[N]; // This static block is used to initialize // array of Vector, otherwise it will throw // NullPointerException static { for ( int i = 0 ; i < N; i++) graph[i] = new Vector<>(); } // Function to mark the vertex with // different colors for different cycles static void dfs_cycle( int u, int p, int [] color, int [] mark, int [] par) { // already (completely) visited vertex. if (color[u] == 2 ) return ; // seen vertex, but was not completely // visited -> cycle detected. // backtrack based on parents to find // the complete cycle. if (color[u] == 1 ) { cyclenumber++; int cur = p; mark[cur] = cyclenumber; // backtrack the vertex which are // in the current cycle thats found while (cur != u) { cur = par[cur]; mark[cur] = cyclenumber; } return ; } par[u] = p; // partially visited. color[u] = 1 ; // simple dfs on graph for ( int v : graph[u]) { // if it has not been visited previously if (v == par[u]) { continue ; } dfs_cycle(v, u, color, mark, par); } // completely visited. color[u] = 2 ; } // add the edges to the graph static void addEdge( int u, int v) { graph[u].add(v); graph[v].add(u); } // Function to print the cycles static int productLength( int edges, int [] mark) { HashMap<Integer, Integer> mp = new HashMap<>(); // push the edges that into the // cycle adjacency list for ( int i = 1 ; i <= edges; i++) { if (mark[i] != 0 ) { mp.put(mark[i], mp.get(mark[i]) == null ? 1 : mp.get(mark[i]) + 1 ); } } int cnt = 1 ; // product all the length of cycles for ( int i = 1 ; i <= cyclenumber; i++) { cnt = cnt * mp.get(i); } if (cyclenumber == 0 ) cnt = 0 ; return cnt; } // Driver Code public static void main(String[] args) throws IOException { // add edges addEdge( 1 , 2 ); addEdge( 2 , 3 ); addEdge( 3 , 4 ); addEdge( 4 , 6 ); addEdge( 4 , 7 ); addEdge( 5 , 6 ); addEdge( 3 , 5 ); addEdge( 7 , 8 ); addEdge( 6 , 10 ); addEdge( 5 , 9 ); addEdge( 10 , 11 ); addEdge( 11 , 12 ); addEdge( 11 , 13 ); addEdge( 12 , 13 ); // arrays required to color the // graph, store the parent of node int [] color = new int [N]; int [] par = new int [N]; // mark with unique numbers int [] mark = new int [N]; // store the numbers of cycle cyclenumber = 0 ; int edges = 13 ; // call DFS to mark the cycles dfs_cycle( 1 , 0 , color, mark, par); // function to print the cycles System.out.println(productLength(edges, mark)); } } // This code is contributed by // sanjeev2552 |
Python3
# Python3 program to find the # product of lengths of cycle from collections import defaultdict # Function to mark the vertex with # different colors for different cycles def dfs_cycle(u, p, color, mark, par): global cyclenumber # already (completely) visited vertex. if color[u] = = 2 : return # seen vertex, but was not completely # visited -> cycle detected. # backtrack based on parents to find # the complete cycle. if color[u] = = 1 : cyclenumber + = 1 cur = p mark[cur] = cyclenumber # backtrack the vertex which are # in the current cycle thats found while cur ! = u: cur = par[cur] mark[cur] = cyclenumber return par[u] = p # partially visited. color[u] = 1 # simple dfs on graph for v in graph[u]: # if it has not been visited previously if v = = par[u]: continue dfs_cycle(v, u, color, mark, par) # completely visited. color[u] = 2 # add the edges to the graph def addEdge(u, v): graph[u].append(v) graph[v].append(u) # Function to print the cycles def productLength(edges, mark, cyclenumber): mp = defaultdict( lambda : 0 ) # push the edges that into the # cycle adjacency list for i in range ( 1 , edges + 1 ): if mark[i] ! = 0 : mp[mark[i]] + = 1 cnt = 1 # product all the length of cycles for i in range ( 1 , cyclenumber + 1 ): cnt = cnt * mp[i] if cyclenumber = = 0 : cnt = 0 return cnt # Driver Code if __name__ = = "__main__" : N = 100000 graph = [[] for i in range (N)] # add edges addEdge( 1 , 2 ) addEdge( 2 , 3 ) addEdge( 3 , 4 ) addEdge( 4 , 6 ) addEdge( 4 , 7 ) addEdge( 5 , 6 ) addEdge( 3 , 5 ) addEdge( 7 , 8 ) addEdge( 6 , 10 ) addEdge( 5 , 9 ) addEdge( 10 , 11 ) addEdge( 11 , 12 ) addEdge( 11 , 13 ) addEdge( 12 , 13 ) # arrays required to color the # graph, store the parent of node color, par = [ None ] * N, [ None ] * N # mark with unique numbers mark = [ None ] * N # store the numbers of cycle cyclenumber, edges = 0 , 13 # call DFS to mark the cycles dfs_cycle( 1 , 0 , color, mark, par) # function to print the cycles print (productLength(edges, mark, cyclenumber)) # This code is contributed by Rituraj Jain |
C#
// C# program to find the // product of lengths of cycle using System; using System.Collections.Generic; class GFG { static int N = 100000; static int cyclenumber; // variables to be used // in both functions //@SuppressWarnings("unchecked") static List< int >[] graph = new List< int >[N]; // This static block is used to initialize // array of List, otherwise it will throw // NullPointerException // Function to mark the vertex with // different colors for different cycles static void dfs_cycle( int u, int p, int [] color, int [] mark, int [] par) { // already (completely) visited vertex. if (color[u] == 2) return ; // seen vertex, but was not completely // visited -> cycle detected. // backtrack based on parents to find // the complete cycle. if (color[u] == 1) { cyclenumber++; int cur = p; mark[cur] = cyclenumber; // backtrack the vertex which are // in the current cycle thats found while (cur != u) { cur = par[cur]; mark[cur] = cyclenumber; } return ; } par[u] = p; // partially visited. color[u] = 1; // simple dfs on graph foreach ( int v in graph[u]) { // if it has not been visited previously if (v == par[u]) { continue ; } dfs_cycle(v, u, color, mark, par); } // completely visited. color[u] = 2; } // add the edges to the graph static void addEdge( int u, int v) { graph[u].Add(v); graph[v].Add(u); } // Function to print the cycles static int productLength( int edges, int [] mark) { Dictionary< int , int > mp = new Dictionary< int , int >(); // push the edges that into the // cycle adjacency list for ( int i = 1; i <= edges; i++) { if (mark[i] != 0) { if (mp.ContainsKey(mark[i])) mp[mark[i]] = mp[mark[i]] + 1; else mp.Add(mark[i], 1); } } int cnt = 1; // product all the length of cycles for ( int i = 1; i <= cyclenumber; i++) { cnt = cnt * mp[i]; } if (cyclenumber == 0) cnt = 0; return cnt; } // Driver Code public static void Main(String[] args) { for ( int i = 0; i < N; i++) graph[i] = new List< int >(); // add edges addEdge(1, 2); addEdge(2, 3); addEdge(3, 4); addEdge(4, 6); addEdge(4, 7); addEdge(5, 6); addEdge(3, 5); addEdge(7, 8); addEdge(6, 10); addEdge(5, 9); addEdge(10, 11); addEdge(11, 12); addEdge(11, 13); addEdge(12, 13); // arrays required to color the // graph, store the parent of node int [] color = new int [N]; int [] par = new int [N]; // mark with unique numbers int [] mark = new int [N]; // store the numbers of cycle cyclenumber = 0; int edges = 13; // call DFS to mark the cycles dfs_cycle(1, 0, color, mark, par); // function to print the cycles Console.WriteLine(productLength(edges, mark)); } } // This code is contributed by 29AjayKumar |
Javascript
<script> // JavaScript program to find the // product of lengths of cycle var N = 100000; var cyclenumber; // variables to be used // in both functions //@SuppressWarnings("unchecked") var graph = Array.from(Array(N), ()=>Array()); // This static block is used to initialize // array of List, otherwise it will throw // NullPointerException // Function to mark the vertex with // different colors for different cycles function dfs_cycle(u, p, color, mark, par) { // already (completely) visited vertex. if (color[u] == 2) return ; // seen vertex, but was not completely // visited -> cycle detected. // backtrack based on parents to find // the complete cycle. if (color[u] == 1) { cyclenumber++; var cur = p; mark[cur] = cyclenumber; // backtrack the vertex which are // in the current cycle thats found while (cur != u) { cur = par[cur]; mark[cur] = cyclenumber; } return ; } par[u] = p; // partially visited. color[u] = 1; // simple dfs on graph for ( var v of graph[u]) { // if it has not been visited previously if (v == par[u]) { continue ; } dfs_cycle(v, u, color, mark, par); } // completely visited. color[u] = 2; } // add the edges to the graph function addEdge(u, v) { graph[u].push(v); graph[v].push(u); } // Function to print the cycles function productLength(edges, mark) { var mp = new Map(); // push the edges that into the // cycle adjacency list for ( var i = 1; i <= edges; i++) { if (mark[i] != 0) { if (mp.has(mark[i])) mp.set(mark[i], mp.get(mark[i])+1); else mp.set(mark[i], 1); } } var cnt = 1; // product all the length of cycles for ( var i = 1; i <= cyclenumber; i++) { cnt = cnt * mp.get(i); } if (cyclenumber == 0) cnt = 0; return cnt; } // Driver Code // add edges addEdge(1, 2); addEdge(2, 3); addEdge(3, 4); addEdge(4, 6); addEdge(4, 7); addEdge(5, 6); addEdge(3, 5); addEdge(7, 8); addEdge(6, 10); addEdge(5, 9); addEdge(10, 11); addEdge(11, 12); addEdge(11, 13); addEdge(12, 13); // arrays required to color the // graph, store the parent of node var color = Array(N).fill(0); var par = Array(N).fill(0); // mark with unique numbers var mark = Array(N).fill(0); // store the numbers of cycle cyclenumber = 0; var edges = 13; // call DFS to mark the cycles dfs_cycle(1, 0, color, mark, par); // function to print the cycles document.write(productLength(edges, mark)); </script> |
输出：
12
时间复杂性 ：O（N），其中N是图中的节点数。
