在图论中， 维辛定理 表示每个简单的无向图都可以使用最多比图的最大度“d”大一的多个颜色进行边着色。在简单意义上，这个定理表明，简单图的色指数可以是 “是的” 或 d+1 图的边着色所需的最小颜色数称为色度指数。
null
![图片[1]-维辛定理-yiteyi-C++库](https://www.yiteyi.com/wp-content/uploads/geeks/geeks_Last-review.png)

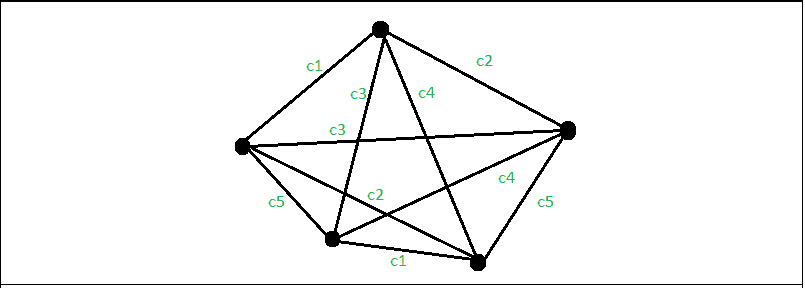

上图G中有5个顶点。最高阶数为4，但我们需要5种颜色，这样就不会有任何边与相邻顶点的任何边共享相同的颜色，如上图所示。因此，该图所需的有效颜色数等于5，即（‘最高度’+1）。 注： 上图中的c1、c2、c3、c4和c5表示不同的颜色。
例如：
输入： v=3，e=3 {{ 1, 2, -1 }, { 2, 3, -1 }, { 3, 1, -1 }}; 输出： 3种颜色需要生成有效的边着色： 介于v（1）：1和v（2）：2之间的颜色是：颜色1 介于v（1）：2和v（2）：3之间的颜色是：颜色2 介于v（1）：3和v（2）：1之间的颜色是：颜色3
算法：
- 初始化边数后，指定每条边的顶点对
- 根据定理给图的边着色
- 指定一种颜色，然后检查其有效性
- 检查任何两个相邻边是否具有相同的颜色，然后增加颜色，转到标志，然后尝试下一种颜色
- 重复这个步骤，直到所有的边都根据这个定理得到它的颜色
- 完成后，打印顶点之间所有边的颜色
以下是上述方法的实施情况：
C++
// C++ program to illustrate // Vizing's Theorem #include <iostream> using namespace std; // Function to print the color of the edge void colorEdge( int edges[][3], int e) { int color; // Assign a color to every edge 'i'. for ( int i = 0; i < e; i++) { color = 1; flag: // Assign a color and // then check its validity. edges[i][2] = color; for ( int j = 0; j < e; j++) { if (j == i) continue ; // If the color of edges // is adjacent to edge i if ((edges[i][0] == edges[j][0]) || (edges[i][1] == edges[j][0]) || (edges[i][0] == edges[j][1]) || (edges[i][1] == edges[j][1])) { // If the color matches if (edges[i][2] == edges[j][2]) { // Increment the color, // denotes the change in color. color++; // goes back, and assigns // the next color. goto flag; } } } } // Check the maximum color from all the edge colors int maxColor = -1; for ( int i = 0; i < e; i++) { maxColor = max(maxColor, edges[i][2]); } cout << maxColor << " colors needs to generate a valid edge " "coloring:" << endl; for ( int i = 0; i < e; i++) { cout << "color between v(1): " << edges[i][0] << " and v(2): " << edges[i][1] << " is: color " << edges[i][2] << endl; } } // Driver Code int main() { // initialize the number // of edges of the graph int e = 5; // initialize the vertex // pair of every edge in a graph int edges[e][3] = { { 1, 2, -1 }, { 2, 3, -1 }, { 3, 4, -1 }, { 4, 1, -1 }, { 1, 3, -1 } }; colorEdge(edges, e); return 0; } |
JAVA
// Java program to illustrate // Vizing's Theorem import java.util.*; public class VizingsTheorem { // Function to find the chromatic index public void colorEdge( int [][] edges, int e) { // Initialize edge to first edge and // color to color 1 int i = 0 , color = 1 ; // Repeat until all edges are done coloring while (i < e) { // Give the selected edge a color edges[i][ 2 ] = color; boolean flag = false ; // Iterate through all others edges to check for ( int j = 0 ; j < e; j++) { // Ignore if same edge if (j == i) continue ; // Check if one vertex is similar if ((edges[i][ 0 ] == edges[j][ 0 ]) || (edges[i][ 1 ] == edges[j][ 0 ]) || (edges[i][ 0 ] == edges[j][ 1 ]) || (edges[i][ 1 ] == edges[j][ 1 ])) { // Check if color is similar if (edges[i][ 2 ] == edges[j][ 2 ]) { // Increment the color by 1 color++; flag = true ; break ; } } } // If same color faced then repeat again if (flag == true ) { continue ; } // Or else proceed to a // new vertex with color 1 color = 1 ; i++; } // Check the maximum color from all the edge colors int maxColor = - 1 ; for (i = 0 ; i < e; i++) { maxColor = Math.max(maxColor, edges[i][ 2 ]); } System.out.println( maxColor + " colors needs to generate" + " a valid edge coloring:" ); for (i = 0 ; i < e; i++) { System.out.println( "color between v(1): " + edges[i][ 0 ] + " and v(2): " + edges[i][ 1 ] + " is: color " + edges[i][ 2 ]); } } // Driver code public static void main(String[] args) { // Number of edges int e = 5 ; // Edge list int [][] edges = new int [e][ 3 ]; // Initialize all edge colors to 0 for ( int i = 0 ; i < e; i++) { edges[i][ 2 ] = - 1 ; } // Edges edges[ 0 ][ 0 ] = 1 ; edges[ 0 ][ 1 ] = 2 ; edges[ 1 ][ 0 ] = 2 ; edges[ 1 ][ 1 ] = 3 ; edges[ 2 ][ 0 ] = 3 ; edges[ 2 ][ 1 ] = 4 ; edges[ 3 ][ 0 ] = 4 ; edges[ 3 ][ 1 ] = 1 ; edges[ 4 ][ 0 ] = 1 ; edges[ 4 ][ 1 ] = 3 ; // Run the function VizingsTheorem c = new VizingsTheorem(); c.colorEdge(edges, e); } } |
Python3
def colorEdge(edges, e): # Initialize edge to first edge and # color to color 1 i = 0 color = 1 # Repeat until all edges are done coloring while (i < e): # Give the selected edge a color edges[i][ 2 ] = color flag = False # Iterate through all others edges to check for j in range (e): # Ignore if same edge if (j = = i): continue # Check if one vertex is similar if ((edges[i][ 0 ] = = edges[j][ 0 ]) or (edges[i][ 1 ] = = edges[j][ 0 ]) or (edges[i][ 0 ] = = edges[j][ 1 ]) or (edges[i][ 1 ] = = edges[j][ 1 ])): # Check if color is similar if (edges[i][ 2 ] = = edges[j][ 2 ]): # Increment the color by 1 color + = 1 flag = True break # If same color faced then repeat again if (flag = = True ): continue # Or else proceed to a new vertex with color 1 color = 1 i + = 1 # Check the maximum color from all the edge colors maxColor = - 1 for i in range (e): maxColor = max (maxColor, edges[i][ 2 ]) print ( str (maxColor) + " colors needs to generate a valid edge coloring:" ) for i in range (e): print ( "color between v(1): " + str (edges[i][ 0 ]) + " and v(2): " + str (edges[i][ 1 ]) + " is: color " + str (edges[i][ 2 ])) # Driver code if __name__ = = "__main__" : # Number of edges e = 5 # Edge list edges = [[ 0 for _ in range ( 3 )] for _ in range (e)] # Initialize all edge colors to 0 for i in range (e): edges[i][ 2 ] = - 1 # Edges edges[ 0 ][ 0 ] = 1 edges[ 0 ][ 1 ] = 2 edges[ 1 ][ 0 ] = 2 edges[ 1 ][ 1 ] = 3 edges[ 2 ][ 0 ] = 3 edges[ 2 ][ 1 ] = 4 edges[ 3 ][ 0 ] = 4 edges[ 3 ][ 1 ] = 1 edges[ 4 ][ 0 ] = 1 edges[ 4 ][ 1 ] = 3 # Run the function colorEdge(edges, e) |
Javascript
<script> // JavaScript program to illustrate // Vizing's Theorem // Function to find the chromatic index function colorEdge(edges, e) { // Initialize edge to first edge and // color to color 1 var i = 0, color = 1; // Repeat until all edges are done coloring while (i < e) { // Give the selected edge a color edges[i][2] = color; var flag = false ; // Iterate through all others edges to check for ( var j = 0; j < e; j++) { // Ignore if same edge if (j == i) continue ; // Check if one vertex is similar if ((edges[i][0] == edges[j][0]) || (edges[i][1] == edges[j][0]) || (edges[i][0] == edges[j][1]) || (edges[i][1] == edges[j][1])) { // Check if color is similar if (edges[i][2] == edges[j][2]) { // Increment the color by 1 color++; flag = true ; break ; } } } // If same color faced then repeat again if (flag == true ) { continue ; } // Or else proceed to a // new vertex with color 1 color = 1; i++; } // Check the maximum color from all the edge colors var maxColor = -1; for (i = 0; i < e; i++) { maxColor = Math.max(maxColor, edges[i][2]); } document.write( maxColor + " colors needs to generate" + " a valid edge coloring:<br>" ); for (i = 0; i < e; i++) { document.write( "color between v(1): " + edges[i][0] + " and v(2): " + edges[i][1] + " is: color " + edges[i][2] + "<br>" ); } } // Driver code // Number of edges var e = 5; // Edge list var edges = Array.from(Array(e), ()=>Array(3)); // Initialize all edge colors to 0 for ( var i = 0; i < e; i++) { edges[i][2] = -1; } // Edges edges[0][0] = 1; edges[0][1] = 2; edges[1][0] = 2; edges[1][1] = 3; edges[2][0] = 3; edges[2][1] = 4; edges[3][0] = 4; edges[3][1] = 1; edges[4][0] = 1; edges[4][1] = 3; // Run the function colorEdge(edges, e); </script> |
输出
3 colors needs to generate a valid edge coloring:color between v(1): 1 and v(2): 2 is: color 1color between v(1): 2 and v(2): 3 is: color 2color between v(1): 3 and v(2): 4 is: color 1color between v(1): 4 and v(2): 1 is: color 2color between v(1): 1 and v(2): 3 is: color 3
