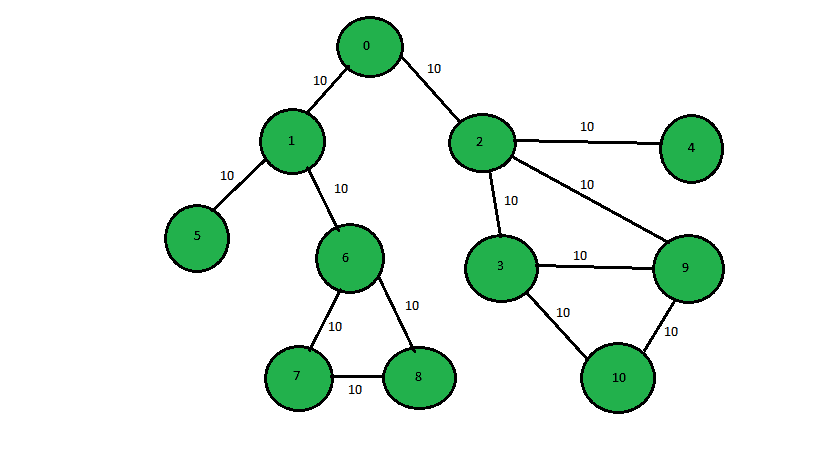

给予 图表 ，任务是打印一个图的DFS遍历，该图包含包括回溯在内的每个步骤。
null
![图片[1]-逐步打印DFS遍历（也可回溯）-yiteyi-C++库](https://www.yiteyi.com/wp-content/uploads/geeks/geeks_geekfofgeek1.png)
1st step:- 0 -> 12nd step:- 1 -> 53rd step:- 5 -> 1 (backtracking step)4th step:- 1 -> 6...and so on till all the nodes are visited. Dfs step-wise(including backtracking) is:0 1 5 1 6 7 8 7 6 1 0 2 4 2 9 3 10
注： 在上图中，边缘之间的权重刚刚添加。它在DFS遍历中没有任何作用。
![图片[2]-逐步打印DFS遍历（也可回溯）-yiteyi-C++库](https://www.yiteyi.com/wp-content/uploads/geeks/geeks_geekfofgeek_dfs_graph.png)
方法： DFS 具有 回溯 将在这里使用。首先，同时使用DFS访问每个节点，并跟踪以前使用的边缘和父节点。如果某个节点访问了所有相邻节点，则使用上次使用的边回溯并打印节点。继续这些步骤，在每一步中，父节点都将成为当前节点。继续上述步骤，以找到图的完整DFS遍历。
以下是上述方法的实施情况：
C++
// C++ program to print the complete // DFS-traversal of graph // using back-tracking #include <bits/stdc++.h> using namespace std; const int N = 1000; vector< int > adj[N]; // Function to print the complete DFS-traversal void dfsUtil( int u, int node, bool visited[], vector<pair< int , int > > road_used, int parent, int it) { int c = 0; // Check if all th node is visited or not // and count unvisited nodes for ( int i = 0; i < node; i++) if (visited[i]) c++; // If all the node is visited return; if (c == node) return ; // Mark not visited node as visited visited[u] = true ; // Track the current edge road_used.push_back({ parent, u }); // Print the node cout << u << " " ; // Check for not visited node and proceed with it. for ( int x : adj[u]) { // call the DFs function if not visited if (!visited[x]) dfsUtil(x, node, visited, road_used, u, it + 1); } // Backtrack through the last // visited nodes for ( auto y : road_used) if (y.second == u) dfsUtil(y.first, node, visited, road_used, u, it + 1); } // Function to call the DFS function // which prints the DFS-traversal stepwise void dfs( int node) { // Create a array of visited node bool visited[node]; // Vector to track last visited road vector<pair< int , int > > road_used; // Initialize all the node with false for ( int i = 0; i < node; i++) visited[i] = false ; // call the function dfsUtil(0, node, visited, road_used, -1, 0); } // Function to insert edges in Graph void insertEdge( int u, int v) { adj[u].push_back(v); adj[v].push_back(u); } // Driver Code int main() { // number of nodes and edges in the graph int node = 11, edge = 13; // Function call to create the graph insertEdge(0, 1); insertEdge(0, 2); insertEdge(1, 5); insertEdge(1, 6); insertEdge(2, 4); insertEdge(2, 9); insertEdge(6, 7); insertEdge(6, 8); insertEdge(7, 8); insertEdge(2, 3); insertEdge(3, 9); insertEdge(3, 10); insertEdge(9, 10); // Call the function to print dfs(node); return 0; } |
JAVA
// Java program to print the complete // DFS-traversal of graph // using back-tracking import java.io.*; import java.util.*; class GFG { static int N = 1000 ; static ArrayList<ArrayList<Integer>> adj = new ArrayList<ArrayList<Integer>>(); // Function to print the complete DFS-traversal static void dfsUtil( int u, int node, boolean visited[], ArrayList<ArrayList<Integer>> road_used, int parent, int it) { int c = 0 ; // Check if all th node is visited or not // and count unvisited nodes for ( int i = 0 ; i < node; i++) if (visited[i]) c++; // If all the node is visited return; if (c == node) return ; // Mark not visited node as visited visited[u] = true ; // Track the current edge road_used.add( new ArrayList<Integer>(Arrays.asList( parent, u ))); // Print the node System.out.print(u + " " ); // Check for not visited node and proceed with it. for ( int x : adj.get(u)) { // call the DFs function if not visited if (!visited[x]) { dfsUtil(x, node, visited, road_used, u, it + 1 ); } } // Backtrack through the last // visited nodes for ( int y = 0 ; y < road_used.size(); y++) { if (road_used.get(y).get( 1 ) == u) { dfsUtil(road_used.get(y).get( 0 ), node, visited,road_used, u, it + 1 ); } } } // Function to call the DFS function // which prints the DFS-traversal stepwise static void dfs( int node) { // Create a array of visited node boolean [] visited = new boolean [node]; // Vector to track last visited road ArrayList<ArrayList<Integer>> road_used = new ArrayList<ArrayList<Integer>>(); // Initialize all the node with false for ( int i = 0 ; i < node; i++) { visited[i] = false ; } // call the function dfsUtil( 0 , node, visited, road_used, - 1 , 0 ); } // Function to insert edges in Graph static void insertEdge( int u, int v) { adj.get(u).add(v); adj.get(v).add(u); } // Driver Code public static void main (String[] args) { // number of nodes and edges in the graph int node = 11 , edge = 13 ; for ( int i = 0 ; i < N; i++) { adj.add( new ArrayList<Integer>()); } // Function call to create the graph insertEdge( 0 , 1 ); insertEdge( 0 , 2 ); insertEdge( 1 , 5 ); insertEdge( 1 , 6 ); insertEdge( 2 , 4 ); insertEdge( 2 , 9 ); insertEdge( 6 , 7 ); insertEdge( 6 , 8 ); insertEdge( 7 , 8 ); insertEdge( 2 , 3 ); insertEdge( 3 , 9 ); insertEdge( 3 , 10 ); insertEdge( 9 , 10 ); // Call the function to print dfs(node); } } // This code is contributed by avanitrachhadiya2155 |
Python3
# Python3 program to print the # complete DFS-traversal of graph # using back-tracking N = 1000 adj = [[] for i in range (N)] # Function to print the complete DFS-traversal def dfsUtil(u, node,visited, road_used, parent, it): c = 0 # Check if all th node is visited # or not and count unvisited nodes for i in range (node): if (visited[i]): c + = 1 # If all the node is visited return if (c = = node): return # Mark not visited node as visited visited[u] = True # Track the current edge road_used.append([parent, u]) # Print the node print (u, end = " " ) # Check for not visited node # and proceed with it. for x in adj[u]: # Call the DFs function # if not visited if ( not visited[x]): dfsUtil(x, node, visited, road_used, u, it + 1 ) # Backtrack through the last # visited nodes for y in road_used: if (y[ 1 ] = = u): dfsUtil(y[ 0 ], node, visited, road_used, u, it + 1 ) # Function to call the DFS function # which prints the DFS-traversal stepwise def dfs(node): # Create a array of visited node visited = [ False for i in range (node)] # Vector to track last visited road road_used = [] # Initialize all the node with false for i in range (node): visited[i] = False # Call the function dfsUtil( 0 , node, visited, road_used, - 1 , 0 ) # Function to insert edges in Graph def insertEdge(u, v): adj[u].append(v) adj[v].append(u) # Driver Code if __name__ = = '__main__' : # Number of nodes and edges in the graph node = 11 edge = 13 # Function call to create the graph insertEdge( 0 , 1 ) insertEdge( 0 , 2 ) insertEdge( 1 , 5 ) insertEdge( 1 , 6 ) insertEdge( 2 , 4 ) insertEdge( 2 , 9 ) insertEdge( 6 , 7 ) insertEdge( 6 , 8 ) insertEdge( 7 , 8 ) insertEdge( 2 , 3 ) insertEdge( 3 , 9 ) insertEdge( 3 , 10 ) insertEdge( 9 , 10 ) # Call the function to print dfs(node) # This code is contributed by mohit kumar 29 |
C#
// C# program for the above approach using System; using System.Collections.Generic; public class GFG { static int N = 1000; static List<List< int > > adj = new List<List< int > >(); // Function to print the complete DFS-traversal static void dfsUtil( int u, int node, bool [] visited, List<List< int > > road_used, int parent, int it) { int c = 0; // Check if all th node is visited or not // and count unvisited nodes for ( int i = 0; i < node; i++) if (visited[i]) c++; // If all the node is visited return; if (c == node) return ; // Mark not visited node as visited visited[u] = true ; // Track the current edge road_used.Add( new List< int >() { parent, u }); // Print the node Console.Write(u + " " ); // Check for not visited node and proceed with it. foreach ( int x in adj[u]) { // call the DFs function if not visited if (!visited[x]) { dfsUtil(x, node, visited, road_used, u, it + 1); } } // Backtrack through the last // visited nodes for ( int y = 0; y < road_used.Count; y++) { if (road_used[y][1] == u) { dfsUtil(road_used[y][0], node, visited, road_used, u, it + 1); } } } // Function to call the DFS function // which prints the DFS-traversal stepwise static void dfs( int node) { // Create a array of visited node bool [] visited = new bool [node]; // Vector to track last visited road List<List< int > > road_used = new List<List< int > >(); // Initialize all the node with false for ( int i = 0; i < node; i++) { visited[i] = false ; } // call the function dfsUtil(0, node, visited, road_used, -1, 0); } // Function to insert edges in Graph static void insertEdge( int u, int v) { adj[u].Add(v); adj[v].Add(u); } static public void Main() { // number of nodes and edges in the graph int node = 11; for ( int i = 0; i < N; i++) { adj.Add( new List< int >()); } // Function call to create the graph insertEdge(0, 1); insertEdge(0, 2); insertEdge(1, 5); insertEdge(1, 6); insertEdge(2, 4); insertEdge(2, 9); insertEdge(6, 7); insertEdge(6, 8); insertEdge(7, 8); insertEdge(2, 3); insertEdge(3, 9); insertEdge(3, 10); insertEdge(9, 10); // Call the function to print dfs(node); } } // This code is contributed by rag2127 |
Javascript
<script> // Javascript program to print the complete // DFS-traversal of graph // using back-tracking let N = 1000; let adj =[]; // Function to print the complete DFS-traversal function dfsUtil(u,node,visited,road_used,parent,it) { let c = 0; // Check if all th node is visited or not // and count unvisited nodes for (let i = 0; i < node; i++) if (visited[i]) c++; // If all the node is visited return; if (c == node) return ; // Mark not visited node as visited visited[u] = true ; // Track the current edge road_used.push([ parent, u ]); // Print the node document.write(u + " " ); // Check for not visited node and proceed with it. for (let x=0;x<adj[u].length;x++) { // call the DFs function if not visited if (!visited[adj[u][x]]) { dfsUtil(adj[u][x], node, visited, road_used, u, it + 1); } } // Backtrack through the last // visited nodes for (let y = 0; y < road_used.length; y++) { if (road_used[y][1] == u) { dfsUtil(road_used[y][0], node, visited,road_used, u, it + 1); } } } // Function to call the DFS function // which prints the DFS-traversal stepwise function dfs(node) { // Create a array of visited node let visited = new Array(node); // Vector to track last visited road let road_used = []; // Initialize all the node with false for (let i = 0; i < node; i++) { visited[i] = false ; } // call the function dfsUtil(0, node, visited, road_used, -1, 0); } // Function to insert edges in Graph function insertEdge(u,v) { adj[u].push(v); adj[v].push(u); } // Driver Code let node = 11, edge = 13; for (let i = 0; i < N; i++) { adj.push([]); } // Function call to create the graph insertEdge(0, 1); insertEdge(0, 2); insertEdge(1, 5); insertEdge(1, 6); insertEdge(2, 4); insertEdge(2, 9); insertEdge(6, 7); insertEdge(6, 8); insertEdge(7, 8); insertEdge(2, 3); insertEdge(3, 9); insertEdge(3, 10); insertEdge(9, 10); // Call the function to print dfs(node); // This code is contributed by unknown2108 </script> 9 |
输出：
0 1 5 1 6 7 8 7 6 1 0 2 4 2 9 3 10
