给定两棵二叉树，任务是检查这两棵二叉树是否是彼此的镜像。 二叉树的镜像： 二叉树T的镜像是另一棵二叉树M（T），所有非叶节点的左右子节点互换。
null
![图片[1]-使用水平顺序遍历检查两棵树是否是彼此的镜像-yiteyi-C++库](https://www.yiteyi.com/wp-content/uploads/geeks/geeks_Untitled-drawing-18.jpg)

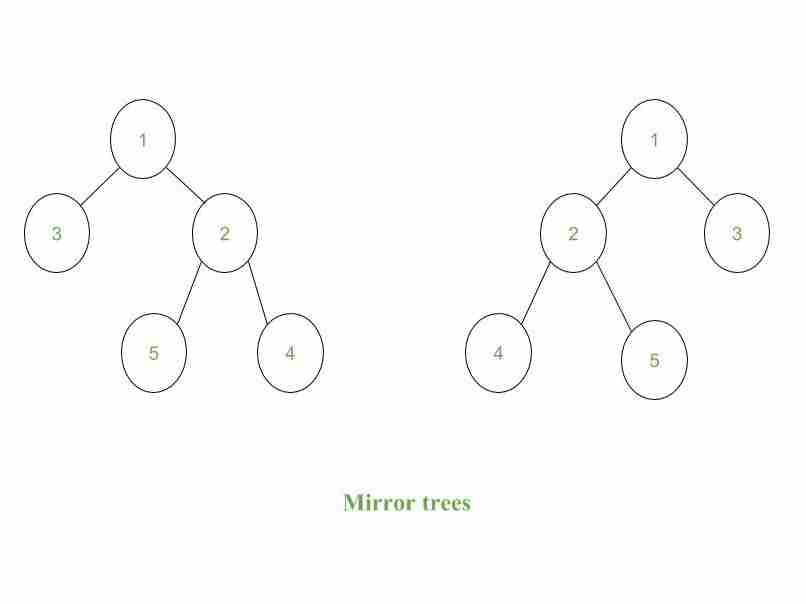

上图中的树木是彼此的镜子。
A. 递归解 还有 按序遍历迭代法 为了检查这两棵二叉树是否是彼此的镜像，我们已经讨论过了。在本文中，我们使用 水平顺序遍历 已经讨论过了。 其思想是使用一个队列，其中需要检查是否相等的两棵树的两个节点同时存在。在级别顺序遍历的每个步骤中，从队列中获取两个节点，检查它们的相等性，然后插入需要检查相等性的这些节点的下两个子节点。在插入步骤中，插入第一个树节点的第一个左子节点和第二个树节点的右子节点。在插入第一个树节点的右子节点和第二个树节点的左子节点之后。如果在任何阶段，一个节点为空，另一个为空，那么这两棵树都不是彼此的镜像。 以下是上述方法的实施情况：
C++
// C++ implementation to check whether the two // binary trees are mirrors of each other or not #include <bits/stdc++.h> using namespace std; // Structure of a node in binary tree struct Node { int data; struct Node *left, *right; }; // Function to create and return // a new node for a binary tree struct Node* newNode( int data) { struct Node* temp = new Node(); temp->data = data; temp->left = temp->right = NULL; return temp; } // Function to check whether the two binary trees // are mirrors of each other or not string areMirrors(Node* a, Node* b) { // If both are NULL, then are mirror. if (a == NULL && b == NULL) return "Yes" ; // If only one is NULL, then not // mirror. if (a == NULL || b == NULL) return "No" ; queue<Node*> q; // Push root of both trees in queue. q.push(a); q.push(b); while (!q.empty()) { // Pop two elements of queue, to // get two nodes and check if they // are symmetric. a = q.front(); q.pop(); b = q.front(); q.pop(); // If data value of both nodes is // not same, then not mirror. if (a->data != b->data) return "No" ; // Push left child of first tree node // and right child of second tree node // into queue if both are not NULL. if (a->left && b->right) { q.push(a->left); q.push(b->right); } // If any one of the nodes is NULL and // other is not NULL, then not mirror. else if (a->left || b->right) return "No" ; // Push right child of first tree node // and left child of second tree node // into queue if both are not NULL. if (a->right && b->left) { q.push(a->right); q.push(b->left); } // If any one of the nodes is NULL and // other is not NULL, then not mirror. else if (a->right || b->left) return "No" ; } return "Yes" ; } // Driver Code int main() { // 1st binary tree formation /* 1 / 3 2 / 5 4 */ Node* root1 = newNode(1); root1->left = newNode(3); root1->right = newNode(2); root1->right->left = newNode(5); root1->right->right = newNode(4); // 2nd binary tree formation /* 1 / 2 3 / 4 5 */ Node* root2 = newNode(1); root2->left = newNode(2); root2->right = newNode(3); root2->left->left = newNode(4); root2->left->right = newNode(5); cout << areMirrors(root1, root2); return 0; } |
JAVA
// Java implementation to check whether the two // binary trees are mirrors of each other or not import java.util.*; class GFG { // Structure of a node in binary tree static class Node { int data; Node left, right; }; // Function to create and return // a new node for a binary tree static Node newNode( int data) { Node temp = new Node(); temp.data = data; temp.left = temp.right = null ; return temp; } // Function to check whether the two binary trees // are mirrors of each other or not static String areMirrors(Node a, Node b) { // If both are null, then are mirror. if (a == null && b == null ) return "Yes" ; // If only one is null, then not // mirror. if (a == null || b == null ) return "No" ; Queue<Node> q = new LinkedList<Node>(); // Push root of both trees in queue. q.add(a); q.add(b); while (q.size() > 0 ) { // remove two elements of queue, to // get two nodes and check if they // are symmetric. a = q.peek(); q.remove(); b = q.peek(); q.remove(); // If data value of both nodes is // not same, then not mirror. if (a.data != b.data) return "No" ; // Push left child of first tree node // and right child of second tree node // into queue if both are not null. if (a.left != null && b.right != null ) { q.add(a.left); q.add(b.right); } // If any one of the nodes is null and // other is not null, then not mirror. else if (a.left != null || b.right != null ) return "No" ; // Push right child of first tree node // and left child of second tree node // into queue if both are not null. if (a.right != null && b.left != null ) { q.add(a.right); q.add(b.left); } //If any one of the nodes is null and // other is not null, then not mirror. else if (a.right != null || b.left != null ) return "No" ; } return "Yes" ; } // Driver Code public static void main(String args[]) { // 1st binary tree formation /* 1 / 3 2 / 5 4 */ Node root1 = newNode( 1 ); root1.left = newNode( 3 ); root1.right = newNode( 2 ); root1.right.left = newNode( 5 ); root1.right.right = newNode( 4 ); // 2nd binary tree formation /* 1 / 2 3 / 4 5 */ Node root2 = newNode( 1 ); root2.left = newNode( 2 ); root2.right = newNode( 3 ); root2.left.left = newNode( 4 ); root2.left.right = newNode( 5 ); System.out.print(areMirrors(root1, root2)); } } // This code is contributed by Arnab Kundu |
Python3
# Python3 implementation to check whether the two # binary trees are mirrors of each other or not # Structure of a node in binary tree class Node: def __init__( self , data): self .data = data self .left = None self .right = None # Function to check whether the two binary # trees are mirrors of each other or not def areMirrors(a, b): # If both are NULL, then are mirror. if a = = None and b = = None : return "Yes" # If only one is NULL, then not mirror. if a = = None or b = = None : return "No" q = [] # append root of both trees in queue. q.append(a) q.append(b) while len (q) > 0 : # Pop two elements of queue, # to get two nodes and check # if they are symmetric. a = q.pop( 0 ) b = q.pop( 0 ) # If data value of both nodes is # not same, then not mirror. if a.data ! = b.data: return "No" # append left child of first tree node # and right child of second tree node # into queue if both are not NULL. if a.left and b.right: q.append(a.left) q.append(b.right) # If any one of the nodes is NULL and # other is not NULL, then not mirror. elif a.left or b.right: return "No" # Append right child of first tree node # and left child of second tree node # into queue if both are not NULL. if a.right and b.left: q.append(a.right) q.append(b.left) # If any one of the nodes is NULL and # other is not NULL, then not mirror. elif a.right or b.left: return "No" return "Yes" # Driver Code if __name__ = = "__main__" : # 1st binary tree formation root1 = Node( 1 ) root1.left = Node( 3 ) root1.right = Node( 2 ) root1.right.left = Node( 5 ) root1.right.right = Node( 4 ) # 2nd binary tree formation root2 = Node( 1 ) root2.left = Node( 2 ) root2.right = Node( 3 ) root2.left.left = Node( 4 ) root2.left.right = Node( 5 ) print (areMirrors(root1, root2)) # This code is contributed by Rituraj Jain |
C#
// C# implementation to check whether the two // binary trees are mirrors of each other or not using System; using System.Collections.Generic; class GFG { // Structure of a node in binary tree public class Node { public int data; public Node left, right; }; // Function to create and return // a new node for a binary tree static Node newNode( int data) { Node temp = new Node(); temp.data = data; temp.left = temp.right = null ; return temp; } // Function to check whether the two binary trees // are mirrors of each other or not static String areMirrors(Node a, Node b) { // If both are null, then are mirror. if (a == null && b == null ) return "Yes" ; // If only one is null, then not // mirror. if (a == null || b == null ) return "No" ; Queue<Node> q = new Queue<Node>(); // Push root of both trees in queue. q.Enqueue(a); q.Enqueue(b); while (q.Count > 0) { // remove two elements of queue, to // get two nodes and check if they // are symmetric. a = q.Peek(); q.Dequeue(); b = q.Peek(); q.Dequeue(); // If data value of both nodes is // not same, then not mirror. if (a.data != b.data) return "No" ; // Push left child of first tree node // and right child of second tree node // into queue if both are not null. if (a.left != null && b.right != null ) { q.Enqueue(a.left); q.Enqueue(b.right); } // If any one of the nodes is null and // other is not null, then not mirror. else if (a.left != null || b.right != null ) return "No" ; // Push right child of first tree node // and left child of second tree node // into queue if both are not null. if (a.right != null && b.left != null ) { q.Enqueue(a.right); q.Enqueue(b.left); } //If any one of the nodes is null and // other is not null, then not mirror. else if (a.right != null || b.left != null ) return "No" ; } return "Yes" ; } // Driver Code public static void Main(String []args) { // 1st binary tree formation /* 1 / 3 2 / 5 4 */ Node root1 = newNode(1); root1.left = newNode(3); root1.right = newNode(2); root1.right.left = newNode(5); root1.right.right = newNode(4); // 2nd binary tree formation /* 1 / 2 3 / 4 5 */ Node root2 = newNode(1); root2.left = newNode(2); root2.right = newNode(3); root2.left.left = newNode(4); root2.left.right = newNode(5); Console.Write(areMirrors(root1, root2)); } } // This code is contributed by Princi Singh |
Javascript
<script> // JavaScript implementation to check whether the two // binary trees are mirrors of each other or not // Structure of a node in binary tree class Node { constructor() { this .data = 0; this .left = null ; this .right = null ; } }; // Function to create and return // a new node for a binary tree function newNode(data) { var temp = new Node(); temp.data = data; temp.left = temp.right = null ; return temp; } // Function to check whether the two binary trees // are mirrors of each other or not function areMirrors(a, b) { // If both are null, then are mirror. if (a == null && b == null ) return "Yes" ; // If only one is null, then not // mirror. if (a == null || b == null ) return "No" ; var q = []; // Push root of both trees in queue. q.push(a); q.push(b); while (q.length > 0) { // remove two elements of queue, to // get two nodes and check if they // are symmetric. a = q[0]; q.shift(); b = q[0]; q.shift(); // If data value of both nodes is // not same, then not mirror. if (a.data != b.data) return "No" ; // Push left child of first tree node // and right child of second tree node // into queue if both are not null. if (a.left != null && b.right != null ) { q.push(a.left); q.push(b.right); } // If any one of the nodes is null and // other is not null, then not mirror. else if (a.left != null || b.right != null ) return "No" ; // Push right child of first tree node // and left child of second tree node // into queue if both are not null. if (a.right != null && b.left != null ) { q.push(a.right); q.push(b.left); } //If any one of the nodes is null and // other is not null, then not mirror. else if (a.right != null || b.left != null ) return "No" ; } return "Yes" ; } // Driver Code // 1st binary tree formation /* 1 / 3 2 / 5 4 */ var root1 = newNode(1); root1.left = newNode(3); root1.right = newNode(2); root1.right.left = newNode(5); root1.right.right = newNode(4); // 2nd binary tree formation /* 1 / 2 3 / 4 5 */ var root2 = newNode(1); root2.left = newNode(2); root2.right = newNode(3); root2.left.left = newNode(4); root2.left.right = newNode(5); document.write(areMirrors(root1, root2)); </script> |
输出：
Yes
时间复杂性： O（N） 辅助空间： O（N）
