给定一棵二叉树，任务是在一棵二叉树中找到两个键之间的距离，而不给出父指针。两个节点之间的距离是从一个节点到达另一个节点所需穿过的最小边数。 这个问题已经在本书中讨论过了 以前的职位 但它使用 三次穿越 在二叉树中，一个用于查找两个节点（让A和B）的最低共同祖先（LCA），然后两次遍历用于查找LCA和A之间的距离，LCA和B具有O（n）时间复杂度。在本文中，将讨论一种需要 O（对数（n）） 是时候找到两个节点的LCA了。
null

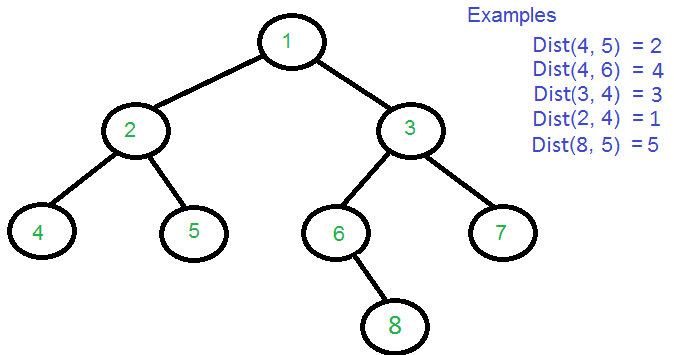

![图片[1]-查找二叉树两个节点之间距离的查询–O（logn）方法-yiteyi-C++库](https://www.yiteyi.com/wp-content/uploads/geeks/geeks_dist.png)
两个节点之间的距离可以通过最低共同祖先来获得。下面是公式。
Dist(n1, n2) = Dist(root, n1) + Dist(root, n2) - 2*Dist(root, lca) 'n1' and 'n2' are the two given keys'root' is root of given Binary Tree.'lca' is lowest common ancestor of n1 and n2Dist(n1, n2) is the distance between n1 and n2.
上述公式也可以写成：
Dist(n1, n2) = Level[n1] + Level[n2] - 2*Level[lca]
这个问题可以分为：
- 查找每个节点的级别
- 寻找二叉树的欧拉之旅
- 构建生命周期评价的分段树，
这些步骤解释如下：
- 通过应用查找每个节点的级别 水平顺序遍历 .
- 通过存储二叉树中两个节点的LCA，求出O（logn）中两个节点的LCA 二叉树的欧拉之旅 在数组中，通过每个节点的级别和Euler tour计算另外两个数组。 这些步骤如下所示： （一） 首先，找到二叉树的欧拉之旅。
![图片[2]-查找二叉树两个节点之间距离的查询–O（logn）方法-yiteyi-C++库](https://media.geeksforgeeks.org/wp-content/uploads/BT1.png)
二叉树的Euler巡回示例
- （二） 然后，将Euler数组中每个节点的级别存储在不同的数组中。
![图片[3]-查找二叉树两个节点之间距离的查询–O（logn）方法-yiteyi-C++库](https://media.geeksforgeeks.org/wp-content/uploads/BT2.png)

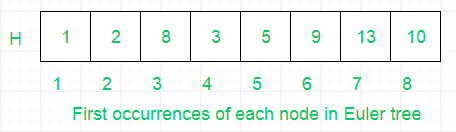

- （三） 然后，在Euler数组中存储二叉树所有节点的首次出现。H存储来自Euler数组的节点索引，这样可以通过进一步优化查询时间来最小化查找最小值的查询范围，并减少它们之间的差异。
![图片[4]-查找二叉树两个节点之间距离的查询–O（logn）方法-yiteyi-C++库](https://www.yiteyi.com/wp-content/uploads/geeks/geeks_BT3-1.png)
- 然后 在L数组上建立段树 从H数组中取低值和高值，这将给出两个节点（A和B）的首次出现。然后 我们查询段树以找到最小值 在范围内说X( H[A]到H[B] ).那么 我们使用X值的索引作为Euler数组的索引来获得 生命周期评价 ，即欧拉[指数（X）]。 设A=8，B=5。 （一） H[8]=1和H[5]=2 （二） 在段树上查询时，我们得到L数组中的最小值在1和2之间，X=0，索引=7 （三） 然后，LCA=Euler[7]，即LCA=1。
- 最后，我们应用上面讨论的距离公式来计算两个节点之间的距离。
C++
// C++ program to find distance between // two nodes for multiple queries #include <bits/stdc++.h> #define MAX 100001 using namespace std; /* A tree node structure */ struct Node { int data; struct Node* left; struct Node* right; }; /* Utility function to create a new Binary Tree node */ struct Node* newNode( int data) { struct Node* temp = new struct Node; temp->data = data; temp->left = temp->right = NULL; return temp; } // Array to store level of each node int level[MAX]; // Utility Function to store level of all nodes void FindLevels( struct Node* root) { if (!root) return ; // queue to hold tree node with level queue<pair< struct Node*, int > > q; // let root node be at level 0 q.push({ root, 0 }); pair< struct Node*, int > p; // Do level Order Traversal of tree while (!q.empty()) { p = q.front(); q.pop(); // Node p.first is on level p.second level[p.first->data] = p.second; // If left child exits, put it in queue // with current_level +1 if (p.first->left) q.push({ p.first->left, p.second + 1 }); // If right child exists, put it in queue // with current_level +1 if (p.first->right) q.push({ p.first->right, p.second + 1 }); } } // Stores Euler Tour int Euler[MAX]; // index in Euler array int idx = 0; // Find Euler Tour void eulerTree( struct Node* root) { // store current node's data Euler[++idx] = root->data; // If left node exists if (root->left) { // traverse left subtree eulerTree(root->left); // store parent node's data Euler[++idx] = root->data; } // If right node exists if (root->right) { // traverse right subtree eulerTree(root->right); // store parent node's data Euler[++idx] = root->data; } } // checks for visited nodes int vis[MAX]; // Stores level of Euler Tour int L[MAX]; // Stores indices of first occurrence // of nodes in Euler tour int H[MAX]; // Preprocessing Euler Tour for finding LCA void preprocessEuler( int size) { for ( int i = 1; i <= size; i++) { L[i] = level[Euler[i]]; // If node is not visited before if (vis[Euler[i]] == 0) { // Add to first occurrence H[Euler[i]] = i; // Mark it visited vis[Euler[i]] = 1; } } } // Stores values and positions pair< int , int > seg[4 * MAX]; // Utility function to find minimum of // pair type values pair< int , int > min(pair< int , int > a, pair< int , int > b) { if (a.first <= b.first) return a; else return b; } // Utility function to build segment tree pair< int , int > buildSegTree( int low, int high, int pos) { if (low == high) { seg[pos].first = L[low]; seg[pos].second = low; return seg[pos]; } int mid = low + (high - low) / 2; buildSegTree(low, mid, 2 * pos); buildSegTree(mid + 1, high, 2 * pos + 1); seg[pos] = min(seg[2 * pos], seg[2 * pos + 1]); } // Utility function to find LCA pair< int , int > LCA( int qlow, int qhigh, int low, int high, int pos) { if (qlow <= low && qhigh >= high) return seg[pos]; if (qlow > high || qhigh < low) return { INT_MAX, 0 }; int mid = low + (high - low) / 2; return min(LCA(qlow, qhigh, low, mid, 2 * pos), LCA(qlow, qhigh, mid + 1, high, 2 * pos + 1)); } // Function to return distance between // two nodes n1 and n2 int findDistance( int n1, int n2, int size) { // Maintain original Values int prevn1 = n1, prevn2 = n2; // Get First Occurrence of n1 n1 = H[n1]; // Get First Occurrence of n2 n2 = H[n2]; // Swap if low > high if (n2 < n1) swap(n1, n2); // Get position of minimum value int lca = LCA(n1, n2, 1, size, 1).second; // Extract value out of Euler tour lca = Euler[lca]; // return calculated distance return level[prevn1] + level[prevn2] - 2 * level[lca]; } void preProcessing(Node* root, int N) { // Build Tree eulerTree(root); // Store Levels FindLevels(root); // Find L and H array preprocessEuler(2 * N - 1); // Build segment Tree buildSegTree(1, 2 * N - 1, 1); } /* Driver function to test above functions */ int main() { int N = 8; // Number of nodes /* Constructing tree given in the above figure */ Node* root = newNode(1); root->left = newNode(2); root->right = newNode(3); root->left->left = newNode(4); root->left->right = newNode(5); root->right->left = newNode(6); root->right->right = newNode(7); root->right->left->right = newNode(8); // Function to do all preprocessing preProcessing(root, N); cout << "Dist(4, 5) = " << findDistance(4, 5, 2 * N - 1) << "" ; cout << "Dist(4, 6) = " << findDistance(4, 6, 2 * N - 1) << "" ; cout << "Dist(3, 4) = " << findDistance(3, 4, 2 * N - 1) << "" ; cout << "Dist(2, 4) = " << findDistance(2, 4, 2 * N - 1) << "" ; cout << "Dist(8, 5) = " << findDistance(8, 5, 2 * N - 1) << "" ; return 0; } |
JAVA
// Java program to find distance between // two nodes for multiple queries import java.io.*; import java.util.*; class GFG { static int MAX = 100001 ; /* A tree node structure */ static class Node { int data; Node left, right; Node( int data) { this .data = data; this .left = this .right = null ; } } static class Pair<T, V> { T first; V second; Pair() { } Pair(T first, V second) { this .first = first; this .second = second; } } // Array to store level of each node static int [] level = new int [MAX]; // Utility Function to store level of all nodes static void findLevels(Node root) { if (root == null ) return ; // queue to hold tree node with level Queue<Pair<Node, Integer>> q = new LinkedList<>(); // let root node be at level 0 q.add( new Pair<Node, Integer>(root, 0 )); Pair<Node, Integer> p = new Pair<Node, Integer>(); // Do level Order Traversal of tree while (!q.isEmpty()) { p = q.poll(); // Node p.first is on level p.second level[p.first.data] = p.second; // If left child exits, put it in queue // with current_level +1 if (p.first.left != null ) q.add( new Pair<Node, Integer>(p.first.left, p.second + 1 )); // If right child exists, put it in queue // with current_level +1 if (p.first.right != null ) q.add( new Pair<Node, Integer>(p.first.right, p.second + 1 )); } } // Stores Euler Tour static int [] Euler = new int [MAX]; // index in Euler array static int idx = 0 ; // Find Euler Tour static void eulerTree(Node root) { // store current node's data Euler[++idx] = root.data; // If left node exists if (root.left != null ) { // traverse left subtree eulerTree(root.left); // store parent node's data Euler[++idx] = root.data; } // If right node exists if (root.right != null ) { // traverse right subtree eulerTree(root.right); // store parent node's data Euler[++idx] = root.data; } } // checks for visited nodes static int [] vis = new int [MAX]; // Stores level of Euler Tour static int [] L = new int [MAX]; // Stores indices of first occurrence // of nodes in Euler tour static int [] H = new int [MAX]; // Preprocessing Euler Tour for finding LCA static void preprocessEuler( int size) { for ( int i = 1 ; i <= size; i++) { L[i] = level[Euler[i]]; // If node is not visited before if (vis[Euler[i]] == 0 ) { // Add to first occurrence H[Euler[i]] = i; // Mark it visited vis[Euler[i]] = 1 ; } } } // Stores values and positions @SuppressWarnings ( "unchecked" ) static Pair<Integer, Integer>[] seg = (Pair<Integer, Integer>[]) new Pair[ 4 * MAX]; // Utility function to find minimum of // pair type values static Pair<Integer, Integer> min(Pair<Integer, Integer> a, Pair<Integer, Integer> b) { if (a.first <= b.first) return a; return b; } // Utility function to build segment tree static Pair<Integer, Integer> buildSegTree( int low, int high, int pos) { if (low == high) { seg[pos].first = L[low]; seg[pos].second = low; return seg[pos]; } int mid = low + (high - low) / 2 ; buildSegTree(low, mid, 2 * pos); buildSegTree(mid + 1 , high, 2 * pos + 1 ); seg[pos] = min(seg[ 2 * pos], seg[ 2 * pos + 1 ]); return seg[pos]; } // Utility function to find LCA static Pair<Integer, Integer> LCA( int qlow, int qhigh, int low, int high, int pos) { if (qlow <= low && qhigh >= high) return seg[pos]; if (qlow > high || qhigh < low) return new Pair<Integer, Integer> (Integer.MAX_VALUE, 0 ); int mid = low + (high - low) / 2 ; return min(LCA(qlow, qhigh, low, mid, 2 * pos), LCA(qlow, qhigh, mid + 1 , high, 2 * pos + 1 )); } // Function to return distance between // two nodes n1 and n2 static int findDistance( int n1, int n2, int size) { // Maintain original Values int prevn1 = n1, prevn2 = n2; // Get First Occurrence of n1 n1 = H[n1]; // Get First Occurrence of n2 n2 = H[n2]; // Swap if low > high if (n2 < n1) { int temp = n1; n1 = n2; n2 = temp; } // Get position of minimum value int lca = LCA(n1, n2, 1 , size, 1 ).second; // Extract value out of Euler tour lca = Euler[lca]; // return calculated distance return level[prevn1] + level[prevn2] - 2 * level[lca]; } static void preProcessing(Node root, int N) { for ( int i = 0 ; i < 4 * MAX; i++) { seg[i] = new Pair<>(); } // Build Tree eulerTree(root); // Store Levels findLevels(root); // Find L and H array preprocessEuler( 2 * N - 1 ); // Build segment Tree buildSegTree( 1 , 2 * N - 1 , 1 ); } // Driver Code public static void main(String[] args) { // Number of nodes int N = 8 ; /* Constructing tree given in the above figure */ Node root = new Node( 1 ); root.left = new Node( 2 ); root.right = new Node( 3 ); root.left.left = new Node( 4 ); root.left.right = new Node( 5 ); root.right.left = new Node( 6 ); root.right.right = new Node( 7 ); root.right.left.right = new Node( 8 ); // Function to do all preprocessing preProcessing(root, N); System.out.println( "Dist(4, 5) = " + findDistance( 4 , 5 , 2 * N - 1 )); System.out.println( "Dist(4, 6) = " + findDistance( 4 , 6 , 2 * N - 1 )); System.out.println( "Dist(3, 4) = " + findDistance( 3 , 4 , 2 * N - 1 )); System.out.println( "Dist(2, 4) = " + findDistance( 2 , 4 , 2 * N - 1 )); System.out.println( "Dist(8, 5) = " + findDistance( 8 , 5 , 2 * N - 1 )); } } // This code is contributed by // sanjeev2552 |
Python3
# Python3 program to find distance between # two nodes for multiple queries from collections import deque from sys import maxsize as INT_MAX MAX = 100001 # A tree node structure class Node: def __init__( self , data): self .data = data self .left = None self .right = None # Array to store level of each node level = [ 0 ] * MAX # Utility Function to store level of all nodes def findLevels(root: Node): global level if root is None : return # queue to hold tree node with level q = deque() # let root node be at level 0 q.append((root, 0 )) # Do level Order Traversal of tree while q: p = q[ 0 ] q.popleft() # Node p.first is on level p.second level[p[ 0 ].data] = p[ 1 ] # If left child exits, put it in queue # with current_level +1 if p[ 0 ].left: q.append((p[ 0 ].left, p[ 1 ] + 1 )) # If right child exists, put it in queue # with current_level +1 if p[ 0 ].right: q.append((p[ 0 ].right, p[ 1 ] + 1 )) # Stores Euler Tour Euler = [ 0 ] * MAX # index in Euler array idx = 0 # Find Euler Tour def eulerTree(root: Node): global Euler, idx idx + = 1 # store current node's data Euler[idx] = root.data # If left node exists if root.left: # traverse left subtree eulerTree(root.left) idx + = 1 # store parent node's data Euler[idx] = root.data # If right node exists if root.right: # traverse right subtree eulerTree(root.right) idx + = 1 # store parent node's data Euler[idx] = root.data # checks for visited nodes vis = [ 0 ] * MAX # Stores level of Euler Tour L = [ 0 ] * MAX # Stores indices of the first occurrence # of nodes in Euler tour H = [ 0 ] * MAX # Preprocessing Euler Tour for finding LCA def preprocessEuler(size: int ): global L, H, vis for i in range ( 1 , size + 1 ): L[i] = level[Euler[i]] # If node is not visited before if vis[Euler[i]] = = 0 : # Add to first occurrence H[Euler[i]] = i # Mark it visited vis[Euler[i]] = 1 # Stores values and positions seg = [ 0 ] * ( 4 * MAX ) for i in range ( 4 * MAX ): seg[i] = [ 0 , 0 ] # Utility function to find minimum of # pair type values def minPair(a: list , b: list ) - > list : if a[ 0 ] < = b[ 0 ]: return a else : return b # Utility function to build segment tree def buildSegTree(low: int , high: int , pos: int ) - > list : if low = = high: seg[pos][ 0 ] = L[low] seg[pos][ 1 ] = low return seg[pos] mid = low + (high - low) / / 2 buildSegTree(low, mid, 2 * pos) buildSegTree(mid + 1 , high, 2 * pos + 1 ) seg[pos] = min (seg[ 2 * pos], seg[ 2 * pos + 1 ]) # Utility function to find LCA def LCA(qlow: int , qhigh: int , low: int , high: int , pos: int ) - > list : if qlow < = low and qhigh > = high: return seg[pos] if qlow > high or qhigh < low: return [INT_MAX, 0 ] mid = low + (high - low) / / 2 return minPair(LCA(qlow, qhigh, low, mid, 2 * pos), LCA(qlow, qhigh, mid + 1 , high, 2 * pos + 1 )) # Function to return distance between # two nodes n1 and n2 def findDistance(n1: int , n2: int , size: int ) - > int : # Maintain original Values prevn1 = n1 prevn2 = n2 # Get First Occurrence of n1 n1 = H[n1] # Get First Occurrence of n2 n2 = H[n2] # Swap if low>high if n2 < n1: n1, n2 = n2, n1 # Get position of minimum value lca = LCA(n1, n2, 1 , size, 1 )[ 1 ] # Extract value out of Euler tour lca = Euler[lca] # return calculated distance return level[prevn1] + level[prevn2] - 2 * level[lca] def preProcessing(root: Node, N: int ): # Build Tree eulerTree(root) # Store Levels findLevels(root) # Find L and H array preprocessEuler( 2 * N - 1 ) # Build sparse table buildSegTree( 1 , 2 * N - 1 , 1 ) # Driver Code if __name__ = = "__main__" : # Number of nodes N = 8 # Constructing tree given in the above figure root = Node( 1 ) root.left = Node( 2 ) root.right = Node( 3 ) root.left.left = Node( 4 ) root.left.right = Node( 5 ) root.right.left = Node( 6 ) root.right.right = Node( 7 ) root.right.left.right = Node( 8 ) # Function to do all preprocessing preProcessing(root, N) print ( "Dist(4, 5) =" , findDistance( 4 , 5 , 2 * N - 1 )) print ( "Dist(4, 6) =" , findDistance( 4 , 6 , 2 * N - 1 )) print ( "Dist(3, 4) =" , findDistance( 3 , 4 , 2 * N - 1 )) print ( "Dist(2, 4) =" , findDistance( 2 , 4 , 2 * N - 1 )) print ( "Dist(8, 5) =" , findDistance( 8 , 5 , 2 * N - 1 )) # This code is contributed by # sanjeev2552 |
C#
// C# program to find distance between // two nodes for multiple queries using System; using System.Collections.Generic; class GFG { static int MAX = 100001; /* A tree node structure */ public class Node { public int data; public Node left, right; public Node( int data) { this .data = data; this .left = this .right = null ; } } class Pair<T, V> { public T first; public V second; public Pair() { } public Pair(T first, V second) { this .first = first; this .second = second; } } // Array to store level of each node static int [] level = new int [MAX]; // Utility Function to store level of all nodes static void findLevels(Node root) { if (root == null ) return ; // queue to hold tree node with level List<Pair<Node, int >> q = new List<Pair<Node, int >>(); // let root node be at level 0 q.Add( new Pair<Node, int >(root, 0)); Pair<Node, int > p = new Pair<Node, int >(); // Do level Order Traversal of tree while (q.Count != 0) { p = q[0]; q.RemoveAt(0); // Node p.first is on level p.second level[p.first.data] = p.second; // If left child exits, put it in queue // with current_level +1 if (p.first.left != null ) q.Add( new Pair<Node, int > (p.first.left, p.second + 1)); // If right child exists, put it in queue // with current_level +1 if (p.first.right != null ) q.Add( new Pair<Node, int > (p.first.right, p.second + 1)); } } // Stores Euler Tour static int [] Euler = new int [MAX]; // index in Euler array static int idx = 0; // Find Euler Tour static void eulerTree(Node root) { // store current node's data Euler[++idx] = root.data; // If left node exists if (root.left != null ) { // traverse left subtree eulerTree(root.left); // store parent node's data Euler[++idx] = root.data; } // If right node exists if (root.right != null ) { // traverse right subtree eulerTree(root.right); // store parent node's data Euler[++idx] = root.data; } } // checks for visited nodes static int [] vis = new int [MAX]; // Stores level of Euler Tour static int [] L = new int [MAX]; // Stores indices of first occurrence // of nodes in Euler tour static int [] H = new int [MAX]; // Preprocessing Euler Tour for finding LCA static void preprocessEuler( int size) { for ( int i = 1; i <= size; i++) { L[i] = level[Euler[i]]; // If node is not visited before if (vis[Euler[i]] == 0) { // Add to first occurrence H[Euler[i]] = i; // Mark it visited vis[Euler[i]] = 1; } } } // Stores values and positions static Pair< int , int >[] seg = new Pair< int , int >[4 * MAX]; // Utility function to find minimum of // pair type values static Pair< int , int > min(Pair< int , int > a, Pair< int , int > b) { if (a.first <= b.first) return a; return b; } // Utility function to build segment tree static Pair< int , int > buildSegTree( int low, int high, int pos) { if (low == high) { seg[pos].first = L[low]; seg[pos].second = low; return seg[pos]; } int mid = low + (high - low) / 2; buildSegTree(low, mid, 2 * pos); buildSegTree(mid + 1, high, 2 * pos + 1); seg[pos] = min(seg[2 * pos], seg[2 * pos + 1]); return seg[pos]; } // Utility function to find LCA static Pair< int , int > LCA( int qlow, int qhigh, int low, int high, int pos) { if (qlow <= low && qhigh >= high) return seg[pos]; if (qlow > high || qhigh < low) return new Pair< int , int >( int .MaxValue, 0); int mid = low + (high - low) / 2; return min(LCA(qlow, qhigh, low, mid, 2 * pos), LCA(qlow, qhigh, mid + 1, high, 2 * pos + 1)); } // Function to return distance between // two nodes n1 and n2 static int findDistance( int n1, int n2, int size) { // Maintain original Values int prevn1 = n1, prevn2 = n2; // Get First Occurrence of n1 n1 = H[n1]; // Get First Occurrence of n2 n2 = H[n2]; // Swap if low > high if (n2 < n1) { int temp = n1; n1 = n2; n2 = temp; } // Get position of minimum value int lca = LCA(n1, n2, 1, size, 1).second; // Extract value out of Euler tour lca = Euler[lca]; // return calculated distance return level[prevn1] + level[prevn2] - 2 * level[lca]; } static void preProcessing(Node root, int N) { for ( int i = 0; i < 4 * MAX; i++) { seg[i] = new Pair< int , int >(); } // Build Tree eulerTree(root); // Store Levels findLevels(root); // Find L and H array preprocessEuler(2 * N - 1); // Build segment Tree buildSegTree(1, 2 * N - 1, 1); } // Driver Code public static void Main(String[] args) { // Number of nodes int N = 8; /* Constructing tree given in the above figure */ Node root = new Node(1); root.left = new Node(2); root.right = new Node(3); root.left.left = new Node(4); root.left.right = new Node(5); root.right.left = new Node(6); root.right.right = new Node(7); root.right.left.right = new Node(8); // Function to do all preprocessing preProcessing(root, N); Console.WriteLine( "Dist(4, 5) = " + findDistance(4, 5, 2 * N - 1)); Console.WriteLine( "Dist(4, 6) = " + findDistance(4, 6, 2 * N - 1)); Console.WriteLine( "Dist(3, 4) = " + findDistance(3, 4, 2 * N - 1)); Console.WriteLine( "Dist(2, 4) = " + findDistance(2, 4, 2 * N - 1)); Console.WriteLine( "Dist(8, 5) = " + findDistance(8, 5, 2 * N - 1)); } } // This code is contributed by Rajput-Ji |
输出 :
Dist(4, 5) = 2Dist(4, 6) = 4Dist(3, 4) = 3Dist(2, 4) = 1Dist(8, 5) = 5
时间复杂性： O（对数N） 空间复杂性： O（N） 查找二叉树两个节点之间距离的查询–O（1）方法
