在Euler巡更树中遍历的节点总数

309

树之旅 已经讨论了将树的层次结构展平为数组的方法，该数组包含 2*N-1 价值观在本文中，我们的任务是证明欧拉游程树的阶数是节点数减1的2倍。这里的度数是指在Euler Tour中遍历的节点总数。 例如：

null

输入：

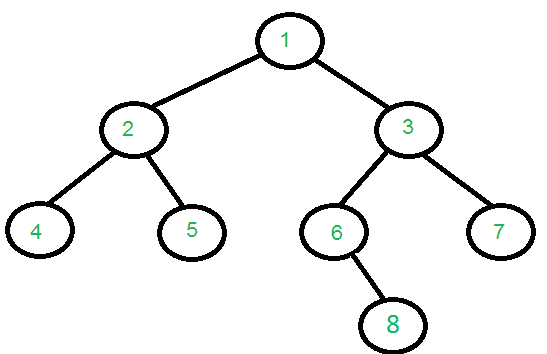

图片[1]-在Euler巡更树中遍历的节点总数-yiteyi-C++库

产出：15 输入：

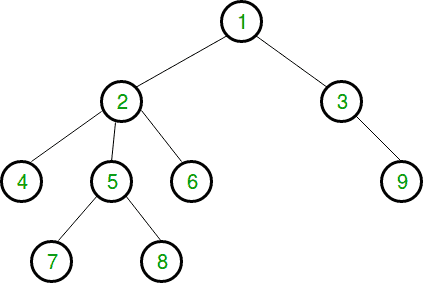

图片[2]-在Euler巡更树中遍历的节点总数-yiteyi-C++库

产出：17

说明： 使用 例1 :

图片[3]-在Euler巡更树中遍历的节点总数-yiteyi-C++库

哪里

图片[4]-在Euler巡更树中遍历的节点总数-yiteyi-C++库

可以看出，Euler Tour中每个节点的计数正好等于节点的出度加1。 从数学上讲，它可以表示为： $displaystyle Total=sum_{node_i=1}^{N} Out_D_e_g[node_i]+1$ $displaystyle Total= N + sum_{node_i=1}^{N} Out_D_e_g[node_i]$ 哪里 全部的 表示Euler巡更树中的节点总数 node_i 表示给定树中的第i个节点 N表示给定树中的节点总数 Out_D_e_g[node_i] 表示的子对象数 node_i

C++

// C++ program to check the number of nodes
// in Euler Tour tree.
#include <bits/stdc++.h>
using namespace std;
#define MAX 1001
// Adjacency list representation of tree
vector< int > adj[MAX];
// Function to add edges to tree
void add_edge( int u, int v)
{
adj[u].push_back(v);
}
// Program to check if calculated Value is
// equal to 2*size-1
void checkTotalNumberofNodes( int actualAnswer,
int size)
{
int calculatedAnswer = size;
// Add out-degree of each node
for ( int i = 1; i <= size; i++)
calculatedAnswer += adj[i].size();
if (actualAnswer == calculatedAnswer)
cout << "Calculated Answer is " << calculatedAnswer
<< " and is Equal to Actual Answer" ;
else
cout << "Calculated Answer is Incorrect" ;
}
int main()
{ // Constructing 1st tree from example
int N = 8;
add_edge(1, 2);
add_edge(1, 3);
add_edge(2, 4);
add_edge(2, 5);
add_edge(3, 6);
add_edge(3, 7);
add_edge(6, 8);
// Out_deg[node[i]] is equal to adj[i].size()
checkTotalNumberofNodes(2 * N - 1, N);
// clear previous stored tree
for ( int i = 1; i <= N; i++)
adj[i].clear();
// Constructing 2nd tree from example
N = 9;
add_edge(1, 2);
add_edge(1, 3);
add_edge(2, 4);
add_edge(2, 5);
add_edge(2, 6);
add_edge(3, 9);
add_edge(5, 7);
add_edge(5, 8);
// Out_deg[node[i]] is equal to adj[i].size()
checkTotalNumberofNodes(2 * N - 1, N);
return 0;
}
















   JAVA





















































                         // Java program to check the number of nodes


                         // in Euler Tour tree.


                         import                                     java.util.*;





                         class                                     GFG


                         {


                                                 static                                     final                                     int                                     MAX =                                     1001                                     ;





                                                 // Adjacency list representation of tree


                                                 static                                     Vector<Integer>[] adj =                                     new                                     Vector[MAX];





                                                 // Function to add edges to tree


                                                 static                                     void                                     add_edge(                                     int                                     u,                                     int                                     v)


                                                 {


                                                 adj[u].add(v);


                                                 }





                                                 // Program to check if calculated Value is


                                                 // equal to 2*size-1


                                                 static                                     void                                     checkTotalNumberofNodes(                                     int                                     actualAnswer,


                                                 int                                     size)


                                                 {


                                                 int                                     calculatedAnswer = size;





                                                 // Add out-degree of each node


                                                 for                                     (                                     int                                     i =                                     1                                     ; i <= size; i++)


                                                 calculatedAnswer += adj[i].size();





                                                 if                                     (actualAnswer == calculatedAnswer)


                                                 System.out.print(                                     "Calculated Answer is "                                     +


                                                 calculatedAnswer +


                                                 " and is Equal to Actual Answer"                                     );


                                                 else


                                                 System.out.print(                                     "Calculated Answer is Incorrect"                                     );


                                                 }





                                                 // Driver Code


                                                 public                                     static                                     void                                     main(String[] args)


                                                 {


                                                 for                                     (                                     int                                     i =                                     0                                     ; i < MAX; i++)


                                                 adj[i] =                                     new                                     Vector<Integer>();





                                                 // Constructing 1st tree from example


                                                 int                                     N =                                     8                                     ;


                                                 add_edge(                                     1                                     ,                                     2                                     );


                                                 add_edge(                                     1                                     ,                                     3                                     );


                                                 add_edge(                                     2                                     ,                                     4                                     );


                                                 add_edge(                                     2                                     ,                                     5                                     );


                                                 add_edge(                                     3                                     ,                                     6                                     );


                                                 add_edge(                                     3                                     ,                                     7                                     );


                                                 add_edge(                                     6                                     ,                                     8                                     );





                                                 // Out_deg[node[i]] is equal to adj[i].size()


                                                 checkTotalNumberofNodes(                                     2                                     * N -                                     1                                     , N);





                                                 // clear previous stored tree


                                                 for                                     (                                     int                                     i =                                     1                                     ; i <= N; i++)


                                                 adj[i].clear();





                                                 // Constructing 2nd tree from example


                                                 N =                                     9                                     ;


                                                 add_edge(                                     1                                     ,                                     2                                     );


                                                 add_edge(                                     1                                     ,                                     3                                     );


                                                 add_edge(                                     2                                     ,                                     4                                     );


                                                 add_edge(                                     2                                     ,                                     5                                     );


                                                 add_edge(                                     2                                     ,                                     6                                     );


                                                 add_edge(                                     3                                     ,                                     9                                     );


                                                 add_edge(                                     5                                     ,                                     7                                     );


                                                 add_edge(                                     5                                     ,                                     8                                     );





                                                 // Out_deg[node[i]] is equal to adj[i].size()


                                                 checkTotalNumberofNodes(                                     2                                     * N -                                     1                                     , N);


                                                 }


                         }





                         // This code is contributed by Rajput-Ji





































   C#





















































                         // C# program to check the number


                         // of nodes in Euler Tour tree.


                         using                                     System;


                         using                                     System.Collections.Generic;





                         class                                     GFG


                         {


                                                 static                                     readonly                                     int                                     MAX = 1001;





                                                 // Adjacency list representation of tree


                                                 static                                     List<                                     int                                     >[] adj =                                     new                                     List<                                     int                                     >[MAX];





                                                 // Function to add edges to tree


                                                 static                                     void                                     add_edge(                                     int                                     u,                                     int                                     v)


                                                 {


                                                 adj[u].Add(v);


                                                 }





                                                 // Program to check if calculated Value is


                                                 // equal to 2*size-1


                                                 static                                     void                                     checkTotalNumberofNodes(                                     int                                     actualAnswer,


                                                 int                                     size)


                                                 {


                                                 int                                     calculatedAnswer = size;





                                                 // Add out-degree of each node


                                                 for                                     (                                     int                                     i = 1; i <= size; i++)


                                                 calculatedAnswer += adj[i].Count;





                                                 if                                     (actualAnswer == calculatedAnswer)


                                                 Console.Write(                                     "Calculated Answer is "                                     +


                                                 calculatedAnswer +


                                                 " and is Equal to Actual Answer"                                     );


                                                 else


                                                 Console.Write(                                     "Calculated Answer "                                     +


                                                 "is Incorrect"                                     );


                                                 }





                                                 // Driver Code


                                                 public                                     static                                     void                                     Main(String[] args)


                                                 {


                                                 for                                     (                                     int                                     i = 0; i < MAX; i++)


                                                 adj[i] =                                     new                                     List<                                     int                                     >();





                                                 // Constructing 1st tree from example


                                                 int                                     N = 8;


                                                 add_edge(1, 2);


                                                 add_edge(1, 3);


                                                 add_edge(2, 4);


                                                 add_edge(2, 5);


                                                 add_edge(3, 6);


                                                 add_edge(3, 7);


                                                 add_edge(6, 8);





                                                 // Out_deg[node[i]] is equal to adj[i].Count


                                                 checkTotalNumberofNodes(2 * N - 1, N);





                                                 // clear previous stored tree


                                                 for                                     (                                     int                                     i = 1; i <= N; i++)


                                                 adj[i].Clear();





                                                 // Constructing 2nd tree from example


                                                 N = 9;


                                                 add_edge(1, 2);


                                                 add_edge(1, 3);


                                                 add_edge(2, 4);


                                                 add_edge(2, 5);


                                                 add_edge(2, 6);


                                                 add_edge(3, 9);


                                                 add_edge(5, 7);


                                                 add_edge(5, 8);





                                                 // Out_deg[node[i]] is equal to adj[i].Count


                                                 checkTotalNumberofNodes(2 * N - 1, N);


                                                 }


                         }





                         // This code is contributed by PrinciRaj1992





































   Javascript





















































                         <script>





                         // Javascript program to check the number


                         // of nodes in Euler Tour tree.


                         var                                     MAX = 1001;





                         // Adjacency list representation of tree


                         var                                     adj = Array.from(Array(MAX), ()=>Array());





                         // Function to add edges to tree


                         function                                     add_edge(u, v)


                         {


                                                 adj[u].push(v);


                         }





                         // Program to check if calculated Value is


                         // equal to 2*size-1


                         function                                     checkTotalNumberofNodes(actualAnswer, size)


                         {


                                                 var                                     calculatedAnswer = size;





                                                 // push out-degree of each node


                                                 for                                     (                                     var                                     i = 1; i <= size; i++)


                                                 calculatedAnswer += adj[i].length;


                                                 if                                     (actualAnswer == calculatedAnswer)


                                                 document.write(                                     "Calculated Answer is "                                     +


                                                 calculatedAnswer +


                                                 " and is Equal to Actual Answer<br>"                                     );


                                                 else


                                                 document.write(                                     "Calculated Answer "                                     +


                                                 "is Incorrect<br>"                                     );


                         }





                         // Driver Code


                         for                                     (                                     var                                     i = 0; i < MAX; i++)


                                                 adj[i] = [];





                         // Constructing 1st tree from example


                         var                                     N = 8;


                         add_edge(1, 2);


                         add_edge(1, 3);


                         add_edge(2, 4);


                         add_edge(2, 5);


                         add_edge(3, 6);


                         add_edge(3, 7);


                         add_edge(6, 8);





                         // Out_deg[node[i]] is equal to adj[i].Count


                         checkTotalNumberofNodes(2 * N - 1, N);





                         // clear previous stored tree


                         for                                     (                                     var                                     i = 1; i <= N; i++)


                                                 adj[i] = []





                         // Constructing 2nd tree from example


                         N = 9;


                         add_edge(1, 2);


                         add_edge(1, 3);


                         add_edge(2, 4);


                         add_edge(2, 5);


                         add_edge(2, 6);


                         add_edge(3, 9);


                         add_edge(5, 7);


                         add_edge(5, 8);





                         // Out_deg[node[i]] is equal to adj[i].Count


                         checkTotalNumberofNodes(2 * N - 1, N);





                         // This code is contributed by itsok.


                         </script>







































     输出：


Calculated Answer is 15 and is Equal to Actual AnswerCalculated Answer is 17 and is Equal to Actual Answer
