基于C图形的洪水填充算法-yiteyi-C++库

给定一个矩形，您的任务是使用整体填充算法填充该矩形。例如：

null

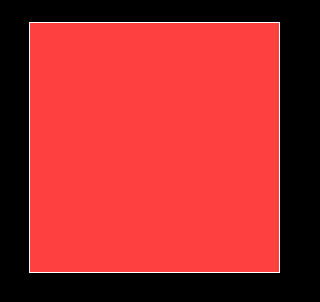

Input : rectangle(left = 50, top = 50, right= 100, bottom = 100)        flood( x = 55, y = 55, new_color = 12, old_color = 0)Output :

图片[1]-基于C图形的洪水填充算法-yiteyi-C++库

Input : rectangle(left = 50, top = 50, right= 200, bottom = 400)        flood( x = 51, y = 51, new_color = 6, old_color = 0)Output :

图片[2]-基于C图形的洪水填充算法-yiteyi-C++库

整体填充算法填充新颜色，直到旧的颜色搭配。洪水填充算法：-

// A recursive function to replace previous// color 'oldcolor' at  '(x, y)' and all // surrounding pixels of (x, y) with new // color 'newcolor' andfloodfill(x, y, newcolor, oldcolor)1) If x or y is outside the screen, then   return.2) If color of getpixel(x, y) is same as   oldcolor, then 3) Recur for top, bottom, right and left.    floodFill(x+1, y, newcolor, oldcolor);    floodFill(x-1, y, newcolor, oldcolor);    floodFill(x, y+1, newcolor, oldcolor);    floodFill(x, y-1, newcolor, oldcolor);

CPP

                         // program to fill polygon using floodfill
                         // algorithm
                         #include <graphics.h>
                         #include <stdio.h>

                         // flood fill algorithm
                         void                                     flood(                                     int                                     x,                                     int                                     y,                                     int                                     new_col,                                     int                                     old_col)
                         {
                                                 // check current pixel is old_color or not
                                                 if                                     (getpixel(x, y) == old_col) {

                                                 // put new pixel with new color
                                                 putpixel(x, y, new_col);

                                                 // recursive call for bottom pixel fill
                                                 flood(x + 1, y, new_col, old_col);

                                                 // recursive call for top pixel fill
                                                 flood(x - 1, y, new_col, old_col);

                                                 // recursive call for right pixel fill
                                                 flood(x, y + 1, new_col, old_col);

                                                 // recursive call for left pixel fill
                                                 flood(x, y - 1, new_col, old_col);
                                                 }
                         }

                         int                                     main()
                         {
                                                 int                                     gd, gm = DETECT;

                                                 // initialize graph
                                                 initgraph(&gd, &gm,                                     ""                                     );

                                                 // rectangle coordinate
                                                 int                                     top, left, bottom, right;

                                                 top = left = 50;
                                                 bottom = right = 300;

                                                 // rectangle for print rectangle
                                                 rectangle(left, top, right, bottom);

                                                 // filling start coordinate
                                                 int                                     x = 51;
                                                 int                                     y = 51;

                                                 // new color to fill
                                                 int                                     newcolor = 12;

                                                 // new color which you want to fill
                                                 int                                     oldcolor = 0;

                                                 // call for fill rectangle
                                                 flood(x, y, newcolor, oldcolor);
                                                 getch();

                                                 return                                     0;
                         }

输出：-

图片[3]-基于C图形的洪水填充算法-yiteyi-C++库
