数据传输操作是网络和路由的一个关键方面。因此，必须以最低的硬件成本（光缆、WDM网络组件、解码器、多路复用器）和尽可能短的时间实现高效的数据传输操作。因此，需要提出一种算法来寻找两个节点（源节点和目标节点）之间的最短路径。

null

让我们来看看一个全新的算法，它不同于Dijkstra的最短路径或任何其他寻找最短路径的算法。

给定一个图和两个节点（源节点和目标节点），找出它们之间的最短路径。图片[1]-光网络的概率最短路径路由算法-yiteyi-C++库

让我们计算每个链接的距离比：

链路AB的距离[用符号表示] d(AB) ] = 10 链路的距离AC[表示为 d(AC) ] = 12

链接 AB ，距离比AB=d（AB）/（d（AB）+d（AC））链接 自动控制 ，距离比AC=d（AC）/（d（AB）+d（AC））

算法：

Given a graph and two nodes -

1. Find all the paths connecting the two nodes.
2. For each path calculate probability = (Distance Ratio).
3. After looping over all such paths, find the path for
   which the probability turns out to be minimum.

例如：

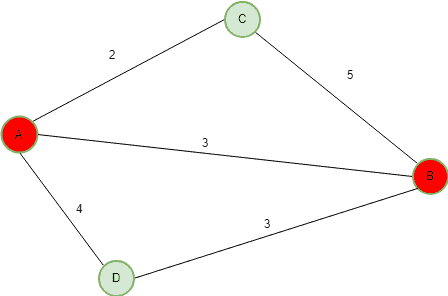

Input :

Output : Shortest Path is [A -> B]


Explanation :
All possible paths are
P1 = [A->B]
P2 = [A->C->B]
P3 = [A->D->B]

total distance D = d(P1) + d(P2) + d(P3)
                 = (3) + (2 + 5) + (4 + 3)
                 = 17

distance ratio for P1 = d(P1) / D = 3/17
distance ratio for P2 = d(P2) / D = 7/17
distance ratio for P3 = d(P3) / D = 7/17

So the shortest path is  P1 = [A->B]

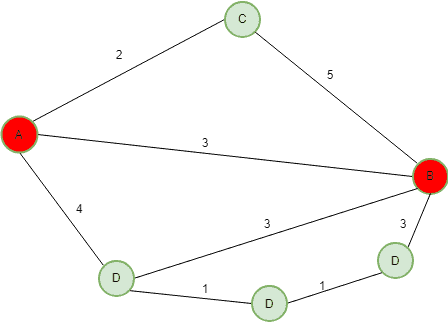

Input :

Output : Shortest Path is [A -> B]

推荐：请尝试你的方法 {IDE} 首先，在进入解决方案之前。

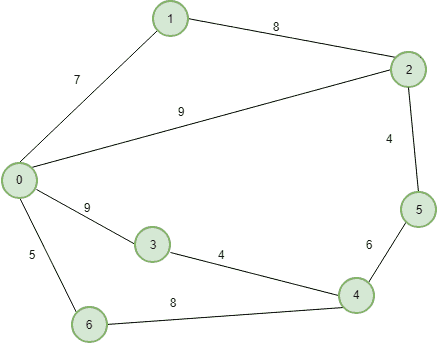

让我们用一个7节点网络来说明该算法，并找出两个节点之间的概率最短路径 node 1 和 node 5 .

图片[4]-光网络的概率最短路径路由算法-yiteyi-C++库

以下是实施情况：

                     # Python program to find Probabilistic
                     # shortest path routing algorithm for
                     # optical networks

                     # importing random module
                     import                               random

                     # Number of nodes
                     NODES                               =                               7

                     # very small invalid
                     # when no link exists
                     INVALID                               =                               0.001


                     distance_links                               =                               [[INVALID                               for                               i                               in                               range                               (NODES)]
                                         for                               j                               in                               range                               (NODES)]
                     # distance of each link
                     distance_links[                               0                               ][                               1                               ]                               =                               7
                     distance_links[                               1                               ][                               0                               ]                               =                               7
                     distance_links[                               1                               ][                               2                               ]                               =                               8
                     distance_links[                               2                               ][                               1                               ]                               =                               8
                     distance_links[                               0                               ][                               2                               ]                               =                               9
                     distance_links[                               2                               ][                               0                               ]                               =                               9
                     distance_links[                               3                               ][                               0                               ]                               =                               9
                     distance_links[                               0                               ][                               3                               ]                               =                               9
                     distance_links[                               4                               ][                               3                               ]                               =                               4
                     distance_links[                               3                               ][                               4                               ]                               =                               4
                     distance_links[                               5                               ][                               4                               ]                               =                               6
                     distance_links[                               4                               ][                               5                               ]                               =                               6
                     distance_links[                               5                               ][                               2                               ]                               =                               4
                     distance_links[                               2                               ][                               5                               ]                               =                               4
                     distance_links[                               4                               ][                               6                               ]                               =                               8
                     distance_links[                               6                               ][                               4                               ]                               =                               8
                     distance_links[                               0                               ][                               6                               ]                               =                               5
                     distance_links[                               6                               ][                               0                               ]                               =                               5



                     # Finds next node from current node
                     def                               next_node(s):
                                         nxt                               =                               []

                                         for                               i                               in                               range                               (NODES):
                                         if                               (distance_links[s][i] !                               =                               INVALID):
                                         nxt.append(i)
                                         return                               nxt

                     # Find simple paths for each
                     def                               find_simple_paths(start, end):
                                         visited                               =                               set                               ()
                                         visited.add(start)

                                         nodestack                               =                               list                               ()
                                         indexstack                               =                               list                               ()
                                         current                               =                               start
                                         i                               =                               0

                                         while                               True                               :

                                         # get a list of the neighbors
                                         # of the current node
                                         neighbors                               =                               next_node(current)

                                         # Find the next unvisited neighbor
                                         # of this node, if any
                                         while                               i <                               len                               (neighbors)                               and                               neighbors[i]                               in                               visited:
                                         i                               +                               =                               1

                                         if                               i >                               =                               len                               (neighbors):
                                         visited.remove(current)

                                         if                               len                               (nodestack) <                               1                               :
                                         break

                                         current                               =                               nodestack.pop()
                                         i                               =                               indexstack.pop()

                                         elif                               neighbors[i]                               =                               =                               end:
                                         yield                               nodestack                               +                               [current, end]
                                         i                               +                               =                               1

                                         else                               :
                                         nodestack.append(current)
                                         indexstack.append(i                               +                               1                               )
                                         visited.add(neighbors[i])
                                         current                               =                               neighbors[i]
                                         i                               =                               0

                     # Find the shortest path
                     def                               solution(sour, dest):

                                         block                               =                               0
                                         l                               =                               []
                                         for                               path                               in                               find_simple_paths(sour, dest):
                                         l.append(path)

                                         k                               =                               0
                                         for                               i                               in                               range                               (                               len                               (l)):
                                         su                               =                               0
                                         for                               j                               in                               range                               (                               1                               ,                               len                               (l[i])):
                                         su                               +                               =                               (distance_links[l[i][j                               -                               1                               ]]
                                         [l[i][j]])
                                         k                               +                               =                               su

                                         # print k
                                         dist_prob                               =                               []
                                         probability                               =                               []

                                         for                               i                               in                               range                               (                               len                               (l)):
                                         s, su                               =                               0                               ,                               0

                                         for                               j                               in                               range                               (                               1                               ,                               len                               (l[i])):

                                         su                               +                               =                               (distance_links[l[i][j                               -                               1                               ]]
                                         [l[i][j]])

                                         dist_prob.append(su                               /                               (                               1.0                               *                               k))


                                         for                               m                               in                               range                               (                               len                               (dist_prob)):
                                         z                               =                               (dist_prob[m])
                                         probability.append(z)

                                         for                               i                               in                               range                               (                               len                               (probability)):
                                         if                               (probability[i]                               =                               =                               min                               (probability)):

                                         z                               =                               l[i]
                                         print                               (                               "Shortest Path is"                               , end                               =                               " "                               )
                                         print                               (z)

                     # Driver Code
                     if                               __name__                               =                               =                               '__main__'                               :
                                         source, dest                               =                               1                               ,                               5

                                         # Calling the solution function
                                         solution(source, dest)

输出：

Shortest Path is [1, 2, 5]

与常见最短路径算法相比的优势： 大多数最短路径算法都是贪婪算法。所以它基于这样一个事实：一个最优解导致一个全局最优解。在大多数情况下，由于贪婪的性质，它可能并不总是导致最优解。但是使用这种算法，人们总是可以保证一个最优解，因此准确率是100%。
