先决条件： 求解线性方程组的高斯消去法 导言： Gauss-Jordan方法，也称为Gauss-Jordan消去法，用于求解线性方程组，是高斯消去法 . 它与高斯消去法相似且简单，因为我们必须在高斯消去法中执行两个不同的过程，即。 1）形成上三角矩阵，以及 2）背部替代但在高斯-乔丹消去法的情况下，我们只需要形成一个简化的行梯队形式（对角矩阵）。下面给出了高斯-乔丹消去法的流程图。 高斯-乔丹消去法流程图：

null

图片[1]-Gauss-Jordan消去法程序-yiteyi-C++库

例如：

Input :  2y + z = 4         x + y + 2z = 6         2x + y + z = 7Output :Final Augmented Matrix is : 1 0 0 2.2 0 2 0 2.8 0 0 -2.5 -3 Result is : 2.2 1.4 1.2

说明： 下面是对上述例子的解释。

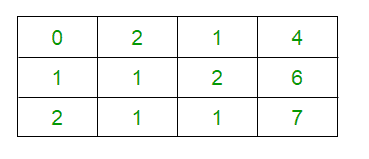

输入增广矩阵为：

图片[2]-Gauss-Jordan消去法程序-yiteyi-C++库

交换R1和R2，我们得到

图片[3]-Gauss-Jordan消去法程序-yiteyi-C++库

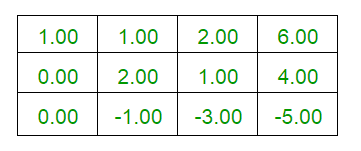

执行行操作R3

图片[4]-Gauss-Jordan消去法程序-yiteyi-C++库

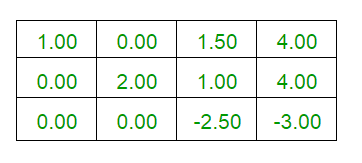

执行行操作R1

图片[5]-Gauss-Jordan消去法程序-yiteyi-C++库

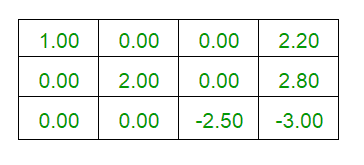

执行R1

图片[6]-Gauss-Jordan消去法程序-yiteyi-C++库

独特的解决方案包括：

图片[7]-Gauss-Jordan消去法程序-yiteyi-C++库

C++

                         // C++ Implementation for Gauss-Jordan
                         // Elimination Method
                         #include <bits/stdc++.h>
                         using                                     namespace                                     std;

                         #define M 10

                         // Function to print the matrix
                         void                                     PrintMatrix(                                     float                                     a[][M],                                     int                                     n)
                         {
                                                 for                                     (                                     int                                     i = 0; i < n; i++) {
                                                 for                                     (                                     int                                     j = 0; j <= n; j++)
                                                 cout << a[i][j] <<                                     " "                                     ;
                                                 cout << endl;
                                                 }
                         }

                         // function to reduce matrix to reduced
                         // row echelon form.
                         int                                     PerformOperation(                                     float                                     a[][M],                                     int                                     n)
                         {
                                                 int                                     i, j, k = 0, c, flag = 0, m = 0;
                                                 float                                     pro = 0;

                                                 // Performing elementary operations
                                                 for                                     (i = 0; i < n; i++)
                                                 {
                                                 if                                     (a[i][i] == 0)
                                                 {
                                                 c = 1;
                                                 while                                     ((i + c) < n && a[i + c][i] == 0)
                                                 c++;
                                                 if                                     ((i + c) == n) {
                                                 flag = 1;
                                                 break                                     ;
                                                 }
                                                 for                                     (j = i, k = 0; k <= n; k++)
                                                 swap(a[j][k], a[j+c][k]);
                                                 }

                                                 for                                     (j = 0; j < n; j++) {

                                                 // Excluding all i == j
                                                 if                                     (i != j) {

                                                 // Converting Matrix to reduced row
                                                 // echelon form(diagonal matrix)
                                                 float                                     pro = a[j][i] / a[i][i];

                                                 for                                     (k = 0; k <= n; k++)
                                                 a[j][k] = a[j][k] - (a[i][k]) * pro;
                                                 }
                                                 }
                                                 }
                                                 return                                     flag;
                         }

                         // Function to print the desired result
                         // if unique solutions exists, otherwise
                         // prints no solution or infinite solutions
                         // depending upon the input given.
                         void                                     PrintResult(                                     float                                     a[][M],                                     int                                     n,                                     int                                     flag)
                         {
                                                 cout <<                                     "Result is : "                                     ;

                                                 if                                     (flag == 2)
                                                 cout <<                                     "Infinite Solutions Exists"                                     << endl;
                                                 else                                     if                                     (flag == 3)
                                                 cout <<                                     "No Solution Exists"                                     << endl;


                                                 // Printing the solution by dividing constants by
                                                 // their respective diagonal elements
                                                 else                                     {
                                                 for                                     (                                     int                                     i = 0; i < n; i++)
                                                 cout << a[i][n] / a[i][i] <<                                     " "                                     ;
                                                 }
                         }

                         // To check whether infinite solutions
                         // exists or no solution exists
                         int                                     CheckConsistency(                                     float                                     a[][M],                                     int                                     n,                                     int                                     flag)
                         {
                                                 int                                     i, j;
                                                 float                                     sum;

                                                 // flag == 2 for infinite solution
                                                 // flag == 3 for No solution
                                                 flag = 3;
                                                 for                                     (i = 0; i < n; i++)
                                                 {
                                                 sum = 0;
                                                 for                                     (j = 0; j < n; j++)
                                                 sum = sum + a[i][j];
                                                 if                                     (sum == a[i][j])
                                                 flag = 2;
                                                 }
                                                 return                                     flag;
                         }

                         // Driver code
                         int                                     main()
                         {
                                                 float                                     a[M][M] = {{ 0, 2, 1, 4 },
                                                 { 1, 1, 2, 6 },
                                                 { 2, 1, 1, 7 }};

                                                 // Order of Matrix(n)
                                                 int                                     n = 3, flag = 0;

                                                 // Performing Matrix transformation
                                                 flag = PerformOperation(a, n);

                                                 if                                     (flag == 1)
                                                 flag = CheckConsistency(a, n, flag);

                                                 // Printing Final Matrix
                                                 cout <<                                     "Final Augmented Matrix is : "                                     << endl;
                                                 PrintMatrix(a, n);
                                                 cout << endl;

                                                 // Printing Solutions(if exist)
                                                 PrintResult(a, n, flag);

                                                 return                                     0;
                         }

JAVA

                         // Java Implementation for Gauss-Jordan
                         // Elimination Method
                         class                                     GFG {

                         static                                     int                                     M =                                     10                                     ;

                         // Function to print the matrix
                         static                                     void                                     PrintMatrix(                                     float                                     a[][],                                     int                                     n)
                         {
                                                 for                                     (                                     int                                     i =                                     0                                     ; i < n; i++)
                                                 {
                                                 for                                     (                                     int                                     j =                                     0                                     ; j <= n; j++)
                                                 System.out.print(a[i][j] +                                     " "                                     );
                                                 System.out.println();
                                                 }
                         }

                         // function to reduce matrix to reduced
                         // row echelon form.
                         static                                     int                                     PerformOperation(                                     float                                     a[][],                                     int                                     n)
                         {
                                                 int                                     i, j, k =                                     0                                     , c, flag =                                     0                                     , m =                                     0                                     ;
                                                 float                                     pro =                                     0                                     ;

                                                 // Performing elementary operations
                                                 for                                     (i =                                     0                                     ; i < n; i++)
                                                 {
                                                 if                                     (a[i][i] ==                                     0                                     )
                                                 {
                                                 c =                                     1                                     ;
                                                 while                                     ((i + c) < n && a[i + c][i] ==                                     0                                     )
                                                 c++;
                                                 if                                     ((i + c) == n)
                                                 {
                                                 flag =                                     1                                     ;
                                                 break                                     ;
                                                 }
                                                 for                                     (j = i, k =                                     0                                     ; k <= n; k++)
                                                 {
                                                 float                                     temp =a[j][k];
                                                 a[j][k] = a[j+c][k];
                                                 a[j+c][k] = temp;
                                                 }
                                                 }

                                                 for                                     (j =                                     0                                     ; j < n; j++)
                                                 {

                                                 // Excluding all i == j
                                                 if                                     (i != j)
                                                 {

                                                 // Converting Matrix to reduced row
                                                 // echelon form(diagonal matrix)
                                                 float                                     p = a[j][i] / a[i][i];

                                                 for                                     (k =                                     0                                     ; k <= n; k++)
                                                 a[j][k] = a[j][k] - (a[i][k]) * p;
                                                 }
                                                 }
                                                 }
                                                 return                                     flag;
                         }

                         // Function to print the desired result
                         // if unique solutions exists, otherwise
                         // prints no solution or infinite solutions
                         // depending upon the input given.
                         static                                     void                                     PrintResult(                                     float                                     a[][],                                     int                                     n,                                     int                                     flag)
                         {
                                                 System.out.print(                                     "Result is : "                                     );

                                                 if                                     (flag ==                                     2                                     )
                                                 System.out.println(                                     "Infinite Solutions Exists"                                     );
                                                 else                                     if                                     (flag ==                                     3                                     )
                                                 System.out.println(                                     "No Solution Exists"                                     );


                                                 // Printing the solution by dividing constants by
                                                 // their respective diagonal elements
                                                 else                                     {
                                                 for                                     (                                     int                                     i =                                     0                                     ; i < n; i++)
                                                 System.out.print(a[i][n] / a[i][i] +                                     " "                                     );
                                                 }
                         }

                         // To check whether infinite solutions
                         // exists or no solution exists
                         static                                     int                                     CheckConsistency(                                     float                                     a[][],                                     int                                     n,                                     int                                     flag)
                         {
                                                 int                                     i, j;
                                                 float                                     sum;

                                                 // flag == 2 for infinite solution
                                                 // flag == 3 for No solution
                                                 flag =                                     3                                     ;
                                                 for                                     (i =                                     0                                     ; i < n; i++)
                                                 {
                                                 sum =                                     0                                     ;
                                                 for                                     (j =                                     0                                     ; j < n; j++)
                                                 sum = sum + a[i][j];
                                                 if                                     (sum == a[i][j])
                                                 flag =                                     2                                     ;
                                                 }
                                                 return                                     flag;
                         }

                         // Driver code
                         public                                     static                                     void                                     main(String[] args)
                         {
                                                 float                                     a[][] = {{                                     0                                     ,                                     2                                     ,                                     1                                     ,                                     4                                     },
                                                 {                                     1                                     ,                                     1                                     ,                                     2                                     ,                                     6                                     },
                                                 {                                     2                                     ,                                     1                                     ,                                     1                                     ,                                     7                                     }};

                                                 // Order of Matrix(n)
                                                 int                                     n =                                     3                                     , flag =                                     0                                     ;

                                                 // Performing Matrix transformation
                                                 flag = PerformOperation(a, n);

                                                 if                                     (flag ==                                     1                                     )
                                                 flag = CheckConsistency(a, n, flag);

                                                 // Printing Final Matrix
                                                 System.out.println(                                     "Final Augmented Matrix is : "                                     );
                                                 PrintMatrix(a, n);
                                                 System.out.println(                                     ""                                     );

                                                 // Printing Solutions(if exist)
                                                 PrintResult(a, n, flag);
                         }
                         }

                         /* This code contributed by PrinciRaj1992 */

C#

                         // C# Implementation for Gauss-Jordan
                         // Elimination Method
                         using                                     System;
                         using                                     System.Collections.Generic;

                         class                                     GFG
                         {
                         static                                     int                                     M = 10;

                         // Function to print the matrix
                         static                                     void                                     PrintMatrix(                                     float                                     [,]a,                                     int                                     n)
                         {
                                                 for                                     (                                     int                                     i = 0; i < n; i++)
                                                 {
                                                 for                                     (                                     int                                     j = 0; j <= n; j++)
                                                 Console.Write(a[i, j] +                                     " "                                     );
                                                 Console.WriteLine();
                                                 }
                         }

                         // function to reduce matrix to reduced
                         // row echelon form.
                         static                                     int                                     PerformOperation(                                     float                                     [,]a,                                     int                                     n)
                         {
                                                 int                                     i, j, k = 0, c, flag = 0;

                                                 // Performing elementary operations
                                                 for                                     (i = 0; i < n; i++)
                                                 {
                                                 if                                     (a[i, i] == 0)
                                                 {
                                                 c = 1;
                                                 while                                     ((i + c) < n && a[i + c, i] == 0)
                                                 c++;
                                                 if                                     ((i + c) == n)
                                                 {
                                                 flag = 1;
                                                 break                                     ;
                                                 }
                                                 for                                     (j = i, k = 0; k <= n; k++)
                                                 {
                                                 float                                     temp = a[j, k];
                                                 a[j, k] = a[j + c, k];
                                                 a[j + c, k] = temp;
                                                 }
                                                 }

                                                 for                                     (j = 0; j < n; j++)
                                                 {

                                                 // Excluding all i == j
                                                 if                                     (i != j)
                                                 {

                                                 // Converting Matrix to reduced row
                                                 // echelon form(diagonal matrix)
                                                 float                                     p = a[j, i] / a[i, i];

                                                 for                                     (k = 0; k <= n; k++)
                                                 a[j, k] = a[j, k] - (a[i, k]) * p;
                                                 }
                                                 }
                                                 }
                                                 return                                     flag;
                         }

                         // Function to print the desired result
                         // if unique solutions exists, otherwise
                         // prints no solution or infinite solutions
                         // depending upon the input given.
                         static                                     void                                     PrintResult(                                     float                                     [,]a,
                                                 int                                     n,                                     int                                     flag)
                         {
                                                 Console.Write(                                     "Result is : "                                     );

                                                 if                                     (flag == 2)
                                                 Console.WriteLine(                                     "Infinite Solutions Exists"                                     );
                                                 else                                     if                                     (flag == 3)
                                                 Console.WriteLine(                                     "No Solution Exists"                                     );

                                                 // Printing the solution by dividing
                                                 // constants by their respective
                                                 // diagonal elements
                                                 else
                                                 {
                                                 for                                     (                                     int                                     i = 0; i < n; i++)
                                                 Console.Write(a[i, n] / a[i, i] +                                     " "                                     );
                                                 }
                         }

                         // To check whether infinite solutions
                         // exists or no solution exists
                         static                                     int                                     CheckConsistency(                                     float                                     [,]a,
                                                 int                                     n,                                     int                                     flag)
                         {
                                                 int                                     i, j;
                                                 float                                     sum;

                                                 // flag == 2 for infinite solution
                                                 // flag == 3 for No solution
                                                 flag = 3;
                                                 for                                     (i = 0; i < n; i++)
                                                 {
                                                 sum = 0;
                                                 for                                     (j = 0; j < n; j++)
                                                 sum = sum + a[i, j];
                                                 if                                     (sum == a[i, j])
                                                 flag = 2;
                                                 }
                                                 return                                     flag;
                         }

                         // Driver code
                         public                                     static                                     void                                     Main(String[] args)
                         {
                                                 float                                     [,]a = {{ 0, 2, 1, 4 },
                                                 { 1, 1, 2, 6 },
                                                 { 2, 1, 1, 7 }};

                                                 // Order of Matrix(n)
                                                 int                                     n = 3, flag = 0;

                                                 // Performing Matrix transformation
                                                 flag = PerformOperation(a, n);

                                                 if                                     (flag == 1)
                                                 flag = CheckConsistency(a, n, flag);

                                                 // Printing Final Matrix
                                                 Console.WriteLine(                                     "Final Augmented Matrix is : "                                     );
                                                 PrintMatrix(a, n);
                                                 Console.WriteLine(                                     ""                                     );

                                                 // Printing Solutions(if exist)
                                                 PrintResult(a, n, flag);
                         }
                         }

                         // This code is contributed by 29AjayKumar

Javascript

                         <script>

                         // JavaScript Implementation for Gauss-Jordan
                         // Elimination Method

                         let M = 10;

                         // Function to print the matrix
                         function                                     PrintMatrix(a,n)
                         {
                                                 for                                     (let i = 0; i < n; i++)
                                                 {
                                                 for                                     (let j = 0; j <= n; j++)
                                                 document.write(a[i][j] +                                     " "                                     );
                                                 document.write(                                     "<br>"                                     );
                                                 }
                         }

                         // function to reduce matrix to reduced
                         // row echelon form.
                         function                                     PerformOperation(a,n)
                         {
                                                 let i, j, k = 0, c, flag = 0, m = 0;
                                                 let pro = 0;

                                                 // Performing elementary operations
                                                 for                                     (i = 0; i < n; i++)
                                                 {
                                                 if                                     (a[i][i] == 0)
                                                 {
                                                 c = 1;
                                                 while                                     ((i + c) < n && a[i + c][i] == 0)
                                                 c++;
                                                 if                                     ((i + c) == n)
                                                 {
                                                 flag = 1;
                                                 break                                     ;
                                                 }
                                                 for                                     (j = i, k = 0; k <= n; k++)
                                                 {
                                                 let temp =a[j][k];
                                                 a[j][k] = a[j+c][k];
                                                 a[j+c][k] = temp;
                                                 }
                                                 }

                                                 for                                     (j = 0; j < n; j++)
                                                 {

                                                 // Excluding all i == j
                                                 if                                     (i != j)
                                                 {

                                                 // Converting Matrix to reduced row
                                                 // echelon form(diagonal matrix)
                                                 let p = a[j][i] / a[i][i];

                                                 for                                     (k = 0; k <= n; k++)
                                                 a[j][k] = a[j][k] - (a[i][k]) * p;
                                                 }
                                                 }
                                                 }
                                                 return                                     flag;
                         }

                         // Function to print the desired result
                         // if unique solutions exists, otherwise
                         // prints no solution or infinite solutions
                         // depending upon the input given.
                         function                                     PrintResult(a,n,flag)
                         {
                                                 document.write(                                     "Result is : "                                     );

                                                 if                                     (flag == 2)
                                                 document.write(                                     "Infinite Solutions Exists<br>"                                     );
                                                 else                                     if                                     (flag == 3)
                                                 document.write(                                     "No Solution Exists<br>"                                     );


                                                 // Printing the solution by dividing constants by
                                                 // their respective diagonal elements
                                                 else                                     {
                                                 for                                     (let i = 0; i < n; i++)
                                                 document.write(a[i][n] / a[i][i] +                                     " "                                     );
                                                 }
                         }

                         // To check whether infinite solutions
                         // exists or no solution exists
                         function                                     CheckConsistency(a,n,flag)
                         {
                                                 let i, j;
                                                 let sum;

                                                 // flag == 2 for infinite solution
                                                 // flag == 3 for No solution
                                                 flag = 3;
                                                 for                                     (i = 0; i < n; i++)
                                                 {
                                                 sum = 0;
                                                 for                                     (j = 0; j < n; j++)
                                                 sum = sum + a[i][j];
                                                 if                                     (sum == a[i][j])
                                                 flag = 2;
                                                 }
                                                 return                                     flag;
                         }

                         // Driver code
                         let a=[[ 0, 2, 1, 4 ],
                                                 [ 1, 1, 2, 6 ],
                                                 [ 2, 1, 1, 7 ]];
                         // Order of Matrix(n)
                         let n = 3, flag = 0;

                         // Performing Matrix transformation
                         flag = PerformOperation(a, n);

                         if                                     (flag == 1)
                                                 flag = CheckConsistency(a, n, flag);

                         // Printing Final Matrix
                         document.write(                                     "Final Augmented Matrix is : <br>"                                     );
                         PrintMatrix(a, n);
                         document.write(                                     "<br>"                                     );

                         // Printing Solutions(if exist)
                         PrintResult(a, n, flag);



                         // This code is contributed by rag2127

                         </script>

输出

Final Augmented Matrix is : 1 0 0 2.2 0 2 0 2.8 0 0 -2.5 -3 Result is : 2.2 1.4 1.2

应用：

求解线性方程组： Gauss-Jordan消去法可用于求解线性方程组，该方法在数学中应用广泛。
寻找决定因素： 高斯消去法可以应用于方阵，以找到矩阵的行列式。
求矩阵的逆： 高斯-乔丹消去法可用于确定方阵的逆。
寻找等级和基础： 利用简化的行梯队形式，可以用高斯消去法计算方阵的秩和基。

文章版权归作者所有，未经允许请勿转载。

THE END

技术文章
