不以“THE”结尾的字符串的DFA

问题—— 接受不以子字符串“THE”结尾的字符串。检查给定字符串是否以“the”结尾。字符串末尾避免的“The”的不同形式有:

null
"THE", "ThE", "THe", "tHE", "thE", "The", "tHe" and "the"

不接受以上述任何形式的“the”结尾的所有字符串。

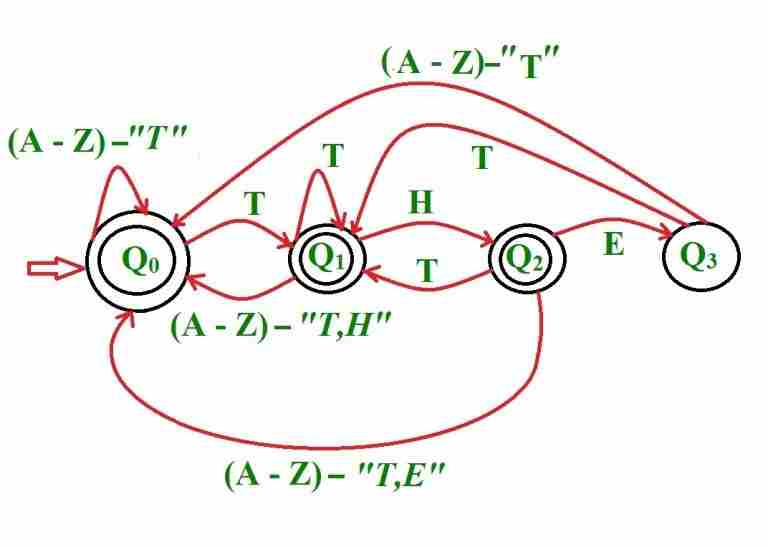

Determinitis是字符串的有限自动机(DFA),不以“THE”结尾- 此dfa中的初始和起始状态为Qo

图片[1]-不以“THE”结尾的字符串的DFA-yiteyi-C++库

项目中使用的方法—— 在这个程序中,考虑4个状态是0, 1, 2和3。现在让我们取一个名为DFA的变量,它的初始值为0。无论何时发生任何转换,它都会用与新状态关联的数字更新DFA的值。

例子: 如果发生从状态0到状态1的转换,则DFA的值将更新为1。如果发生从状态2到状态3的转换,则dfa的值将更新为3。这样,在整个字符串上应用这个算法,如果最后达到状态0、1或2,那么我们的字符串将被接受,否则不会被接受。

Input : XYzabCtheOutput : NOT ACCEPTEDInput :  ThemaliktthOutput :  ACCEPTED

C++

// C++ program to implement DFS that accepts
// all string that do not end with "THE"
#include <iostream>
using namespace std;
// dfa tells the number associated
// with the present state
int dfa = 0;
// This function is for
// the starting state (zeroth) of DFA
void start( char c)
{
// On receiving 'T' or 't' goto
// first state (1)
if (c == 't' || c == 'T' )
dfa = 1;
}
// This function is for the first state of DFA
void state1( char c)
{
// On receiving 'T' or 't' goto
// first state (1)
if (c == 't' || c == 'T' )
dfa = 1;
// On receiving 'H' or 'h'
// goto second state (2)
else if (c == 'h' || c == 'H' )
dfa = 2;
// Else goto starting state (0)
else
dfa = 0;
}
// This function is for the second state of DFA
void state2( char c)
{
// On receiving 'E' or 'e' goto third state (3)
// else goto starting state (0)
if (c == 'e' || c == 'E' )
dfa = 3;
else if (c == 't' || c == 'T' )
dfa = 1;
else
dfa = 0;
}
// This function is for the third state of DFA
void state3( char c)
{
// On receiving 'T' or 't' goto first state (1)
// else goto starting state (0)
if (c == 't' || c == 'T' )
dfa = 1;
else
dfa = 0;
}
bool isAccepted(string str)
{
// Store length of string
int len = str.length();
for ( int i = 0; i < len; i++)
{
if (dfa == 0)
start(str[i]);
else if (dfa == 1)
state1(str[i]);
else if (dfa == 2)
state2(str[i]);
else
state3(str[i]);
}
return (dfa != 3);
}
// Driver code
int main()
{
string str = "forTHEgeeks" ;
if (isAccepted(str) == true )
cout << "ACCEPTED" ;
else
cout << "NOT ACCEPTED" ;
return 0;
}
// This code is contributed by ShubhamSingh10


C

// C program to implement DFS that accepts
// all string that do not end with "THE"
#include <stdio.h>
#include <string.h>
// dfa tells the number associated
// with the present state
int dfa = 0;
// This function is for
// the starting state (zeroth) of DFA
void start( char c)
{
// On receiving 'T' or 't' goto first state (1)
if (c == 't' || c == 'T' )
dfa = 1;
}
// This function is for the first state of DFA
void state1( char c)
{
// On receiving 'T' or 't' goto first state (1)
if (c == 't' || c == 'T' )
dfa = 1;
// On receiving 'H' or 'h' goto second state (2)
else if (c == 'h' || c == 'H' )
dfa = 2;
// else goto starting state (0)
else
dfa = 0;
}
// This function is for the second state of DFA
void state2( char c)
{
// On receiving 'E' or 'e' goto third state (3)
// else goto starting state (0)
if (c == 'e' || c == 'E' )
dfa = 3;
else if (c == 't' || c == 'T' )
dfa = 1;
else
dfa = 0;
}
// This function is for the third state of DFA
void state3( char c)
{
// On receiving 'T' or 't' goto first state (1)
// else goto starting state (0)
if (c == 't' || c == 'T' )
dfa = 1;
else
dfa = 0;
}
bool isAccepted( char str[])
{
// store length of string
int len = strlen (str);
for ( int i=0; i < len; i++) {
if (dfa == 0)
start(str[i]);
else if (dfa == 1)
state1(str[i]);
else if (dfa == 2)
state2(str[i]);
else
state3(str[i]);
}
return (dfa != 3);
}
// driver code
int main()
{
char str[] = "forTHEgeeks" ;
if (isAccepted(str) == true )
printf ( "ACCEPTED" );
else
printf ( "NOT ACCEPTED" );
return 0;
}


JAVA

// Java program to implement DFS that accepts
// all string that do not end with "THE"
import java.util.*;
class GFG
{
// dfa tells the number associated
// with the present state
static int dfa = 0 ;
// This function is for
// the starting state (zeroth) of DFA
static void start( char c)
{
// On receiving 'T' or 't' goto first state (1)
if (c == 't' || c == 'T' )
dfa = 1 ;
}
// This function is for the first state of DFA
static void state1( char c)
{
// On receiving 'T' or 't' goto first state (1)
if (c == 't' || c == 'T' )
dfa = 1 ;
// On receiving 'H' or 'h' goto second state (2)
else if (c == 'h' || c == 'H' )
dfa = 2 ;
// else goto starting state (0)
else
dfa = 0 ;
}
// This function is for the second state of DFA
static void state2( char c)
{
// On receiving 'E' or 'e' goto third state (3)
// else goto starting state (0)
if (c == 'e' || c == 'E' )
dfa = 3 ;
else
dfa = 0 ;
}
// This function is for the third state of DFA
static void state3( char c)
{
// On receiving 'T' or 't' goto first state (1)
// else goto starting state (0)
if (c == 't' || c == 'T' )
dfa = 1 ;
else
dfa = 0 ;
}
static boolean isAccepted( char str[])
{
// store length of string
int len = str.length;
for ( int i= 0 ; i < len; i++)
{
if (dfa == 0 )
start(str[i]);
else if (dfa == 1 )
state1(str[i]);
else if (dfa == 2 )
state2(str[i]);
else
state3(str[i]);
}
return (dfa != 3 );
}
// Driver code
public static void main(String[] args)
{
char str[] = "forTHEgeeks" .toCharArray();
if (isAccepted(str) == true )
System.out.println( "ACCEPTED" );
else
System.out.println( "NOT ACCEPTED" );
}
}
/* This code is contributed by PrinciRaj1992 */


Python3

# Python3 program to implement DFS that accepts
# all stringing that do not end with "THE"
# This function is for the starting
# state (zeroth) of DFA
def start(c):
# On receiving 'T' or 't' goto
# first state (1)
if (c = = 't' or c = = 'T' ):
dfa = 1
# This function is for the first state of DFA
def state1(c):
# On receiving 'T' or 't' goto first state (1)
if (c = = 't' or c = = 'T' ):
dfa = 1
# On receiving 'H' or 'h' goto second state (2)
elif (c = = 'h' or c = = 'H' ):
dfa = 2
# else goto starting state (0)
else :
dfa = 0
# This function is for the second state of DFA
def state2(c):
# On receiving 'E' or 'e' goto third
# state (3) else goto starting state (0)
if (c = = 'e' or c = = 'E' ):
dfa = 3
else :
dfa = 0
# This function is for the third state of DFA
def state3(c):
# On receiving 'T' or 't' goto first
# state (1) else goto starting state (0)
if (c = = 't' or c = = 'T' ):
dfa = 1
else :
dfa = 0
def isAccepted(string):
# store length of stringing
length = len (string)
for i in range (length):
if (dfa = = 0 ):
start(string[i])
elif (dfa = = 1 ):
state1(string[i])
elif (dfa = = 2 ):
state2(string[i])
else :
state3(string[i])
return (dfa ! = 3 )
# Driver Code
if __name__ = = "__main__" :
string = "forTHEgeeks"
# dfa tells the number associated
# with the present state
dfa = 0
if isAccepted(string):
print ( "ACCEPTED" )
else :
print ( "NOT ACCEPTED" )
# This code is contributed by SHUBHAMSINGH10


C#

// C# program to implement DFS that accepts
// all string that do not end with "THE"
using System;
class GFG
{
// dfa tells the number associated
// with the present state
static int dfa = 0;
// This function is for
// the starting state (zeroth) of DFA
static void start( char c)
{
// On receiving 'T' or 't' goto first state (1)
if (c == 't' || c == 'T' )
dfa = 1;
}
// This function is for the first state of DFA
static void state1( char c)
{
// On receiving 'T' or 't' goto first state (1)
if (c == 't' || c == 'T' )
dfa = 1;
// On receiving 'H' or 'h' goto second state (2)
else if (c == 'h' || c == 'H' )
dfa = 2;
// else goto starting state (0)
else
dfa = 0;
}
// This function is for the second state of DFA
static void state2( char c)
{
// On receiving 'E' or 'e' goto third state (3)
// else goto starting state (0)
if (c == 'e' || c == 'E' )
dfa = 3;
else
dfa = 0;
}
// This function is for the third state of DFA
static void state3( char c)
{
// On receiving 'T' or 't' goto first state (1)
// else goto starting state (0)
if (c == 't' || c == 'T' )
dfa = 1;
else
dfa = 0;
}
static bool isAccepted( char []str)
{
// store length of string
int len = str.Length;
for ( int i=0; i < len; i++)
{
if (dfa == 0)
start(str[i]);
else if (dfa == 1)
state1(str[i]);
else if (dfa == 2)
state2(str[i]);
else
state3(str[i]);
}
return (dfa != 3);
}
// Driver code
static public void Main ()
{
char []str = "forTHEgeeks" .ToCharArray();
if (isAccepted(str) == true )
Console.WriteLine( "ACCEPTED" );
else
Console.WriteLine( "NOT ACCEPTED" );
}
}
/* This code is contributed by ajit. */


PHP

<?php
// PHP program to implement DFS
// that accepts all string that
// do not end with "THE"
// dfa tells the number associated
// with the present state
$dfa = 0;
// This function is for the
// starting state (zeroth) of DFA
function start( $c )
{
global $dfa ;
// On receiving 'T' or 't'
// goto first state (1)
if ( $c == 't' || $c == 'T' )
$dfa = 1;
}
// This function is for
// the first state of DFA
function state1( $c )
{
global $dfa ;
// On receiving 'T' or 't'
// goto first state (1)
if ( $c == 't' || $c == 'T' )
$dfa = 1;
// On receiving 'H' or 'h'
// goto second state (2)
else if ( $c == 'h' || $c == 'H' )
$dfa = 2;
// else goto starting state (0)
else
$dfa = 0;
}
// This function is for
// the second state of DFA
function state2( $c )
{
global $dfa ;
// On receiving 'E' or 'e'
// goto third state (3) else
// goto starting state (0)
if ( $c == 'e' || $c == 'E' )
$dfa = 3;
else
$dfa = 0;
}
// This function is for
// the third state of DFA
function state3( $c )
{
global $dfa ;
// On receiving 'T' or 't'
// goto first state (1) else
// goto starting state (0)
if ( $c == 't' || $c == 'T' )
$dfa = 1;
else
$dfa = 0;
}
function isAccepted( $str )
{
global $dfa ;
// store length of string
$len = strlen ( $str );
for ( $i =0; $i < $len ; $i ++)
{
if ( $dfa == 0)
start( $str [ $i ]);
else if ( $dfa == 1)
state1( $str [ $i ]);
else if ( $dfa == 2)
state2( $str [ $i ]);
else
state3( $str [ $i ]);
}
return ( $dfa != 3);
}
// Driver Code
$str = "forTHEgeeks" ;
if (isAccepted( $str ) == true)
echo "ACCEPTED" ;
else
echo "NOT ACCEPTED" ;
// This code is contributed by m_kit
?>


Javascript

<script>
// Javascript program to
// implement DFS that accepts
// all string that do not end
// with "THE"
// dfa tells the number associated
// with the present state
let dfa = 0;
// This function is for
// the starting state (zeroth) of DFA
function start(c)
{
// On receiving 'T' or 't' goto
// first state (1)
if (c == 't' || c == 'T' )
dfa = 1;
}
// This function is for the first state of DFA
function state1(c)
{
// On receiving 'T' or 't' goto first state (1)
if (c == 't' || c == 'T' )
dfa = 1;
// On receiving 'H' or 'h' goto second state (2)
else if (c == 'h' || c == 'H' )
dfa = 2;
// else goto starting state (0)
else
dfa = 0;
}
// This function is for the second state of DFA
function state2(c)
{
// On receiving 'E' or 'e' goto third state (3)
// else goto starting state (0)
if (c == 'e' || c == 'E' )
dfa = 3;
else
dfa = 0;
}
// This function is for the third state of DFA
function state3(c)
{
// On receiving 'T' or 't' goto first state (1)
// else goto starting state (0)
if (c == 't' || c == 'T' )
dfa = 1;
else
dfa = 0;
}
function isAccepted(str)
{
// store length of string
let len = str.length;
for (let i=0; i < len; i++)
{
if (dfa == 0)
start(str[i]);
else if (dfa == 1)
state1(str[i]);
else if (dfa == 2)
state2(str[i]);
else
state3(str[i]);
}
return (dfa != 3);
}
let str = "forTHEgeeks" .split( '' );
if (isAccepted(str) == true )
document.write( "ACCEPTED" );
else
document.write( "NOT ACCEPTED" );
</script>


输出:

ACCEPTED

该程序的时间复杂度为O(n)

© 版权声明
THE END
喜欢就支持一下吧
点赞14 分享
