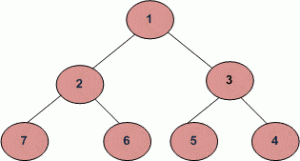

写一个函数来打印二叉树的曲折顺序遍历。对于下面的二叉树，将使用之字形顺序遍历 1 3 2 7 6 5 4.
null
![图片[1]-之字形树遍历-yiteyi-C++库](https://www.yiteyi.com/wp-content/uploads/geeks/geeks_spiral_order-300x161.gif)
这个问题可以用两个堆栈来解决。假设这两个堆栈是当前的： currentlevel和nextlevel。 我们还需要一个变量来跟踪当前的级别顺序（无论是从左到右还是从右到左）。我们从currentlevel堆栈弹出并打印节点值。只要当前级别的顺序是从左到右，就将节点推到左子级，然后将其右子级推到下一个堆栈级别。由于堆栈是后进先出（LIFO，Last-In-First_-out，后进先出）结构，所以下次节点从下一级弹出时，它的顺序将相反。另一方面，当当前级别的顺序是从右向左时，我们会先将节点推到右子节点，然后再推到其左子节点。最后，不要忘记在每个级别的末尾交换这两个堆栈（即当前级别为空时） 以下是上述方法的实施情况：
C++
// C++ implementation of a O(n) time method for // Zigzag order traversal #include <iostream> #include <stack> using namespace std; // Binary Tree node struct Node { int data; struct Node *left, *right; }; // function to print the zigzag traversal void zizagtraversal( struct Node* root) { // if null then return if (!root) return ; // declare two stacks stack< struct Node*> currentlevel; stack< struct Node*> nextlevel; // push the root currentlevel.push(root); // check if stack is empty bool lefttoright = true ; while (!currentlevel.empty()) { // pop out of stack struct Node* temp = currentlevel.top(); currentlevel.pop(); // if not null if (temp) { // print the data in it cout << temp->data << " " ; // store data according to current // order. if (lefttoright) { if (temp->left) nextlevel.push(temp->left); if (temp->right) nextlevel.push(temp->right); } else { if (temp->right) nextlevel.push(temp->right); if (temp->left) nextlevel.push(temp->left); } } if (currentlevel.empty()) { lefttoright = !lefttoright; swap(currentlevel, nextlevel); } } } // A utility function to create a new node struct Node* newNode( int data) { struct Node* node = new struct Node; node->data = data; node->left = node->right = NULL; return (node); } // driver program to test the above function int main() { // create tree struct Node* root = newNode(1); root->left = newNode(2); root->right = newNode(3); root->left->left = newNode(7); root->left->right = newNode(6); root->right->left = newNode(5); root->right->right = newNode(4); cout << "ZigZag Order traversal of binary tree is " ; zizagtraversal(root); return 0; } |
JAVA
// Java implementation of a O(n) time // method for Zigzag order traversal import java.util.*; // Binary Tree node class Node { int data; Node leftChild; Node rightChild; Node( int data) { this .data = data; } } class BinaryTree { Node rootNode; // function to print the // zigzag traversal void printZigZagTraversal() { // if null then return if (rootNode == null ) { return ; } // declare two stacks Stack<Node> currentLevel = new Stack<>(); Stack<Node> nextLevel = new Stack<>(); // push the root currentLevel.push(rootNode); boolean leftToRight = true ; // check if stack is empty while (!currentLevel.isEmpty()) { // pop out of stack Node node = currentLevel.pop(); // print the data in it System.out.print(node.data + " " ); // store data according to current // order. if (leftToRight) { if (node.leftChild != null ) { nextLevel.push(node.leftChild); } if (node.rightChild != null ) { nextLevel.push(node.rightChild); } } else { if (node.rightChild != null ) { nextLevel.push(node.rightChild); } if (node.leftChild != null ) { nextLevel.push(node.leftChild); } } if (currentLevel.isEmpty()) { leftToRight = !leftToRight; Stack<Node> temp = currentLevel; currentLevel = nextLevel; nextLevel = temp; } } } } public class zigZagTreeTraversal { // driver program to test the above function public static void main(String[] args) { BinaryTree tree = new BinaryTree(); tree.rootNode = new Node( 1 ); tree.rootNode.leftChild = new Node( 2 ); tree.rootNode.rightChild = new Node( 3 ); tree.rootNode.leftChild.leftChild = new Node( 7 ); tree.rootNode.leftChild.rightChild = new Node( 6 ); tree.rootNode.rightChild.leftChild = new Node( 5 ); tree.rootNode.rightChild.rightChild = new Node( 4 ); System.out.println( "ZigZag Order traversal of binary tree is" ); tree.printZigZagTraversal(); } } // This Code is contributed by Harikrishnan Rajan. |
Python3
# Python Program to print zigzag traversal # of binary tree # Binary tree node class Node: # Constructor to create a new node def __init__( self , data): self .data = data self .left = self .right = None # function to print zigzag traversal of # binary tree def zizagtraversal(root): # Base Case if root is None : return # Create two stacks to store current # and next level currentLevel = [] nextLevel = [] # if ltr is true push nodes from # left to right otherwise from # right to left ltr = True # append root to currentlevel stack currentLevel.append(root) # Check if stack is empty while len (currentLevel) > 0 : # pop from stack temp = currentLevel.pop( - 1 ) # print the data print (temp.data, " " , end = "") if ltr: # if ltr is true push left # before right if temp.left: nextLevel.append(temp.left) if temp.right: nextLevel.append(temp.right) else : # else push right before left if temp.right: nextLevel.append(temp.right) if temp.left: nextLevel.append(temp.left) if len (currentLevel) = = 0 : # reverse ltr to push node in # opposite order ltr = not ltr # swapping of stacks currentLevel, nextLevel = nextLevel, currentLevel # Driver program to check above function root = Node( 1 ) root.left = Node( 2 ) root.right = Node( 3 ) root.left.left = Node( 7 ) root.left.right = Node( 6 ) root.right.left = Node( 5 ) root.right.right = Node( 4 ) print ( "Zigzag Order traversal of binary tree is" ) zizagtraversal(root) # This code is contributed by Shweta Singh |
C#
// C# implementation of a O(n) time // method for Zigzag order traversal using System; using System.Collections.Generic; // Binary Tree node public class Node { public int data; public Node leftChild; public Node rightChild; public Node( int data) { this .data = data; } } class GFG { public Node rootNode; // function to print the // zigzag traversal public virtual void printZigZagTraversal() { // if null then return if (rootNode == null ) { return ; } // declare two stacks Stack<Node> currentLevel = new Stack<Node>(); Stack<Node> nextLevel = new Stack<Node>(); // push the root currentLevel.Push(rootNode); bool leftToRight = true ; // check if stack is empty while (currentLevel.Count > 0) { // pop out of stack Node node = currentLevel.Pop(); // print the data in it Console.Write(node.data + " " ); // store data according to current // order. if (leftToRight) { if (node.leftChild != null ) { nextLevel.Push(node.leftChild); } if (node.rightChild != null ) { nextLevel.Push(node.rightChild); } } else { if (node.rightChild != null ) { nextLevel.Push(node.rightChild); } if (node.leftChild != null ) { nextLevel.Push(node.leftChild); } } if (currentLevel.Count == 0) { leftToRight = !leftToRight; Stack<Node> temp = currentLevel; currentLevel = nextLevel; nextLevel = temp; } } } } public class zigZagTreeTraversal { // Driver Code public static void Main( string [] args) { GFG tree = new GFG(); tree.rootNode = new Node(1); tree.rootNode.leftChild = new Node(2); tree.rootNode.rightChild = new Node(3); tree.rootNode.leftChild.leftChild = new Node(7); tree.rootNode.leftChild.rightChild = new Node(6); tree.rootNode.rightChild.leftChild = new Node(5); tree.rootNode.rightChild.rightChild = new Node(4); Console.WriteLine( "ZigZag Order traversal " + "of binary tree is" ); tree.printZigZagTraversal(); } } // This code is contributed by Shrikant13 |
Javascript
<script> // JavaScript implementation of a O(n) time // method for Zigzag order traversal class Node { constructor(data) { this .leftChild = null ; this .rightChild = null ; this .data = data; } } let rootNode; // function to print the // zigzag traversal function printZigZagTraversal() { // if null then return if (rootNode == null ) { return ; } // declare two stacks let currentLevel = []; let nextLevel = []; // push the root currentLevel.push(rootNode); let leftToRight = true ; // check if stack is empty while (currentLevel.length > 0) { // pop out of stack let node = currentLevel.pop(); // print the data in it document.write(node.data + " " ); // store data according to current // order. if (leftToRight) { if (node.leftChild != null ) { nextLevel.push(node.leftChild); } if (node.rightChild != null ) { nextLevel.push(node.rightChild); } } else { if (node.rightChild != null ) { nextLevel.push(node.rightChild); } if (node.leftChild != null ) { nextLevel.push(node.leftChild); } } if (currentLevel.length == 0) { leftToRight = !leftToRight; let temp = currentLevel; currentLevel = nextLevel; nextLevel = temp; } } } rootNode = new Node(1); rootNode.leftChild = new Node(2); rootNode.rightChild = new Node(3); rootNode.leftChild.leftChild = new Node(7); rootNode.leftChild.rightChild = new Node(6); rootNode.rightChild.leftChild = new Node(5); rootNode.rightChild.rightChild = new Node(4); document.write( "ZigZag Order traversal of binary tree is" + "</br>" ); printZigZagTraversal(); </script> |
输出
ZigZag Order traversal of binary tree is 1 3 2 7 6 5 4
时间复杂性： O（n） 空间复杂性： O（n）+（n）=O（n）
递归方法 :
这里使用的方法是与水平顺序遍历的可观察相似性。在这里，我们需要包含一个额外的参数来跟踪以左右或左右方式打印每个级别。
C++
//Initial Template for C++ #include <bits/stdc++.h> using namespace std; struct Node { int data; Node *left; Node *right; Node( int val) { data = val; left = right = NULL; } }; // Function to Build Tree Node* buildTree(string str) { // Corner Case if (str.length() == 0 || str[0] == 'N' ) return NULL; // Creating vector of strings from input // string after splitting by space vector<string> ip; istringstream iss(str); for (string str; iss >> str; ) ip.push_back(str); // Create the root of the tree Node* root = new Node(stoi(ip[0])); // Push the root to the queue queue<Node*> queue; queue.push(root); // Starting from the second element int i = 1; while (!queue.empty() && i < ip.size()) { // Get and remove the front of the queue Node* currNode = queue.front(); queue.pop(); // Get the current node's value from the string string currVal = ip[i]; // If the left child is not null if (currVal != "N" ) { // Create the left child for the current node currNode->left = new Node(stoi(currVal)); // Push it to the queue queue.push(currNode->left); } // For the right child i++; if (i >= ip.size()) break ; currVal = ip[i]; // If the right child is not null if (currVal != "N" ) { // Create the right child for the current node currNode->right = new Node(stoi(currVal)); // Push it to the queue queue.push(currNode->right); } i++; } return root; } // Function to calculate height of tree int treeHeight(Node *root){ if (!root) return 0; int lHeight = treeHeight(root->left); int rHeight = treeHeight(root->right); return max(lHeight, rHeight) + 1; } // Helper Function to store the zig zag order traversal // of tree in a list recursively void zigZagTraversalRecursion(Node* root, int height, bool lor, vector< int > &ans){ // Height = 1 means the tree now has only one node if (height <= 1){ if (root) ans.push_back(root->data); } // When Height > 1 else { if (lor){ if (root->left) zigZagTraversalRecursion(root->left, height - 1, lor, ans); if (root->right) zigZagTraversalRecursion(root->right, height - 1, lor, ans); } else { if (root->right) zigZagTraversalRecursion(root->right, height - 1, lor, ans); if (root->left) zigZagTraversalRecursion(root->left, height - 1, lor, ans); } } } // Function to traverse tree in zig zag order vector < int > zigZagTraversal(Node* root) { vector< int > ans; bool leftOrRight = true ; int height = treeHeight(root); for ( int i = 1; i <= height; i++){ zigZagTraversalRecursion(root, i, leftOrRight, ans); leftOrRight = !leftOrRight; } return ans; } int main() { // Tree: // 1 // / // / // / // 2 3 // / / // 4 5 6 7 // / / / / //8 9 10 11 12 13 14 15 string s = "1 2 3 4 5 6 7 8 9 10 11 12 13 14 15" ; Node* root = buildTree(s); vector < int > res = zigZagTraversal(root); cout<< "ZigZag traversal of binary tree is:" <<endl; for ( int i = 0; i < res.size (); i++) cout << res[i] << " " ; cout<<endl; return 0; } // Code By Angshuman Sengupta |
输出
ZigZag traversal of binary tree is:1 3 2 4 5 6 7 15 14 13 12 11 10 9 8
输出：
二叉树之字形遍历是：
1 3 2 4 5 6 7 15 14 13 12 11 10 9 8
另一种方法： 在这种方法中，使用deque来解决问题。根据级别是奇数还是偶数，以不同的方式推送和弹出。
以下是上述方法的实施情况：
C++
// C++ implementation of a O(n) time method for // Zigzag order traversal #include <bits/stdc++.h> #include <iostream> using namespace std; // Binary Tree node class Node { public : int data; Node *left, *right; }; // Function to print the zigzag traversal vector< int > zigZagTraversal(Node* root) { deque<Node*> q; vector< int > v; q.push_back(root); v.push_back(root->data); Node* temp; // set initial level as 1, because root is // already been taken care of. int l = 1; while (!q.empty()) { int n = q.size(); for ( int i = 0; i < n; i++) { // popping mechanism if (l % 2 == 0) { temp = q.back(); q.pop_back(); } else { temp = q.front(); q.pop_front(); } // pushing mechanism if (l % 2 != 0) { if (temp->right) { q.push_back(temp->right); v.push_back(temp->right->data); } if (temp->left) { q.push_back(temp->left); v.push_back(temp->left->data); } } else if (l % 2 == 0) { if (temp->left) { q.push_front(temp->left); v.push_back(temp->left->data); } if (temp->right) { q.push_front(temp->right); v.push_back(temp->right->data); } } } l++; // level plus one } return v; } // A utility function to create a new node struct Node* newNode( int data) { struct Node* node = new struct Node; node->data = data; node->left = node->right = NULL; return (node); } // Driver program to test // the above function int main() { // vector to store the traversal order. vector< int > v; // create tree struct Node* root = newNode(1); root->left = newNode(2); root->right = newNode(3); root->left->left = newNode(7); root->left->right = newNode(6); root->right->left = newNode(5); root->right->right = newNode(4); cout << "ZigZag Order traversal of binary tree is " ; v = zigZagTraversal(root); for ( int i = 0; i < v.size(); i++) { // to print the order cout << v[i] << " " ; } return 0; } // This code is contributed by Ritvik Mahajan |
JAVA
// Java implementation of a O(n) time method for // Zigzag order traversal import java.util.*; public class Main { // Class containing left and // right child of current // node and key value static class Node { public int data; public Node left, right; public Node( int data) { this .data = data; left = right = null ; } } // A utility function to create a new node static Node newNode( int data) { Node node = new Node(data); return node; } // Function to print the zigzag traversal static Vector<Integer> zigZagTraversal(Node root) { Deque<Node> q = new LinkedList<Node>(); Vector<Integer> v = new Vector<Integer>(); q.add(root); v.add(root.data); Node temp; // set initial level as 1, because root is // already been taken care of. int l = 1 ; while (q.size() > 0 ) { int n = q.size(); for ( int i = 0 ; i < n; i++) { // popping mechanism if (l % 2 == 0 ) { temp = q.peekLast(); q.pollLast(); } else { temp = q.peekFirst(); q.pollFirst(); } // pushing mechanism if (l % 2 != 0 ) { if (temp.right != null ) { q.add(temp.right); v.add(temp.right.data); } if (temp.left != null ) { q.add(temp.left); v.add(temp.left.data); } } else if (l % 2 == 0 ) { if (temp.left != null ) { q.offerFirst(temp.left); v.add(temp.left.data); } if (temp.right != null ) { q.offerFirst(temp.right); v.add(temp.right.data); } } } l++; // level plus one } return v; } public static void main(String[] args) { // vector to store the traversal order. Vector<Integer> v; // create tree Node root = newNode( 1 ); root.left = newNode( 2 ); root.right = newNode( 3 ); root.left.left = newNode( 7 ); root.left.right = newNode( 6 ); root.right.left = newNode( 5 ); root.right.right = newNode( 4 ); System.out.println( "ZigZag Order traversal of binary tree is" ); v = zigZagTraversal(root); for ( int i = 0 ; i < v.size(); i++) { // to print the order System.out.print(v.get(i) + " " ); } } } // This code is contributed by divyesh072019. |
Python3
# Python3 implementation of a O(n) time method for # Zigzag order traversal from collections import deque # Binary Tree node class Node: def __init__( self , data): self .data = data self .left = None self .right = None # Function to print the zigzag traversal def zigZagTraversal(root): q = deque([]) v = [] q.append(root) v.append(root.data) # set initial level as 1, because root is # already been taken care of. l = 1 while len (q) > 0 : n = len (q) for i in range (n): # popping mechanism if (l % 2 = = 0 ): temp = q[ - 1 ] q.pop() else : temp = q[ 0 ] q.popleft() # pushing mechanism if (l % 2 ! = 0 ): if (temp.right): q.append(temp.right) v.append(temp.right.data) if (temp.left): q.append(temp.left) v.append(temp.left.data) elif (l % 2 = = 0 ): if (temp.left): q.appendleft(temp.left) v.append(temp.left.data) if (temp.right): q.appendleft(temp.right) v.append(temp.right.data) l + = 1 # level plus one return v # vector to store the traversal order. v = [] # create tree root = Node( 1 ) root.left = Node( 2 ) root.right = Node( 3 ) root.left.left = Node( 7 ) root.left.right = Node( 6 ) root.right.left = Node( 5 ) root.right.right = Node( 4 ) print ( "ZigZag Order traversal of binary tree is" ) v = zigZagTraversal(root) for i in range ( len (v)): print (v[i], end = " " ) # This code is contributed by suresh07. |
输出
ZigZag Order traversal of binary tree is 1 3 2 7 6 5 4
时间复杂性： O（N）
辅助空间： O（N）表示数据结构
另一种方法：
我们可以像在水平顺序遍历中一样使用队列。但在这种情况下，我们还可以维护一个标志变量，该变量跟踪备用级别，以反转相应级别的遍历顺序。flag==true意味着我们必须从左到右插入，而flag==false意味着我们必须从右到左插入元素作为答案数组列表。
C++
// C++ implementation of a O(n) time method for // Zigzag order traversal #include <bits/stdc++.h> #include <iostream> using namespace std; // Binary Tree node class Node { public : int data; Node *left, *right; }; // Function to print the zigzag traversal vector< int > zigZagTraversal(Node* root) { if (root == NULL){ return { } ; } vector< int > ans ; queue<Node*> q ; q.push(root) ; bool flag = false ; while (!q.empty()){ int size = q.size() ; vector< int > level ; for ( int i=0 ; i < size ; i++){ Node* node = q.front() ; q.pop() ; level.push_back(node->data) ; if (node->left != NULL) {q.push(node->left) ;} if (node->right != NULL) {q.push(node->right) ;} } flag = !flag ; if (flag == false ){ reverse(level.begin() , level.end()) ; } for ( int i = 0 ; i < level.size() ; i++){ ans.push_back(level[i]) ; } } return ans ; } // A utility function to create a new node struct Node* newNode( int data) { struct Node* node = new struct Node; node->data = data; node->left = node->right = NULL; return (node); } // Driver program to test // the above function int main() { // vector to store the traversal order. vector< int > v; // create tree struct Node* root = newNode(1); root->left = newNode(2); root->right = newNode(3); root->left->left = newNode(7); root->left->right = newNode(6); root->right->left = newNode(5); root->right->right = newNode(4); cout << "ZigZag Order traversal of binary tree is " ; v = zigZagTraversal(root); for ( int i = 0; i < v.size(); i++) { // to print the order cout << v[i] << " " ; } return 0; } |
JAVA
// Java implementation of a O(n) time method for // Zigzag order traversal import java.util.*; public class Main { // Class containing left and // right child of current // node and key value static class Node { public int data; public Node left, right; public Node( int data) { this .data = data; left = right = null ; } } // A utility function to create a new node static Node newNode( int data) { Node node = new Node(data); return node; } // Function to print the zigzag traversal static ArrayList<Integer> zigZagTraversal(Node root) { ArrayList<Integer> ans = new ArrayList<Integer>(); // if there is no element in the tree,return empty // arraylist if (root == null ) return ans; Queue<Node> q = new LinkedList<Node>(); q.add(root); // this variable helps to check if elements are to // be added from left to right or right to left boolean leftToRight = true ; while (q.size() > 0 ) { int size = q.size(); // this arraylist is used to store element at // current level ArrayList<Integer> temp = new ArrayList<>(); for ( int i = 0 ; i < size; i++) { Node curr = q.poll(); if (curr.left != null ) q.add(curr.left); if (curr.right != null ) q.add(curr.right); temp.add(curr.data); } if (leftToRight) // at current level,add element // fom left to right to our // answer { // do nothing } // we have to add element from to right to left // and this can be done by reversing our temp // arraylist else { Collections.reverse(temp); } // add element form temp arraylist to our ans // arraylist for ( int i = 0 ; i < temp.size(); i++) { ans.add(temp.get(i)); } // change the value of leftToRight from true to // false or false to true for next iteration. leftToRight = !(leftToRight); } // return our ans arraylist return ans; } public static void main(String[] args) { // Arraylist to store the traversal order. ArrayList<Integer> ans; // create tree Node root = newNode( 1 ); root.left = newNode( 2 ); root.right = newNode( 3 ); root.left.left = newNode( 7 ); root.left.right = newNode( 6 ); root.right.left = newNode( 5 ); root.right.right = newNode( 4 ); System.out.println( "ZigZag Order traversal of binary tree is" ); ans = zigZagTraversal(root); for ( int i = 0 ; i < ans.size(); i++) { // to print the order System.out.print(ans.get(i) + " " ); } } } // this is contributed by akshita29320 |
输出
ZigZag Order traversal of binary tree is 1 3 2 7 6 5 4
时间复杂性： O（N）
辅助空间 ：O（N）表示队列数据结构
下面是这个问题的一个简单实现。（视频） 螺旋形水平顺序遍历
