穆勒法程序

给定一个浮点数x上的函数f(x)和函数根的三个初始不同猜测,求函数根。这里,f(x)可以是代数函数或超越函数。 例如:

null
Input : A function f(x) = x^3 + 2x^2 + 10x - 20         and three initial guesses - 0, 1 and 2 .Output : The value of the root is 1.3688 or          any other value within permittable deviation          from the root.         Input : A function f(x) = x^5 - 5x + 2         and three initial guesses - 0, 1 and 2 .Output :The value of the root is 0.4021 or         any other value within permittable deviation         from the root.

穆勒法

Muller方法是一种求根算法,用于求f(x)=0形式的方程的根。1956年,大卫·E·穆勒发现了它。 它从根的三个初始假设开始,然后通过这三个点构造一条抛物线,并将x轴与抛物线的交点作为下一个近似值。这个过程一直持续到找到具有所需精度级别的根为止。

为什么要学习穆勒的方法?

Muller法是寻根法的一种,与对分法、Regula-Falsi法、割线法和Newton-Raphson法一样。但是,与这些方法相比,它有以下一些优势——

  1. 在Muller方法中,收敛速度(即每一步向根移动的距离)约为1.84,而割线法为1.62,线性法为1,即Regula–falsi法和对分法均为1。所以 Muller方法比二分法、Regula–Falsi法和割线法更快。
  2. 虽然它比牛顿-拉斐逊法(收敛速度为2)慢,但它克服了牛顿-拉斐逊法的一个最大缺点,即每一步计算导数。

因此,这表明Muller方法是计算函数根的有效方法。

算法及其工作原理

  1. 假设函数的任意三个不同的初始根为x 0 十、 1. 还有x 2. .

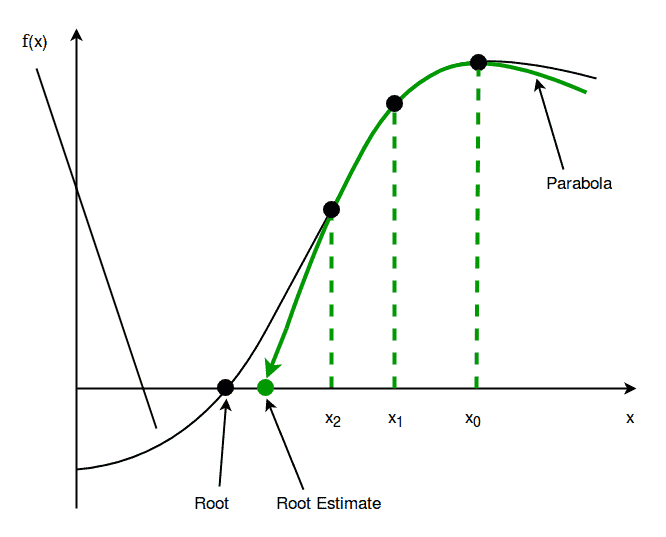

  2. 现在,通过这些点的函数f(x)的值,画一个二次多项式,即抛物线 0 十、 1. 还有x 2. . 通过这些点的抛物线方程p(x)如下- p(x)=c+b(x–x) _2 )+a(x–x) _2 ) ^2 ,其中a、b和c是常数。

图片[7]-穆勒法程序-yiteyi-C++库

  1. 画完这条抛物线,然后找到这条抛物线与x轴的交点,比如x 3. .
  2. 求抛物线与x轴的交点,即x轴 3. :
    • 找到x _3 ,p(x)的根,其中p(x)=c+b(x–x) _2 )+a(x–x) _2 ) ^2 ,使得p(x _3 )=c+b(x) _3 –x _2 )+a(x) _3 –x _2 ) ^2 =0,将二次公式应用于p(x)。因为,有两个根,但我们必须取一个更接近x的根 _2 .为避免因附近相等数字的减法而产生舍入误差,请使用以下公式: x_3 - x_2 = frac{-2c}{bpm sqrt{b^{2}-4ac}} 现在,因为,p(x)的根必须更接近x _2 ,所以我们必须从上述方程中的两个值中取分母更大的值。
    • 要找到上述方程的a、b和c,将x作为x放入p(x)中 _0 十、 _1 还有x _2 ,设这些值为p(x _0 ),p(x) _1 )和p(x) _2 ),具体如下:- p(x) _0 )=c+b(x) _0 –x _2 )+a(x) _0 –x _2 ) ^2 =f(x) _0 ). p(x) _1 )=c+b(x) _1 –x _2 )+a(x) _1 –x _2 ) ^2 =f(x) _1 ). p(x) _2 )=c+b(x) _2 –x _2 )+a(x) _2 –x _2 ) ^2 =c=f(x) _2 ).
    • 所以,我们有三个方程和三个变量——a,b,c。通过求解它们,找出这些变量的值,我们得到以下a,b和c的值-
c = p(x_2) = f(x_2) .b = (d_2*(h_1)^2 - d_1*(h_2)^2 ) / ( h_1h_2 * (h_1 - h_2)) .a = (d_1*(h_2) - d_2*(h_1)) / ( h_1h_2 * (h_1 - h_2)).
  • 哪里 D _1 =p(x) _0 )–p(x) _2 )=f(x) _0 )-f(x) _2 ) D _2 =p(x) _1 )–p(x) _2 )=f(x) _1 )-f(x) _2 ) H _1 =x _0 –x _2 H _2 =x _1 –x _2
  • 现在,把这些值放到x的表达式中 _3 –x _2 ,并获得x _3 . 这就是p(x)=x的根 _3 已获得。
  1. 如果x _3 非常接近x _2 在允许误差范围内,然后x _3 成为f(x)的根,否则,继续重复查找下一个x的过程 _3 ,与之前的x _1 十、 _2 还有x _3 作为新的x _0 十、 _1 还有x _2 .

C++

// C++ Program to find root of a function, f(x)
#include<bits/stdc++.h>
using namespace std;
const int MAX_ITERATIONS = 10000;
// Function to calculate f(x)
float f( float x)
{
// Taking f(x) = x ^ 3 + 2x ^ 2 + 10x - 20
return 1* pow (x, 3) + 2*x*x + 10*x - 20;
}
void Muller( float a, float b, float c)
{
int i;
float res;
for (i = 0;;++i)
{
// Calculating various constants required
// to calculate x3
float f1 = f(a);
float f2 = f(b);
float f3 = f(c);
float d1 = f1 - f3;
float d2 = f2 - f3;
float h1 = a - c;
float h2 = b - c;
float a0 = f3;
float a1 = (((d2* pow (h1, 2)) - (d1* pow (h2, 2)))
/ ((h1*h2) * (h1-h2)));
float a2 = (((d1*h2) - (d2*h1))/((h1*h2) * (h1-h2)));
float x = ((-2*a0) / (a1 + abs ( sqrt (a1*a1-4*a0*a2))));
float y = ((-2*a0) / (a1- abs ( sqrt (a1*a1-4*a0*a2))));
// Taking the root which is closer to x2
if (x >= y)
res = x + c;
else
res = y + c;
// checking for resemblance of x3 with x2 till
// two decimal places
float m = res*100;
float n = c*100;
m = floor (m);
n = floor (n);
if (m == n)
break ;
a = b;
b = c;
c = res;
if (i > MAX_ITERATIONS)
{
cout << "Root cannot be found using"
<< " Muller's method" ;
break ;
}
}
if (i <= MAX_ITERATIONS)
cout << "The value of the root is " << res;
}
// Driver main function
int main()
{
float a = 0, b = 1, c = 2;
Muller(a, b, c);
return 0;
}


JAVA

// Java Program to find root of a function, f(x)
import java.io.*;
import static java.lang.Math.*;
class Muller
{
static final int MAX_ITERATIONS = 10000 ;
// function to calculate f(x)
static double f( double x)
{
// Taking f(x) = x ^ 3 + 2x ^ 2 + 10x - 20
return 1 *pow(x, 3 ) + 2 *x*x + 10 *x - 20 ;
}
static void Muller( double a, double b, double c)
{
int i;
double res;
for (i = 0 ;; ++i)
{
// Calculating various constants required
// to calculate x3
double f1 = f(a);
double f2 = f(b);
double f3 = f(c);
double d1 = f1 - f3;
double d2 = f2 - f3;
double h1 = a - c;
double h2 = b - c;
double a0 = f3;
double a1 = (((d2*pow(h1, 2 )) - (d1*pow(h2, 2 )))
/ ((h1*h2) * (h1-h2)));
double a2 = (((d1*h2) - (d2*h1))/((h1*h2) * (h1-h2)));
double x = ((- 2 *a0)/(a1 + abs(sqrt(a1*a1- 4 *a0*a2))));
double y = ((- 2 *a0)/(a1-abs(sqrt(a1*a1- 4 *a0*a2))));
// Taking the root which is closer to x2
if (x >= y)
res = x + c;
else
res = y + c;
// checking for resemblance of x3 with x2 till
// two decimal places
double m = res* 100 ;
double n = c* 100 ;
m = floor(m);
n = floor(n);
if (m == n)
break ;
a = b;
b = c;
c = res;
if (i > MAX_ITERATIONS)
{
System.out.println( "Root cannot be found using" +
" Muller's method" );
break ;
}
}
if (i <= MAX_ITERATIONS)
System.out.println( "The value of the root is " + res);
}
// Driver main function
public static void main(String args[])
{
double a = 0 , b = 1 , c = 2 ;
Muller(a, b, c);
}
}


Python3

# Python3 Program to find root of
# a function, f(x)
import math;
MAX_ITERATIONS = 10000 ;
# Function to calculate f(x)
def f(x):
# Taking f(x) = x ^ 3 + 2x ^ 2 + 10x - 20
return ( 1 * pow (x, 3 ) + 2 * x * x +
10 * x - 20 );
def Muller(a, b, c):
res = 0 ;
i = 0 ;
while ( True ):
# Calculating various constants
# required to calculate x3
f1 = f(a); f2 = f(b); f3 = f(c);
d1 = f1 - f3;
d2 = f2 - f3;
h1 = a - c;
h2 = b - c;
a0 = f3;
a1 = (((d2 * pow (h1, 2 )) -
(d1 * pow (h2, 2 ))) /
((h1 * h2) * (h1 - h2)));
a2 = (((d1 * h2) - (d2 * h1)) /
((h1 * h2) * (h1 - h2)));
x = (( - 2 * a0) / (a1 +
abs (math.sqrt(a1 * a1 - 4 * a0 * a2))));
y = (( - 2 * a0) / (a1 -
abs (math.sqrt(a1 * a1 - 4 * a0 * a2))));
# Taking the root which is
# closer to x2
if (x > = y):
res = x + c;
else :
res = y + c;
# checking for resemblance of x3
# with x2 till two decimal places
m = res * 100 ;
n = c * 100 ;
m = math.floor(m);
n = math.floor(n);
if (m = = n):
break ;
a = b;
b = c;
c = res;
if (i > MAX_ITERATIONS):
print ( "Root cannot be found using" ,
"Muller's method" );
break ;
i + = 1 ;
if (i < = MAX_ITERATIONS):
print ( "The value of the root is" ,
round (res, 4 ));
# Driver Code
a = 0 ;
b = 1 ;
c = 2 ;
Muller(a, b, c);
# This code is contributed by mits


C#

// C# Program to find root of a function, f(x)
using System;
class Muller1
{
static int MAX_ITERATIONS = 10000;
// function to calculate f(x)
static double f( double x)
{
// Taking f(x) = x ^ 3 + 2x ^ 2 + 10x - 20
return 1*Math.Pow(x, 3) + 2*x*x + 10*x - 20;
}
static void Muller( double a, double b, double c)
{
int i;
double res;
for (i = 0;; ++i)
{
// Calculating various constants required
// to calculate x3
double f1 = f(a);
double f2 = f(b);
double f3 = f(c);
double d1 = f1 - f3;
double d2 = f2 - f3;
double h1 = a - c;
double h2 = b - c;
double a0 = f3;
double a1 = (((d2*Math.Pow(h1, 2)) - (d1*Math.Pow(h2, 2)))
/ ((h1*h2) * (h1-h2)));
double a2 = (((d1*h2) - (d2*h1))/((h1*h2) * (h1-h2)));
double x = ((-2*a0)/(a1 + Math.Abs(Math.Sqrt(a1*a1-4*a0*a2))));
double y = ((-2*a0)/(a1-Math.Abs(Math.Sqrt(a1*a1-4*a0*a2))));
// Taking the root which is closer to x2
if (x >= y)
res = x + c;
else
res = y + c;
// checking for resemblance of x3 with x2 till
// two decimal places
double m = res*100;
double n = c*100;
m = Math.Floor(m);
n = Math.Floor(n);
if (m == n)
break ;
a = b;
b = c;
c = res;
if (i > MAX_ITERATIONS)
{
Console.WriteLine( "Root cannot be found using" +
" Muller's method" );
break ;
}
}
if (i <= MAX_ITERATIONS)
Console.WriteLine( "The value of the root is " + Math.Round(res,4));
}
// Driver main function
static void Main()
{
double a = 0, b = 1, c = 2;
Muller(a, b, c);
}
}
// this code is contributed by mits


PHP

<?php
// PHP Program to find root of a function, f(x)
$MAX_ITERATIONS = 10000;
// Function to calculate f(x)
function f( $x )
{
// Taking f(x) = x ^ 3 + 2x ^ 2 + 10x - 20
return 1*pow( $x , 3) + 2* $x * $x + 10* $x - 20;
}
function Muller( $a , $b , $c )
{
global $MAX_ITERATIONS ;
$res =0;
for ( $i = 0;;++ $i )
{
// Calculating various constants required
// to calculate x3
$f1 = f( $a );
$f2 = f( $b );
$f3 = f( $c );
$d1 = $f1 - $f3 ;
$d2 = $f2 - $f3 ;
$h1 = $a - $c ;
$h2 = $b - $c ;
$a0 = $f3 ;
$a1 = ((( $d2 *pow( $h1 , 2)) - ( $d1 *pow( $h2 , 2)))
/ (( $h1 * $h2 ) * ( $h1 - $h2 )));
$a2 = ((( $d1 * $h2 ) - ( $d2 * $h1 ))/(( $h1 * $h2 ) * ( $h1 - $h2 )));
$x = ((-2* $a0 ) / ( $a1 + abs (sqrt( $a1 * $a1 -4* $a0 * $a2 ))));
$y = ((-2* $a0 ) / ( $a1 - abs (sqrt( $a1 * $a1 -4* $a0 * $a2 ))));
// Taking the root which is closer to x2
if ( $x >= $y )
$res = $x + $c ;
else
$res = $y + $c ;
// checking for resemblance of x3 with x2 till
// two decimal places
$m = $res *100;
$n = $c *100;
$m = floor ( $m );
$n = floor ( $n );
if ( $m == $n )
break ;
$a = $b ;
$b = $c ;
$c = $res ;
if ( $i > $MAX_ITERATIONS )
{
echo "Root cannot be found using Muller's method" ;
break ;
}
}
if ( $i <= $MAX_ITERATIONS )
echo "The value of the root is " . round ( $res ,4);
}
// Driver main function
$a = 0;
$b = 1;
$c = 2;
Muller( $a , $b , $c );
// This code is contributed by mits
?>


Javascript

<script>
// JavaScript Program to find root of a function, f(x)
const MAX_ITERATIONS = 10000;
// Function to calculate f(x)
function f(x)
{
// Taking f(x) = x ^ 3 + 2x ^ 2 + 10x - 20
return 1*Math.pow(x, 3) + 2*x*x + 10*x - 20;
}
function Muller(a, b, c)
{
let i;
let res;
for (i = 0;;++i)
{
// Calculating various constants required
// to calculate x3
let f1 = f(a);
let f2 = f(b);
let f3 = f(c);
let d1 = f1 - f3;
let d2 = f2 - f3;
let h1 = a - c;
let h2 = b - c;
let a0 = f3;
let a1 = (((d2*Math.pow(h1, 2)) - (d1*Math.pow(h2, 2)))
/ ((h1*h2) * (h1-h2)));
let a2 = (((d1*h2) - (d2*h1))/((h1*h2) * (h1-h2)));
let x = ((-2*a0) / (a1 + Math.abs(Math.sqrt(a1*a1-4*a0*a2))));
let y = ((-2*a0) / (a1-Math.abs(Math.sqrt(a1*a1-4*a0*a2))));
// Taking the root which is closer to x2
if (x >= y)
res = x + c;
else
res = y + c;
// checking for resemblance of x3 with x2 till
// two decimal places
let m = res*100;
let n = c*100;
m = Math.floor(m);
n = Math.floor(n);
if (m == n)
break ;
a = b;
b = c;
c = res;
if (i > MAX_ITERATIONS)
{
document.write( "Root cannot be found using"
+ " Muller's method" );
break ;
}
}
if (i <= MAX_ITERATIONS)
document.write( "The value of the root is " + res.toFixed(4));
}
// Driver main function
let a = 0, b = 1, c = 2;
Muller(a, b, c);
// This code is contributed by Surbhi Tyagi.
</script>


输出:

The value of the root is 1.3688

优势

  • 可以找到假想的根。
  • 不需要寻找衍生品。

缺点

  • 长时间手工操作,更容易出错。
  • 可以找到外来的根。

参考文献-

  1. B.S.格雷瓦尔的《高等工程数学》。

本文由 辛格先生 .如果你喜欢GeekSforgek,并想贡献自己的力量,你也可以使用 贡献极客。组织 或者把你的文章寄到contribute@geeksforgeeks.org.看到你的文章出现在Geeksforgeks主页上,并帮助其他极客。 如果您发现任何不正确的地方,或者您想分享有关上述主题的更多信息,请写下评论。
