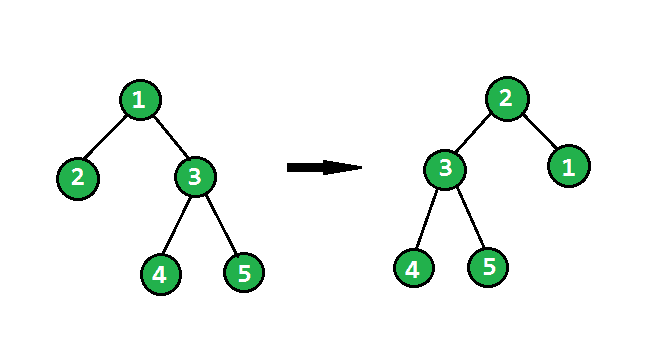

给定一棵二叉树，任务是将二叉树朝着顺时针方向翻转。请参见以下示例以查看转换。 在翻转操作中，最左边的节点成为翻转树的根，其父节点成为其右子节点，右同级节点成为其左子节点，所有最左边的节点都应递归地执行相同操作。
null
下面是子树的主要旋转代码
root->left->left = root->right; root->left->right = root; root->left = NULL; root->right = NULL;

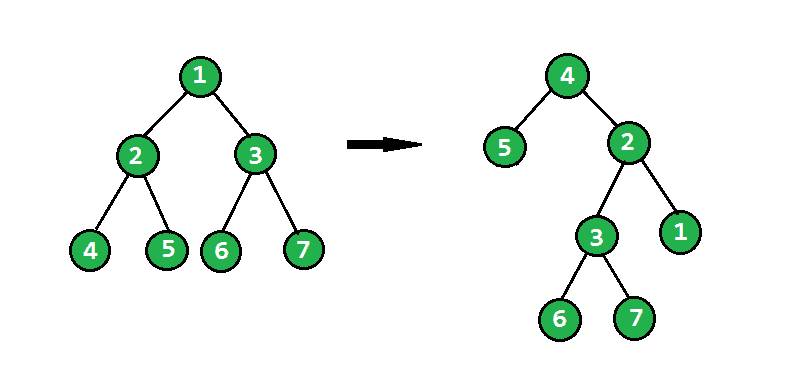

通过下图可以理解上述代码——
当我们在翻转的根中存储root->left时，翻转的子树将存储在每个递归调用中。
C++
/* C/C++ program to flip a binary tree */ #include <bits/stdc++.h> using namespace std; /* A binary tree node structure */ struct Node { int data; Node *left, *right; }; /* Utility function to create a new Binary Tree Node */ struct Node* newNode( int data) { struct Node *temp = new struct Node; temp->data = data; temp->left = temp->right = NULL; return temp; } // method to flip the binary tree Node* flipBinaryTree(Node* root) { // Base cases if (root == NULL) return root; if (root->left == NULL && root->right == NULL) return root; // recursively call the same method Node* flippedRoot = flipBinaryTree(root->left); // rearranging main root Node after returning // from recursive call root->left->left = root->right; root->left->right = root; root->left = root->right = NULL; return flippedRoot; } // Iterative method to do level order traversal // line by line void printLevelOrder(Node *root) { // Base Case if (root == NULL) return ; // Create an empty queue for level order traversal queue<Node *> q; // Enqueue Root and initialize height q.push(root); while (1) { // nodeCount (queue size) indicates number // of nodes at current level. int nodeCount = q.size(); if (nodeCount == 0) break ; // Dequeue all nodes of current level and // Enqueue all nodes of next level while (nodeCount > 0) { Node *node = q.front(); cout << node->data << " " ; q.pop(); if (node->left != NULL) q.push(node->left); if (node->right != NULL) q.push(node->right); nodeCount--; } cout << endl; } } // Driver code int main() { Node* root = newNode(1); root->left = newNode(2); root->right = newNode(3); root->right->left = newNode(4); root->right->right = newNode(5); cout << "Level order traversal of given tree" ; printLevelOrder(root); root = flipBinaryTree(root); cout << "Level order traversal of the flipped" " tree" ; printLevelOrder(root); return 0; } |
JAVA
/* Java program to flip a binary tree */ import java.util.Queue; import java.util.LinkedList; public class FlipTree { // method to flip the binary tree public static Node flipBinaryTree(Node root) { if (root == null ) return root; if (root.left == null && root.right == null ) return root; // recursively call the same method Node flippedRoot=flipBinaryTree(root.left); // rearranging main root Node after returning // from recursive call root.left.left=root.right; root.left.right=root; root.left=root.right= null ; return flippedRoot; } // Iterative method to do level order traversal // line by line public static void printLevelOrder(Node root) { // Base Case if (root== null ) return ; // Create an empty queue for level order traversal Queue<Node> q= new LinkedList<>(); // Enqueue Root and initialize height q.add(root); while ( true ) { // nodeCount (queue size) indicates number // of nodes at current level. int nodeCount = q.size(); if (nodeCount == 0 ) break ; // Dequeue all nodes of current level and // Enqueue all nodes of next level while (nodeCount > 0 ) { Node node = q.remove(); System.out.print(node.data+ " " ); if (node.left != null ) q.add(node.left); if (node.right != null ) q.add(node.right); nodeCount--; } System.out.println(); } } public static void main(String args[]) { Node root= new Node( 1 ); root.left= new Node( 2 ); root.right= new Node( 1 ); root.right.left = new Node( 4 ); root.right.right = new Node( 5 ); System.out.println( "Level order traversal of given tree" ); printLevelOrder(root); root = flipBinaryTree(root); System.out.println( "Level order traversal of flipped tree" ); printLevelOrder(root); } } /* A binary tree node structure */ class Node { int data; Node left, right; Node( int data) { this .data=data; } }; //This code is contributed by Gaurav Tiwari |
Python3
# Python3 program to flip # a binary tree # A binary tree node class Node: # Constructor to create # a new node def __init__( self , data): self .data = data self .right = None self .left = None def flipBinaryTree(root): # Base Cases if root is None : return root if (root.left is None and root.right is None ): return root # Recursively call the # same method flippedRoot = flipBinaryTree(root.left) # Rearranging main root Node # after returning from # recursive call root.left.left = root.right root.left.right = root root.left = root.right = None return flippedRoot # Iterative method to do the level # order traversal line by line def printLevelOrder(root): # Base Case if root is None : return # Create an empty queue for # level order traversal from Queue import Queue q = Queue() # Enqueue root and initialize # height q.put(root) while ( True ): # nodeCount (queue size) indicates # number of nodes at current level nodeCount = q.qsize() if nodeCount = = 0 : break # Dequeue all nodes of current # level and Enqueue all nodes # of next level while nodeCount > 0 : node = q.get() print node.data, if node.left is not None : q.put(node.left) if node.right is not None : q.put(node.right) nodeCount - = 1 print # Driver code root = Node( 1 ) root.left = Node( 2 ) root.right = Node( 3 ) root.right.left = Node( 4 ) root.right.right = Node( 5 ) print "Level order traversal of given tree" printLevelOrder(root) root = flipBinaryTree(root) print "Level order traversal of the flipped tree" printLevelOrder(root) # This code is contributed by Nikhil Kumar Singh(nickzuck_007) |
C#
// C# program to flip a binary tree using System; using System.Collections.Generic; public class FlipTree { // method to flip the binary tree public static Node flipBinaryTree(Node root) { if (root == null ) return root; if (root.left == null && root.right == null ) return root; // recursively call the same method Node flippedRoot = flipBinaryTree(root.left); // rearranging main root Node after returning // from recursive call root.left.left = root.right; root.left.right = root; root.left = root.right = null ; return flippedRoot; } // Iterative method to do level order traversal // line by line public static void printLevelOrder(Node root) { // Base Case if (root == null ) return ; // Create an empty queue for level order traversal Queue<Node> q = new Queue<Node>(); // Enqueue Root and initialize height q.Enqueue(root); while ( true ) { // nodeCount (queue size) indicates number // of nodes at current level. int nodeCount = q.Count; if (nodeCount == 0) break ; // Dequeue all nodes of current level and // Enqueue all nodes of next level while (nodeCount > 0) { Node node = q.Dequeue(); Console.Write(node.data+ " " ); if (node.left != null ) q.Enqueue(node.left); if (node.right != null ) q.Enqueue(node.right); nodeCount--; } Console.WriteLine(); } } // Driver code public static void Main(String []args) { Node root = new Node(1); root.left = new Node(2); root.right = new Node(1); root.right.left = new Node(4); root.right.right = new Node(5); Console.WriteLine( "Level order traversal of given tree" ); printLevelOrder(root); root = flipBinaryTree(root); Console.WriteLine( "Level order traversal of flipped tree" ); printLevelOrder(root); } } /* A binary tree node structure */ public class Node { public int data; public Node left, right; public Node( int data) { this .data = data; } }; // This code is contributed by Princi Singh |
Javascript
<script> /* Javascript program to flip a binary tree */ /* A binary tree node structure */ class Node { constructor( data) { this .data = data; this .left= this .right= null ; } }; // method to flip the binary tree function flipBinaryTree(root) { if (root == null ) return root; if (root.left == null && root.right == null ) return root; // recursively call the same method let flippedRoot=flipBinaryTree(root.left); // rearranging main root Node after returning // from recursive call root.left.left=root.right; root.left.right=root; root.left=root.right= null ; return flippedRoot; } // Iterative method to do level order traversal // line by line function printLevelOrder(root) { // Base Case if (root== null ) return ; // Create an empty queue for level order traversal let q=[]; // Enqueue Root and initialize height q.push(root); while ( true ) { // nodeCount (queue size) indicates number // of nodes at current level. let nodeCount = q.length; if (nodeCount == 0) break ; // Dequeue all nodes of current level and // Enqueue all nodes of next level while (nodeCount > 0) { let node = q.shift(); document.write(node.data+ " " ); if (node.left != null ) q.push(node.left); if (node.right != null ) q.push(node.right); nodeCount--; } document.write( "<br>" ); } } let root= new Node(1); root.left= new Node(2); root.right= new Node(3); root.right.left = new Node(4); root.right.right = new Node(5); document.write( "Level order traversal of given tree<br>" ); printLevelOrder(root); root = flipBinaryTree(root); document.write( "Level order traversal of flipped tree<br>" ); printLevelOrder(root); // This code is contributed by unknown2108 </script> |
输出：
Level order traversal of given tree1 2 3 4 5 Level order traversal of the flipped tree2 3 1 4 5
迭代法 这种方法是由 帕尔13 . 迭代解遵循与递归解相同的方法，我们唯一需要注意的是保存将被覆盖的节点信息。
C++
// C/C++ program to flip a binary tree #include <bits/stdc++.h> using namespace std; // A binary tree node structure struct Node { int data; Node *left, *right; }; // Utility function to create a new Binary // Tree Node struct Node* newNode( int data) { struct Node *temp = new struct Node; temp->data = data; temp->left = temp->right = NULL; return temp; } // method to flip the binary tree Node* flipBinaryTree(Node* root) { // Initialization of pointers Node *curr = root; Node *next = NULL; Node *temp = NULL; Node *prev = NULL; // Iterate through all left nodes while (curr) { next = curr->left; // Swapping nodes now, need temp to keep the previous right child // Making prev's right as curr's left child curr->left = temp; // Storing curr's right child temp = curr->right; // Making prev as curr's right child curr->right = prev; prev = curr; curr = next; } return prev; } // Iterative method to do level order traversal // line by line void printLevelOrder(Node *root) { // Base Case if (root == NULL) return ; // Create an empty queue for level order traversal queue<Node *> q; // Enqueue Root and initialize height q.push(root); while (1) { // nodeCount (queue size) indicates number // of nodes at current level. int nodeCount = q.size(); if (nodeCount == 0) break ; // Dequeue all nodes of current level and // Enqueue all nodes of next level while (nodeCount > 0) { Node *node = q.front(); cout << node->data << " " ; q.pop(); if (node->left != NULL) q.push(node->left); if (node->right != NULL) q.push(node->right); nodeCount--; } cout << endl; } } // Driver code int main() { Node* root = newNode(1); root->left = newNode(2); root->right = newNode(3); root->right->left = newNode(4); root->right->right = newNode(5); cout << "Level order traversal of given tree" ; printLevelOrder(root); root = flipBinaryTree(root); cout << "Level order traversal of the flipped" " tree" ; printLevelOrder(root); return 0; } // This article is contributed by Pal13 |
JAVA
// Java program to flip a binary tree import java.util.*; class GFG { // A binary tree node static class Node { int data; Node left, right; }; // Utility function to create // a new Binary Tree Node static Node newNode( int data) { Node temp = new Node(); temp.data = data; temp.left = temp.right = null ; return temp; } // method to flip the binary tree static Node flipBinaryTree(Node root) { // Initialization of pointers Node curr = root; Node next = null ; Node temp = null ; Node prev = null ; // Iterate through all left nodes while (curr != null ) { next = curr.left; // Swapping nodes now, need // temp to keep the previous // right child // Making prev's right // as curr's left child curr.left = temp; // Storing curr's right child temp = curr.right; // Making prev as curr's // right child curr.right = prev; prev = curr; curr = next; } return prev; } // Iterative method to do // level order traversal // line by line static void printLevelOrder(Node root) { // Base Case if (root == null ) return ; // Create an empty queue for // level order traversal Queue<Node> q = new LinkedList<Node>(); // Enqueue Root and // initialize height q.add(root); while ( true ) { // nodeCount (queue size) // indicates number of nodes // at current level. int nodeCount = q.size(); if (nodeCount == 0 ) break ; // Dequeue all nodes of current // level and Enqueue all nodes // of next level while (nodeCount > 0 ) { Node node = q.peek(); System.out.print(node.data + " " ); q.remove(); if (node.left != null ) q.add(node.left); if (node.right != null ) q.add(node.right); nodeCount--; } System.out.println(); } } // Driver code public static void main(String args[]) { Node root = newNode( 1 ); root.left = newNode( 2 ); root.right = newNode( 3 ); root.right.left = newNode( 4 ); root.right.right = newNode( 5 ); System.out.print( "Level order traversal " + "of given tree" ); printLevelOrder(root); root = flipBinaryTree(root); System.out.print( "Level order traversal " + "of the flipped tree" ); printLevelOrder(root); } } // This code is contributed // by Arnab Kundu |
Python3
# Python3 program to flip # a binary tree from collections import deque # A binary tree node structure class Node: def __init__( self , key): self .data = key self .left = None self .right = None # method to flip the # binary tree def flipBinaryTree(root): # Initialization of # pointers curr = root next = None temp = None prev = None # Iterate through all # left nodes while (curr): next = curr.left # Swapping nodes now, need temp # to keep the previous right child # Making prev's right as curr's # left child curr.left = temp # Storing curr's right child temp = curr.right # Making prev as curr's right # child curr.right = prev prev = curr curr = next return prev # Iterative method to do level # order traversal line by line def printLevelOrder(root): # Base Case if (root = = None ): return # Create an empty queue for # level order traversal q = deque() # Enqueue Root and initialize # height q.append(root) while ( 1 ): # nodeCount (queue size) indicates # number of nodes at current level. nodeCount = len (q) if (nodeCount = = 0 ): break # Dequeue all nodes of current # level and Enqueue all nodes # of next level while (nodeCount > 0 ): node = q.popleft() print (node.data, end = " " ) if (node.left ! = None ): q.append(node.left) if (node.right ! = None ): q.append(node.right) nodeCount - = 1 print () # Driver code if __name__ = = '__main__' : root = Node( 1 ) root.left = Node( 2 ) root.right = Node( 3 ) root.right.left = Node( 4 ) root.right.right = Node( 5 ) print ( "Level order traversal of given tree" ) printLevelOrder(root) root = flipBinaryTree(root) print ( "Level order traversal of the flipped" " tree" ) printLevelOrder(root) # This code is contributed by Mohit Kumar 29 |
C#
// C# program to flip a binary tree using System; using System.Collections.Generic; class GFG { // A binary tree node public class Node { public int data; public Node left, right; } // Utility function to create // a new Binary Tree Node public static Node newNode( int data) { Node temp = new Node(); temp.data = data; temp.left = temp.right = null ; return temp; } // method to flip the binary tree public static Node flipBinaryTree(Node root) { // Initialization of pointers Node curr = root; Node next = null ; Node temp = null ; Node prev = null ; // Iterate through all left nodes while (curr != null ) { next = curr.left; // Swapping nodes now, need // temp to keep the previous // right child // Making prev's right // as curr's left child curr.left = temp; // Storing curr's right child temp = curr.right; // Making prev as curr's // right child curr.right = prev; prev = curr; curr = next; } return prev; } // Iterative method to do level // order traversal line by line public static void printLevelOrder(Node root) { // Base Case if (root == null ) { return ; } // Create an empty queue for // level order traversal LinkedList<Node> q = new LinkedList<Node>(); // Enqueue Root and // initialize height q.AddLast(root); while ( true ) { // nodeCount (queue size) // indicates number of nodes // at current level. int nodeCount = q.Count; if (nodeCount == 0) { break ; } // Dequeue all nodes of current // level and Enqueue all nodes // of next level while (nodeCount > 0) { Node node = q.First.Value; Console.Write(node.data + " " ); q.RemoveFirst(); if (node.left != null ) { q.AddLast(node.left); } if (node.right != null ) { q.AddLast(node.right); } nodeCount--; } Console.WriteLine(); } } // Driver code public static void Main( string [] args) { Node root = newNode(1); root.left = newNode(2); root.right = newNode(3); root.right.left = newNode(4); root.right.right = newNode(5); Console.Write( "Level order traversal " + "of given tree" ); printLevelOrder(root); root = flipBinaryTree(root); Console.Write( "Level order traversal " + "of the flipped tree" ); printLevelOrder(root); } } // This code is contributed by Shrikant13 |
Javascript
<script> // JavaScript program to flip a binary tree class Node { constructor(data) { this .left = null ; this .right = null ; this .data = data; } } // Utility function to create // a new Binary Tree Node function newNode(data) { let temp = new Node(data); return temp; } // method to flip the binary tree function flipBinaryTree(root) { // Initialization of pointers let curr = root; let next = null ; let temp = null ; let prev = null ; // Iterate through all left nodes while (curr != null ) { next = curr.left; // Swapping nodes now, need // temp to keep the previous // right child // Making prev's right // as curr's left child curr.left = temp; // Storing curr's right child temp = curr.right; // Making prev as curr's // right child curr.right = prev; prev = curr; curr = next; } return prev; } // Iterative method to do // level order traversal // line by line function printLevelOrder(root) { // Base Case if (root == null ) return ; // Create an empty queue for // level order traversal let q = []; // Enqueue Root and // initialize height q.push(root); while ( true ) { // nodeCount (queue size) // indicates number of nodes // at current level. let nodeCount = q.length; if (nodeCount == 0) break ; // Dequeue all nodes of current // level and Enqueue all nodes // of next level while (nodeCount > 0) { let node = q[0]; document.write(node.data + " " ); q.shift(); if (node.left != null ) q.push(node.left); if (node.right != null ) q.push(node.right); nodeCount--; } document.write( "</br>" ); } } let root = newNode(1); root.left = newNode(2); root.right = newNode(3); root.right.left = newNode(4); root.right.right = newNode(5); document.write( "Level order traversal " + "of given tree" + "</br>" ); printLevelOrder(root); root = flipBinaryTree(root); document.write( "</br>" + "Level order traversal " + "of the flipped tree" + "</br>" ); printLevelOrder(root); </script> |
输出：
Level order traversal of given tree1 2 3 4 5 Level order traversal of the flipped tree2 3 1 4 5
复杂性分析： 时间复杂性： O（n）在最坏的情况下，二叉树的深度为n。 辅助空间： O（1）。
本文由 乌特卡什·特里维迪 .如果你喜欢GeekSforgek，并想贡献自己的力量，你也可以使用 写极客。组织 或者把你的文章寄去评论-team@geeksforgeeks.org.看到你的文章出现在Geeksforgeks主页上，并帮助其他极客。 如果您发现任何不正确的地方，或者您想分享有关上述主题的更多信息，请写下评论。
