先决条件： Python |使用openpyxl模块| Set–1在excel表格中绘制图表
null
Openpyxl 是一个Python库，使用它可以对excel文件执行多种操作，如读取、写入、算术操作和绘制图形。
图表由至少一系列的一个或多个数据点组成。系列本身由单元格范围的引用组成。让我们看看如何使用openpyxl在excel工作表上绘制散点图、气泡图、饼图、三维饼图。
为了在excel表格上绘制图表，首先，创建特定图表类的图表对象（即散点图、PieChart等）。创建图表对象后，在其中插入数据，最后将该图表对象添加到图纸对象中。让我们看看如何使用实时数据绘制不同的图表。

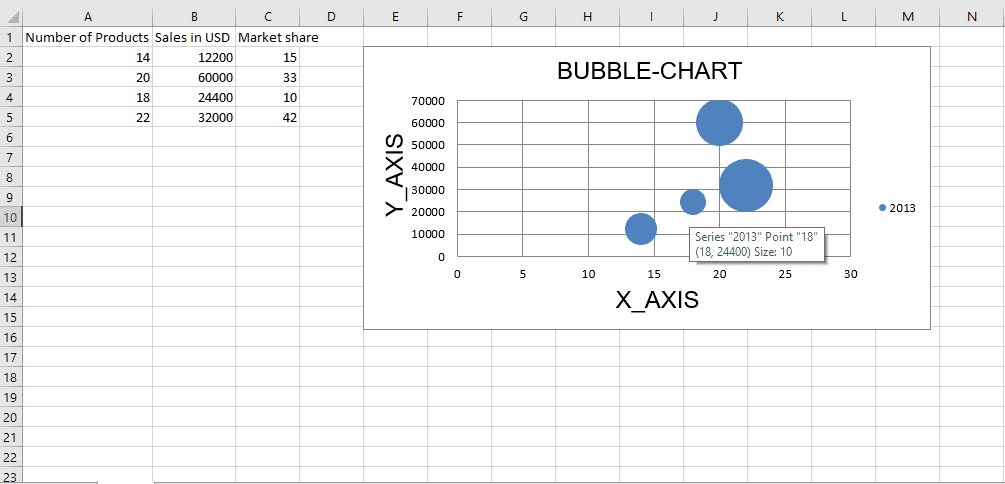

代码#1： 绘制气泡图。
气泡图类似于散点图，但使用三维来确定气泡的大小。图表可以包括多个系列。
要在excel工作表上绘制气泡图，请使用 BubbleChart class 来自openpyxl。图表子模块。
# import openpyxl module import openpyxl # import BubbleChart, Reference, Series class # from openpyxl.chart sub_module from openpyxl.chart import BubbleChart, Reference, Series # Call a Workbook() function of openpyxl # to create a new blank Workbook object wb = openpyxl.Workbook() # Get workbook active sheet # from the active attribute. sheet = wb.active rows = [ ( "Number of Products" , "Sales in USD" , "Market share" ), ( 14 , 12200 , 15 ), ( 20 , 60000 , 33 ), ( 18 , 24400 , 10 ), ( 22 , 32000 , 42 ), ] # write content of each row in 1st, 2nd and 3rd # column of the active sheet respectively. for row in rows: sheet.append(row) # Create object of BubbleChart class chart = BubbleChart() # create data for plotting xvalues = Reference(sheet, min_col = 1 , min_row = 2 , max_row = 5 ) yvalues = Reference(sheet, min_col = 2 , min_row = 2 , max_row = 5 ) size = Reference(sheet, min_col = 3 , min_row = 2 , max_row = 5 ) # create a 1st series of data series = Series(values = yvalues, xvalues = xvalues, zvalues = size, title = "2013" ) # add series data to the chart object chart.series.append(series) # set the title of the chart chart.title = " BUBBLE-CHART " # set the title of the x-axis chart.x_axis.title = " X_AXIS " # set the title of the y-axis chart.y_axis.title = " Y_AXIS " # add chart to the sheet # the top-left corner of a chart # is anchored to cell E2 . sheet.add_chart(chart, "E2" ) # save the file wb.save( "bubbleChart.xlsx" ) |
输出： ![图片[1]-Python |使用openpyxl模块| Set–2在excel表格中绘制图表-yiteyi-C++库](https://www.yiteyi.com/wp-content/uploads/geeks/geeks_openpyxl_chart1.png)

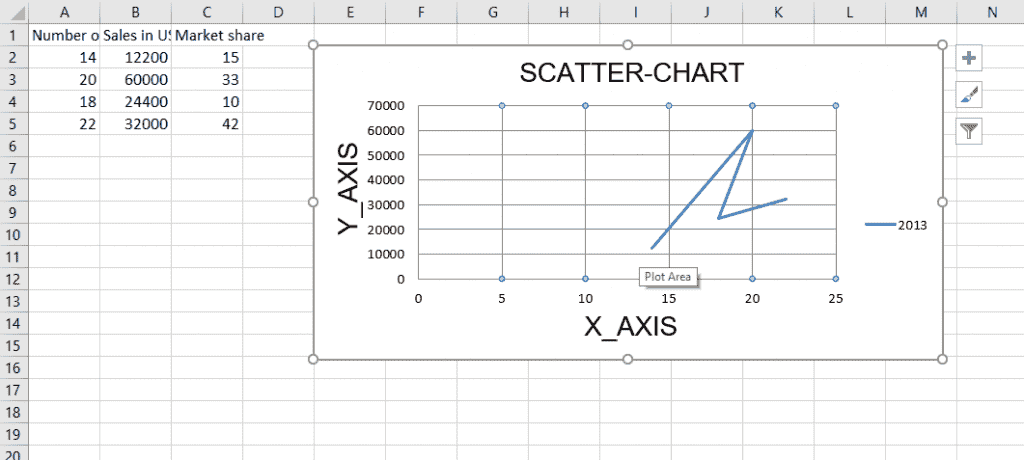

代码#2 ：绘制散点图
散点图或xy图类似于某些折线图。要在excel工作表上绘制散点图，请使用openpyxl中的散点图类。图表子模块。
# import openpyxl module import openpyxl # import ScatterChart, Reference, Series # class from openpyxl.chart sub_module from openpyxl.chart import ScatterChart, Reference, Series # Call a Workbook() function of openpyxl # to create a new blank Workbook object wb = openpyxl.Workbook() # Get workbook active sheet # from the active attribute. sheet = wb.active rows = [ ( "Number of Products" , "Sales in USD" , "Market share" ), ( 14 , 12200 , 15 ), ( 20 , 60000 , 33 ), ( 18 , 24400 , 10 ), ( 22 , 32000 , 42 ), ] # write content of each row in 1st, 2nd and 3rd # column of the active sheet respectively . for row in rows: sheet.append(row) # Create object of ScatterChart class chart = ScatterChart() # create data for plotting xvalues = Reference(sheet, min_col = 1 , min_row = 2 , max_row = 5 ) yvalues = Reference(sheet, min_col = 2 , min_row = 2 , max_row = 5 ) size = Reference(sheet, min_col = 3 , min_row = 2 , max_row = 5 ) # create a 1st series of data series = Series(values = yvalues, xvalues = xvalues, zvalues = size, title = "2013" ) # add series data to the chart object chart.series.append(series) # set the title of the chart chart.title = " SCATTER-CHART " # set the title of the x-axis chart.x_axis.title = " X_AXIS " # set the title of the y-axis chart.y_axis.title = " Y_AXIS " # add chart to the sheet # the top-left corner of a chart # is anchored to cell E2 . sheet.add_chart(chart, "E2" ) # save the file wb.save( " ScatterChart.xlsx" ) |
输出： ![图片[2]-Python |使用openpyxl模块| Set–2在excel表格中绘制图表-yiteyi-C++库](https://www.yiteyi.com/wp-content/uploads/geeks/geeks_openpyxl_chart2-1024x460.png)

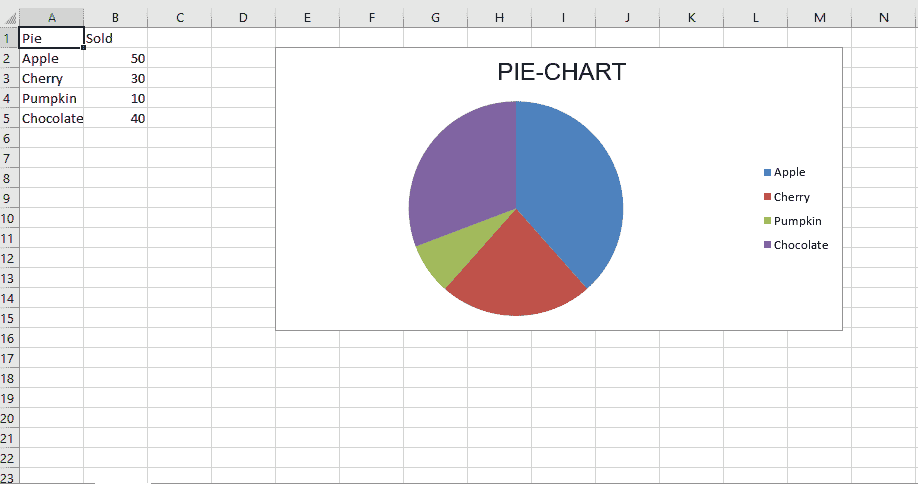

代码#3 ：绘制饼图
饼图将数据绘制为一个圆的切片，每个切片代表整个圆的百分比。切片以顺时针方向绘制，0°位于圆的顶部。饼图只能获取单个系列的数据。
要在excel工作表上绘制饼图，请使用openpyxl中的PieChart类。图表子模块。
# import openpyxl module import openpyxl # import PieChart, Reference class # from openpyxl.chart sub_module from openpyxl.chart import PieChart, Reference # Call a Workbook() function of openpyxl # to create a new blank Workbook object wb = openpyxl.Workbook() # Get workbook active sheet # from the active attribute. sheet = wb.active datas = [ [ 'Pie' , 'Sold' ], [ 'Apple' , 50 ], [ 'Cherry' , 30 ], [ 'Pumpkin' , 10 ], [ 'Chocolate' , 40 ], ] # write content of each row in 1st, 2nd and 3rd # column of the active sheet respectively . for row in datas: sheet.append(row) # Create object of PieChart class chart = PieChart() # create data for plotting labels = Reference(sheet, min_col = 1 , min_row = 2 , max_row = 5 ) data = Reference(sheet, min_col = 2 , min_row = 1 , max_row = 5 ) # adding data to the Pie chart object chart.add_data(data, titles_from_data = True ) # set labels in the chart object chart.set_categories(labels) # set the title of the chart chart.title = " PIE-CHART " # add chart to the sheet # the top-left corner of a chart # is anchored to cell E2 . sheet.add_chart(chart, "E2" ) # save the file wb.save( " PieChart.xlsx" ) |
输出： ![图片[3]-Python |使用openpyxl模块| Set–2在excel表格中绘制图表-yiteyi-C++库](https://www.yiteyi.com/wp-content/uploads/geeks/geeks_openpyxl_chart3.png)

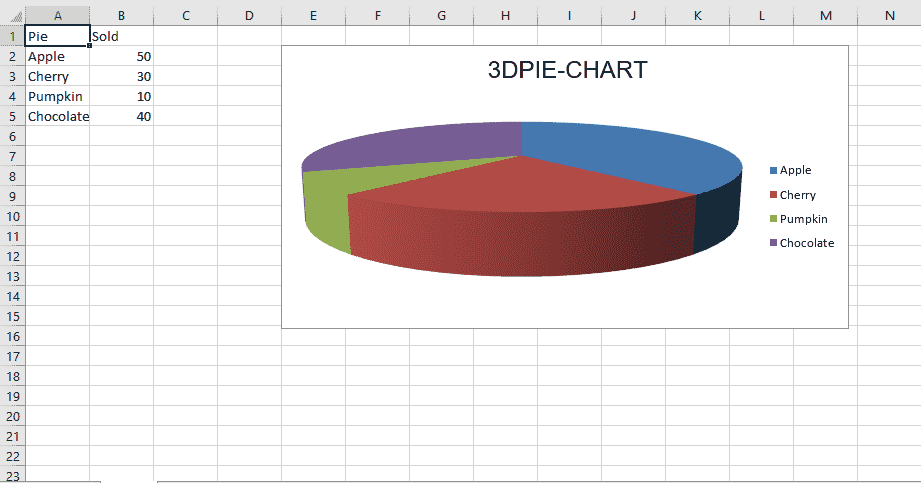

代码#4 ：绘制条形图
要在excel工作表上绘制3D饼图，请使用openpyxl中的PieChart3D类。图表子模块。
# import openpyxl module import openpyxl # import PieChart3D, Reference class # from openpyxl.chart sub_module from openpyxl.chart import PieChart3D, Reference # Call a Workbook() function of openpyxl # to create a new blank Workbook object wb = openpyxl.Workbook() # Get workbook active sheet # from the active attribute. sheet = wb.active datas = [ [ 'Pie' , 'Sold' ], [ 'Apple' , 50 ], [ 'Cherry' , 30 ], [ 'Pumpkin' , 10 ], [ 'Chocolate' , 40 ], ] # write content of each row in 1st, 2nd and 3rd # column of the active sheet respectively . for row in datas: sheet.append(row) # Create object of PiChart3D class chart = PieChart3D() # create data for plotting labels = Reference(sheet, min_col = 1 , min_row = 2 , max_row = 5 ) data = Reference(sheet, min_col = 2 , min_row = 1 , max_row = 5 ) # adding data to the Pie chart object chart.add_data(data, titles_from_data = True ) # set labels in the chart object chart.set_categories(labels) # set the title of the chart chart.title = " 3DPIE-CHART " # add chart to the sheet # the top-left corner of a chart # is anchored to cell E2 . sheet.add_chart(chart, "E2" ) # save the file wb.save( " 3DPieChart.xlsx" ) |
输出： ![图片[4]-Python |使用openpyxl模块| Set–2在excel表格中绘制图表-yiteyi-C++库](https://www.yiteyi.com/wp-content/uploads/geeks/geeks_openpyxl_chart4.png)
