C语言中的moverel（）函数-yiteyi-C++库

头文件显示图形。h包含 moverel（） 函数，将一个点从当前位置（x_pos1，y_pos1）移动到距离当前位置相对距离（x，y）的点，然后将当前位置向前移动（x，y）。注： getx 和 活泼的 可用于查找当前位置。

null

语法：

moverel(int x, int y);

The end position is calculated as :
x_pos2 = x_pos1 + x;
y_pos2 = y_pos1 + y;

例如：

Input : x_pos1 = 0, y_pos1 =0, x = 200, y = 100
Output :

Input : x_pos1 = 100, y_pos1 = 150, x = 150, y = 60
Output :

案例1： 当前位置位于原点时，即（0，0）

下面是moverel（）函数在C中的实现：

                     // C Implementation for moverel()
                     #include <graphics.h>
                     #include<stdio.h>

                     // driver code
                     int                               main()
                     {
                                         // gm is Graphics mode which is
                                         // a computer display mode that
                                         // generates image using pixels.
                                         // DETECT is a macro defined in
                                         // "graphics.h" header file
                                         int                               gd = DETECT, gm;
                                         char                               arr[100];

                                         // initgraph initializes the
                                         // graphics system by loading a
                                         // graphics driver from disk
                                         initgraph(&gd, &gm,                               ""                               );

                                         // moverel function
                                         moverel(200, 100);

                                         // sprintf stands for “String print”.
                                         // Instead of printing on console,
                                         // it store output on char buffer
                                         // which are specified in sprintf
                                         sprintf                               (arr,                               "Current x position = %d and "
                                         "y position = %d"                               ,getx(), gety());

                                         // outtext function displays
                                         // text at current position.
                                         outtextxy(100, 150, arr);

                                         getch();

                                         // closegraph function closes the
                                         // graphics mode and deallocates
                                         // all memory allocated by
                                         // graphics system .
                                         closegraph();

                                         return                               0;
                     }

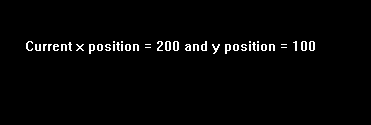

输出：

案例2： 当当前位置不是原点（100150）时。

下面是moverel（）函数在C中的实现：

                     // C Implementation for moverel()
                     #include <graphics.h>
                     #include<stdio.h>

                     // driver code
                     int                               main()
                     {
                                         // gm is Graphics mode which is
                                         // a computer display mode that
                                         // generates image using pixels.
                                         // DETECT is a macro defined in
                                         // "graphics.h" header file
                                         int                               gd = DETECT, gm;
                                         char                               arr[100];

                                         // initgraph initializes the
                                         // graphics system by loading a
                                         // graphics driver from disk
                                         initgraph(&gd, &gm,                               ""                               );

                                         // moveto function to change
                                         // initial position
                                         moveto(100, 150);

                                         // moverel function
                                         moverel(150, 60);

                                         // sprintf stands for “String print”.
                                         // Instead of printing on console,
                                         // it store output on char buffer
                                         // which are specified in sprintf
                                         sprintf                               (arr,                               "Current x position = %d and "
                                         "y position = %d"                               ,getx(), gety());

                                         // outtext function displays
                                         // text at current position.
                                         outtextxy(100, 150, arr);

                                         getch();

                                         // closegraph function closes the
                                         // graphics mode and deallocates
                                         // all memory allocated by
                                         // graphics system .
                                         closegraph();

                                         return                               0;
                     }

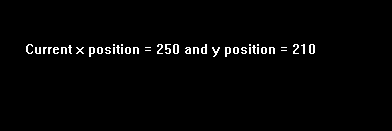

输出：
