简单球类游戏的OpenGL程序-yiteyi-C++库

先决条件—— OpenGL OpenGL是一种用于绘制2D和3D矢量图形的跨语言、跨平台API。使用这个，我们可以制作很多设计和动画。下面是一个使用 OpenGL . 描述： 在这种情况下，一个球从中间开始移动，并在开始时向上向左移动。但是，然后它与墙壁相撞，改变方向，但速度保持不变。因此，在向下的方向上，它应该被捕捉到一个矩形上（能够在水平方向上移动），以便继续。 在Ubuntu操作系统上工作：

null

gcc filename.c -lGL -lGLU -lglut -lm where filename.c is the name of the filewith which this program is saved.

推荐：请尝试你的方法 {IDE} 首先，在进入解决方案之前。

C

                         // C program to illustrate OpenGL game
                         #include<stdio.h>
                         #include<GL/glut.h>
                         #include<math.h>
                         #define pi 3.142857

                         // Global Declaration
                         // c and d tracks the number of time 'b' and 'n' pressed respectively
                         // left and right indicates leftmost and rightmost index of movable rectangle
                         int                                     c = 0, d = 0, left = 0, right = 0;
                         int                                     m = 0, j = 1, flag1 = 0, l = 1, flag2 = 0, n = 0, score = 0, count = 1;

                         // Initialization function
                         void                                     myInit (                                     void                                     )
                         {
                                                 // Reset background color with white (since all three argument is 1.0)
                                                 glClearColor(1.0, 1.0, 1.0, 0.0);

                                                 // Set picture color to red (in RGB model)
                                                 // as only argument corresponding to R (Red) is 1.0 and rest are 0.0
                                                 glColor3f(1.0f, 0.0f, 0.0f);

                                                 // Set width of point to one unit
                                                 glPointSize(1.0);
                                                 glMatrixMode(GL_PROJECTION);
                                                 glLoadIdentity();

                                                 // Set window size in X- and Y- direction
                                                 gluOrtho2D(-620.0, 620.0, -340.0, 340.0);
                         }

                         // keyboard function : it gets active when button pressed
                         void                                     keyboard(unsigned                                     char                                     key,                                     int                                     x,                                     int                                     y)
                         {
                                                 left = -200 + 200 * (d - c);
                                                 right = 200 + 200 * (d - c);

                                                 // if leftmost index of window is hit
                                                 // then rectangle will not move to left on further pressing of b
                                                 // only it will move to right on pressing n
                                                 if                                     (left == -600)
                                                 {
                                                 // '110' -> Ascii value of 'n'
                                                 // so d is incremented when n is pressed
                                                 if                                     (key == 110)
                                                 d++;
                                                 }
                                                 // if rightmost index of window is hit
                                                 // then rectangle will not move to right on further pressing of n
                                                 // only it will move to left on pressing b
                                                 else                                     if                                     (right == 600)
                                                 {
                                                 // '98' -> Ascii value of 'b'
                                                 // so c is incremented when b is pressed
                                                 if                                     (key == 98)
                                                 c++;
                                                 }
                                                 // when rectangle is in middle, then it will move into both
                                                 // direction depending upon pressed key
                                                 else
                                                 {
                                                 if                                     (key == 98)
                                                 c++;
                                                 if                                     (key == 110)
                                                 d++;
                                                 }
                                                 glutPostRedisplay();
                         }

                         void                                     myDisplay(                                     void                                     )
                         {
                                                 // x and y keeps point on circumference of circle
                                                 int                                     x, y, k;
                                                 // outer 'for loop' is to for making motion in ball
                                                 for                                     (k = 0; k <= 400; k += 5)
                                                 {
                                                 glClear(GL_COLOR_BUFFER_BIT);
                                                 glBegin(GL_LINE_STRIP);
                                                 // i keeps track of angle
                                                 float                                     i = 0;
                                                 // change in m denotes motion in vertical direction and
                                                 // change in n denotes motion in horizontal direction
                                                 m = m + 6;
                                                 n = n + 4;
                                                 // drawing of circle centre at (0, 12) iterated up to 2*pi, i.e., 360 degree
                                                 while                                     (i <= 2 * pi)
                                                 {
                                                 y = 12 + 20 *                                     cos                                     (i);
                                                 x = 20 *                                     sin                                     (i);
                                                 i = i + 0.1;
                                                 // flag1 is 0 to show motion in upward direction and is 1 for downward direction
                                                 if                                     (m == 288 && flag1 == 0)
                                                 {
                                                 j = -1;
                                                 m = -288;
                                                 flag1 = 1;
                                                 score++;
                                                 }
                                                 if                                     (m == 288 && flag1 == 1)
                                                 {
                                                 j = 1;
                                                 m = -288;
                                                 flag1 = 0;
                                                 }
                                                 // flag2 is 0 to show motion in rightward direction and is 1 for leftward direction
                                                 if                                     (n == 580 && flag2 == 0)
                                                 {
                                                 l = -1;
                                                 n = -580;
                                                 flag2 = 1;
                                                 }
                                                 if                                     (n == 580 && flag2 == 1)
                                                 {
                                                 l = 1;
                                                 n = -580;
                                                 flag2 = 0;
                                                 }
                                                 // equation for desired motion of ball
                                                 glVertex2i((x - l * n), (y - j * m));
                                                 }
                                                 glEnd();

                                                 // these four points draws outer rectangle which determines window
                                                 glBegin(GL_LINE_LOOP);
                                                 glVertex2i(-600, -320);
                                                 glVertex2i(-600, 320);
                                                 glVertex2i(600, 320);
                                                 glVertex2i(600, -320);
                                                 glEnd();

                                                 // these four points draws smaller rectangle which is for catching ball
                                                 glBegin(GL_LINE_LOOP);
                                                 left = -200 + 200 * (d - c);
                                                 right = 200 + 200 * (d - c);
                                                 glVertex2i(left, -315);
                                                 glVertex2i(left, -295);
                                                 glVertex2i(right, -295);
                                                 glVertex2i(right, -315);
                                                 glEnd();

                                                 // following condition checks if falling ball is catched on rectangle or not
                                                 if                                     ((j * m) == 276)
                                                 {
                                                 if                                     ((left > ((-1 * l * n) + 20)) || (right < (-1 * l * n) - 20))
                                                 {
                                                 printf                                     ("Game Over !!!Your Score is :	%d", score);
                                                 exit                                     (0);
                                                 }
                                                 }
                                                 glutSwapBuffers();
                                                 }
                         }


                         // Driver Program
                         int                                     main (                                     int                                     argc,                                     char                                     ** argv)
                         {
                                                 glutInit(&argc, argv);

                                                 glutInitDisplayMode(GLUT_DOUBLE | GLUT_RGBA);
                                                 // Declares window size
                                                 glutInitWindowSize(1100, 600);

                                                 // Declares window position which is (0, 0)
                                                 // means lower left corner will indicate position (0, 0)
                                                 glutInitWindowPosition(0, 0);

                                                 // Name to window
                                                 glutCreateWindow("Game");

                                                 // keyboard function
                                                 glutKeyboardFunc(keyboard);
                                                 // Call to myInit()
                                                 myInit();
                                                 glutDisplayFunc(myDisplay);
                                                 glutMainLoop();
                         }

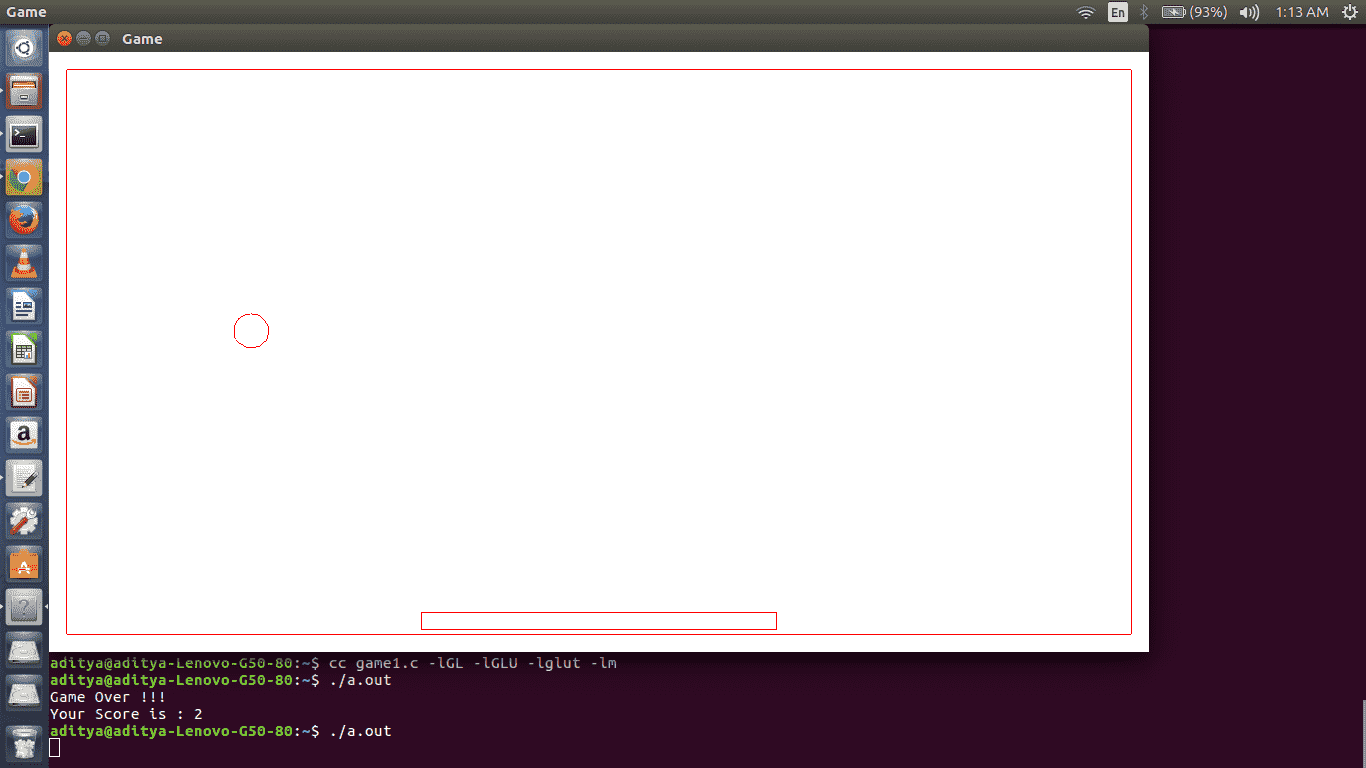

下面是动画的截图。这个截图是一个例子。实际上，球会朝着不同的方向移动，应该被捕捉到较小的矩形上。按小写键可以向左移动矩形 B 向右小写 N .但是，这可以通过更改键盘功能中的代码来更改，其中可以更改键的ASCII值。

图片[1]-简单球类游戏的OpenGL程序-yiteyi-C++库

本文由阿迪蒂亚·库马尔 .如果你喜欢GeekSforgek，并想贡献自己的力量，你也可以使用写极客。组织或者把你的文章寄去评论-team@geeksforgeeks.org.看到你的文章出现在Geeksforgeks主页上，并帮助其他极客。如果您发现任何不正确的地方，或者您想分享有关上述主题的更多信息，请写下评论。
