博弈论中的极小极大算法|集1(简介)

极小极大是一种 回溯 一种算法,用于决策和博弈论中,假设你的对手也在最佳状态下,为玩家找到最佳移动。它广泛应用于基于两人回合的游戏,如井字游戏、双陆棋、曼卡拉、国际象棋等。 在Minimax中,这两个参和者被称为最大化者和最小化者。这个 最大化器 努力获得尽可能高的分数,而 最小化 试着做相反的事情,得到尽可能低的分数。 每个董事会状态都有一个与之关联的值。在一个给定的状态下,如果最大化者占上风,那么董事会的分数将趋于某个正值。如果最小值在板状态中占上风,那么它将趋于负值。棋盘的值是通过一些启发式算法计算出来的,这些启发式算法对于每种类型的游戏都是唯一的。

null

例子: 考虑一个游戏,它有4个最终状态,到达最终状态的路径是从一个完美二叉树的根到4叶,如下所示。假设你是最大化的玩家,你有第一次移动的机会,也就是说,你在根,你的对手在下一个级别。 考虑到你的对手也能发挥最佳水平,作为一名最大化的球员,你会采取哪一步?

Game Theory  Minimax Algorithm

由于这是一个基于回溯的算法,它会尝试所有可能的移动,然后回溯并做出决定。

  • 最大化者向左:现在是最小化者转向。最小值现在可以在3和5之间选择。作为最小值,它肯定会在两者中选择最小值,即3
  • 最大化者右转:现在轮到最小化者了。最小值现在可以在2和9之间选择。他会选择2,因为它是两个值中最小的。

作为最大化者,你会选择更大的值,即3。因此,最大化器的最佳移动是向左移动,最佳值为3。

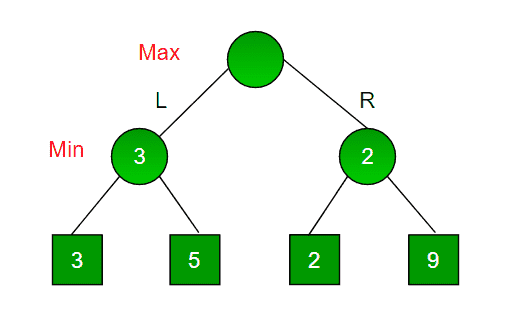

现在,游戏树如下所示:

Game Theory Minimax Algorithm1

当maximizer向左和向右移动时,上面的树显示了两个可能的分数。

注意:即使右边的子树上有一个值9,最小值也不会选择它。我们必须始终假定我们的对手打得最好。

下面是同样的实现。

C++

// A simple C++ program to find
// maximum score that
// maximizing player can get.
#include<bits/stdc++.h>
using namespace std;
// Returns the optimal value a maximizer can obtain.
// depth is current depth in game tree.
// nodeIndex is index of current node in scores[].
// isMax is true if current move is
// of maximizer, else false
// scores[] stores leaves of Game tree.
// h is maximum height of Game tree
int minimax( int depth, int nodeIndex, bool isMax,
int scores[], int h)
{
// Terminating condition. i.e
// leaf node is reached
if (depth == h)
return scores[nodeIndex];
//  If current move is maximizer,
// find the maximum attainable
// value
if (isMax)
return max(minimax(depth+1, nodeIndex*2, false , scores, h),
minimax(depth+1, nodeIndex*2 + 1, false , scores, h));
// Else (If current move is Minimizer), find the minimum
// attainable value
else
return min(minimax(depth+1, nodeIndex*2, true , scores, h),
minimax(depth+1, nodeIndex*2 + 1, true , scores, h));
}
// A utility function to find Log n in base 2
int log2( int n)
{
return (n==1)? 0 : 1 + log2(n/2);
}
// Driver code
int main()
{
// The number of elements in scores must be
// a power of 2.
int scores[] = {3, 5, 2, 9, 12, 5, 23, 23};
int n = sizeof (scores)/ sizeof (scores[0]);
int h = log2(n);
int res = minimax(0, 0, true , scores, h);
cout << "The optimal value is : " << res << endl;
return 0;
}


JAVA

// A simple java program to find maximum score that
// maximizing player can get.
import java.io.*;
class GFG {
// Returns the optimal value a maximizer can obtain.
// depth is current depth in game tree.
// nodeIndex is index of current node in scores[].
// isMax is true if current move is of maximizer, else false
// scores[] stores leaves of Game tree.
// h is maximum height of Game tree
static int minimax( int depth, int nodeIndex, boolean isMax,
int scores[], int h)
{
// Terminating condition. i.e leaf node is reached
if (depth == h)
return scores[nodeIndex];
// If current move is maximizer, find the maximum attainable
// value
if (isMax)
return Math.max(minimax(depth+ 1 , nodeIndex* 2 , false , scores, h),
minimax(depth+ 1 , nodeIndex* 2 + 1 , false , scores, h));
// Else (If current move is Minimizer), find the minimum
// attainable value
else
return Math.min(minimax(depth+ 1 , nodeIndex* 2 , true , scores, h),
minimax(depth+ 1 , nodeIndex* 2 + 1 , true , scores, h));
}
// A utility function to find Log n in base 2
static int log2( int n)
{
return (n== 1 )? 0 : 1 + log2(n/ 2 );
}
// Driver code
public static void main (String[] args) {
// The number of elements in scores must be
// a power of 2.
int scores[] = { 3 , 5 , 2 , 9 , 12 , 5 , 23 , 23 };
int n = scores.length;
int h = log2(n);
int res = minimax( 0 , 0 , true , scores, h);
System.out.println( "The optimal value is : " +res);
}
}
// This code is contributed by vt_m


C#

// A simple C# program to find maximum score that
// maximizing player can get.
using System;
public class GFG
{
// Returns the optimal value a maximizer can obtain.
// depth is current depth in game tree.
// nodeIndex is index of current node in scores[].
// isMax is true if current move is of maximizer, else false
// scores[] stores leaves of Game tree.
// h is maximum height of Game tree
static int minimax( int depth, int nodeIndex, bool isMax,
int []scores, int h)
{
// Terminating condition. i.e leaf node is reached
if (depth == h)
return scores[nodeIndex];
// If current move is maximizer, find the maximum attainable
// value
if (isMax)
return Math.Max(minimax(depth+1, nodeIndex*2, false , scores, h),
minimax(depth+1, nodeIndex*2 + 1, false , scores, h));
// Else (If current move is Minimizer), find the minimum
// attainable value
else
return Math.Min(minimax(depth+1, nodeIndex*2, true , scores, h),
minimax(depth+1, nodeIndex*2 + 1, true , scores, h));
}
// A utility function to find Log n in base 2
static int log2( int n)
{
return (n==1)? 0 : 1 + log2(n/2);
}
// Driver code
static public void Main ()
{
// The number of elements in scores must be
// a power of 2.
int []scores = {3, 5, 2, 9, 12, 5, 23, 23};
int n = scores.Length;
int h = log2(n);
int res = minimax(0, 0, true , scores, h);
Console.WriteLine( "The optimal value is : " +res);
}
}
// This code is contributed by ajit.


Python3

# A simple Python3 program to find
# maximum score that
# maximizing player can get
import math
def minimax (curDepth, nodeIndex,
maxTurn, scores,
targetDepth):
# base case : targetDepth reached
if (curDepth = = targetDepth):
return scores[nodeIndex]
if (maxTurn):
return max (minimax(curDepth + 1 , nodeIndex * 2 ,
False , scores, targetDepth),
minimax(curDepth + 1 , nodeIndex * 2 + 1 ,
False , scores, targetDepth))
else :
return min (minimax(curDepth + 1 , nodeIndex * 2 ,
True , scores, targetDepth),
minimax(curDepth + 1 , nodeIndex * 2 + 1 ,
True , scores, targetDepth))
# Driver code
scores = [ 3 , 5 , 2 , 9 , 12 , 5 , 23 , 23 ]
treeDepth = math.log( len (scores), 2 )
print ( "The optimal value is : " , end = "")
print (minimax( 0 , 0 , True , scores, treeDepth))
# This code is contributed
# by rootshadow


Javascript

<script>
// Javascript program to find maximum score that
// maximizing player can get.
// Returns the optimal value a maximizer can obtain.
// depth is current depth in game tree.
// nodeIndex is index of current node in scores[].
// isMax is true if current move is of maximizer, else false
// scores[] stores leaves of Game tree.
// h is maximum height of Game tree
function minimax(depth, nodeIndex, isMax,
scores, h)
{
// Terminating condition. i.e leaf node is reached
if (depth == h)
return scores[nodeIndex];
// If current move is maximizer, find the maximum attainable
// value
if (isMax)
return Math.max(minimax(depth+1, nodeIndex*2, false , scores, h),
minimax(depth+1, nodeIndex*2 + 1, false , scores, h));
// Else (If current move is Minimizer), find the minimum
// attainable value
else
return Math.min(minimax(depth+1, nodeIndex*2, true , scores, h),
minimax(depth+1, nodeIndex*2 + 1, true , scores, h));
}
// A utility function to find Log n in base 2
function log2(n)
{
return (n==1)? 0 : 1 + log2(n/2);
}
// Driver Code
// The number of elements in scores must be
// a power of 2.
let scores = [3, 5, 2, 9, 12, 5, 23, 23];
let n = scores.length;
let h = log2(n);
let res = minimax(0, 0, true , scores, h);
document.write( "The optimal value is : " +res);
</script>


输出:

The optimal value is:  12

本文的目的是通过一个简单的例子介绍Minimax。

  • 在上面的例子中,玩家只有两种选择。总的来说,可以有更多的选择。在这种情况下,我们需要重复所有可能的移动,并找到最大值/最小值。例如,在Tic-Tac-Toe中,第一个玩家可以做出9个可能的动作。
  • 在上面的例子中,分数(博弈树的叶子)被提供给我们。对于一个典型的游戏,我们需要导出这些值

我们很快就会用极小极大算法来覆盖Tic-Tac-Toe。 本文由 Akshay L.Aradhya。 如果你喜欢GeekSforgeks,并且想贡献自己的力量,你也可以写一篇文章,然后把你的文章邮寄给评论-team@geeksforgeeks.org.看到你的文章出现在Geeksforgeks主页上,并帮助其他极客。 如果您发现任何不正确的地方,或者您想分享有关上述主题的更多信息,请写评论
